Ready to Order, just like it says - select the size, backspace, bolt pattern, and finish of the wheel and “Click add to cart”.
(Please Note: Wheels in stock ship within 48 hrs. Wheels that have to be assembled will ship at a later date.)
Check Tech Info Tab For More Backspace And Weight Info
!! IMPORTANT!!
- 15" Accepts Mag Shank or 5/8” race studs

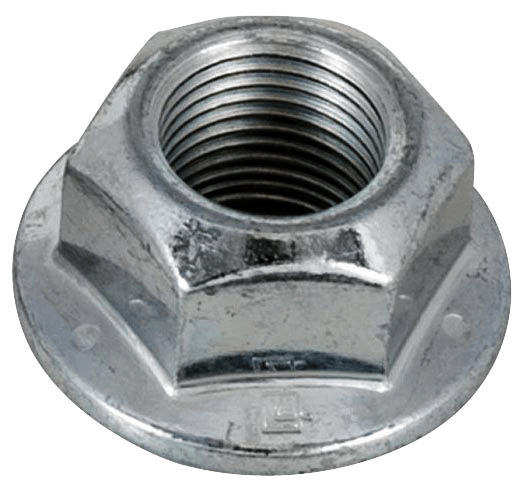

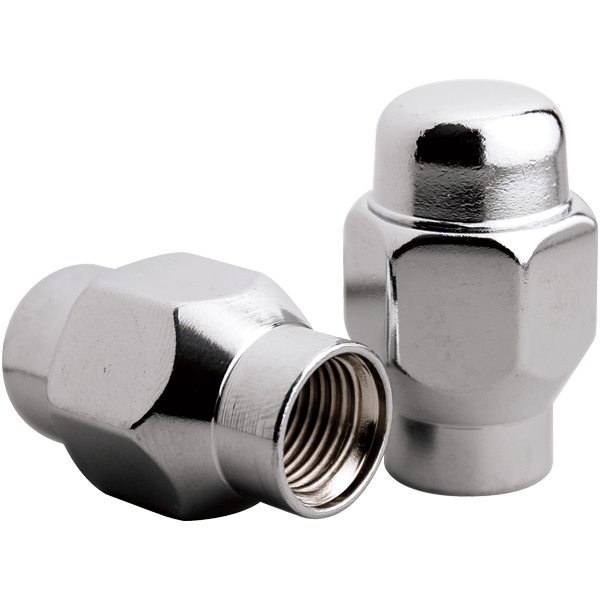

- The Win Lite 17" requires the use of conical seat lug nuts.
- 17x10F S550 wheels use conical seat 14mm lugs P/N LN1415
FEATURES:
- Forged 6061 T-6 Center For Strength And Lightweight
- Spun Aluminum Rim For Superior Strength And Trueness
- Recessed Bolt Pad For Additional Weight Savings
- SFI 15.1 Certification
- Tested To SAE J2530 Specification Ensures A Strong Safe Wheel
STANDARD WHEEL FINISHES:

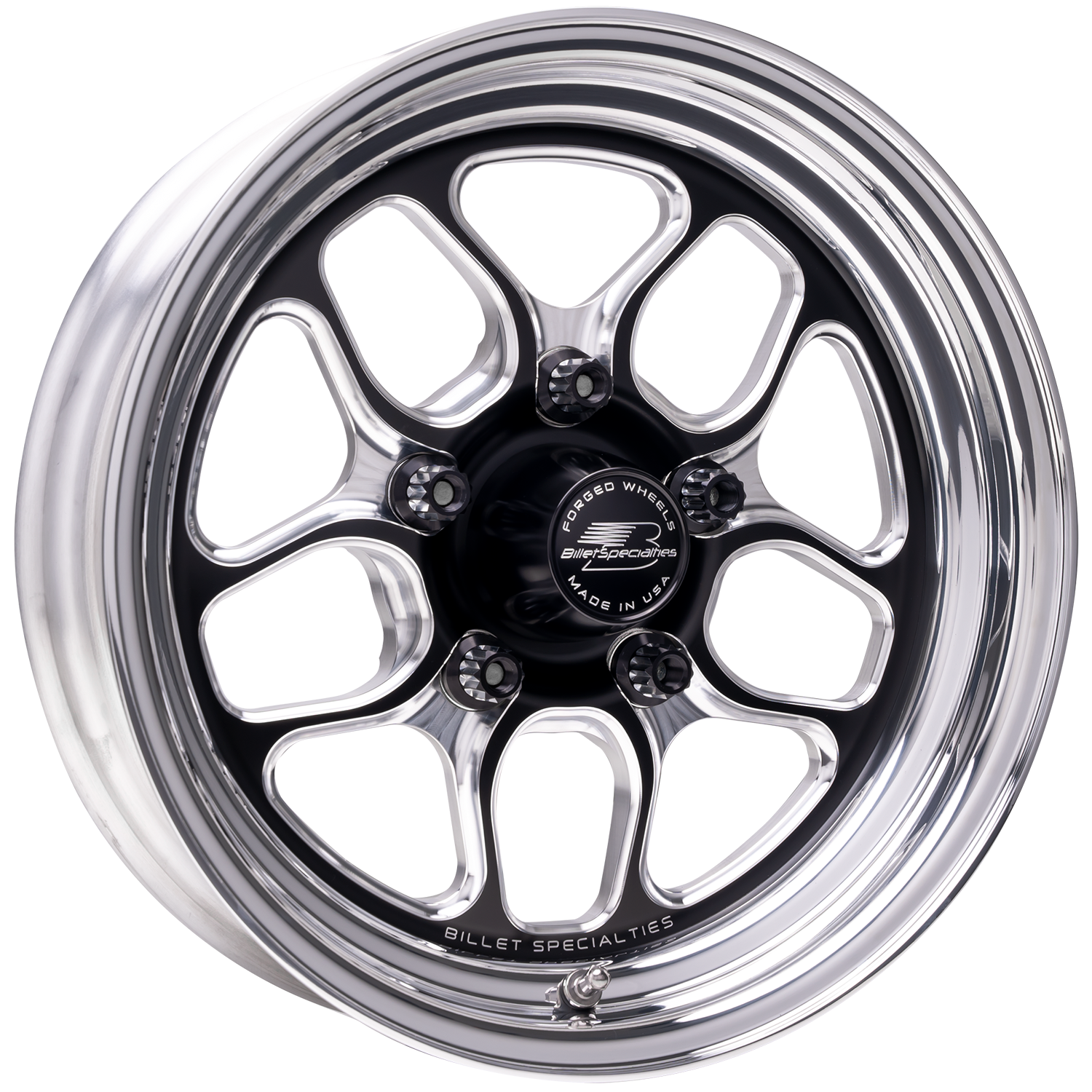

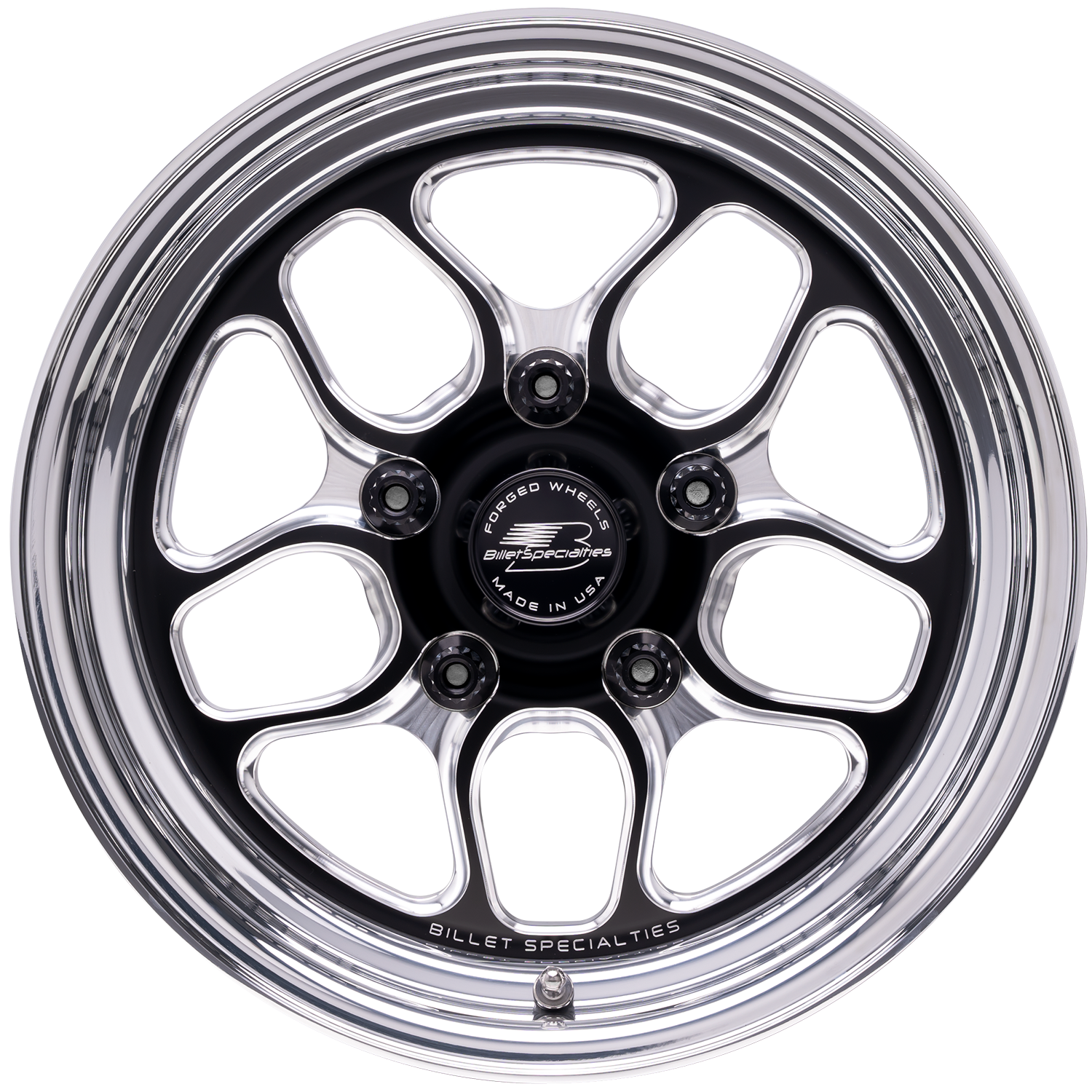

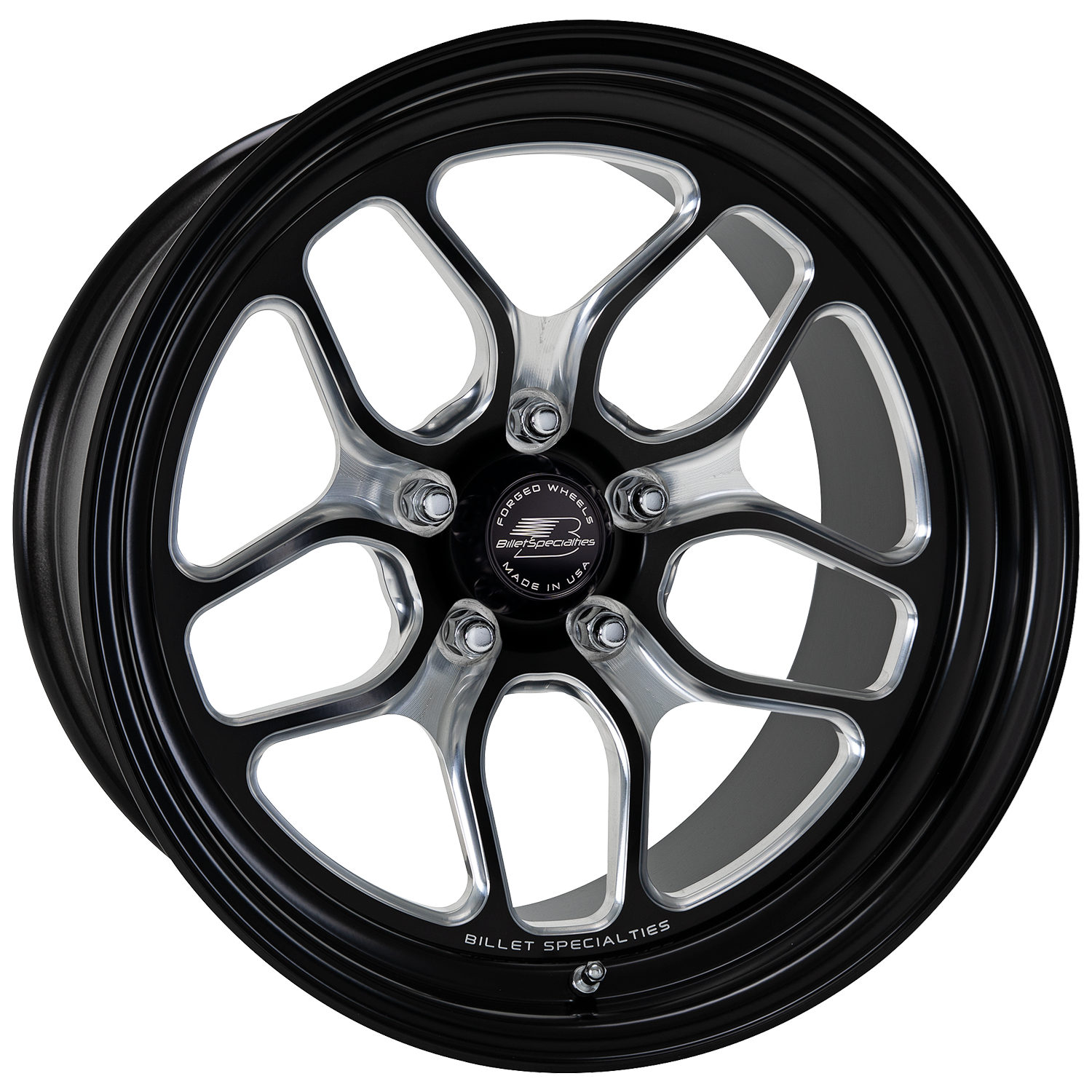

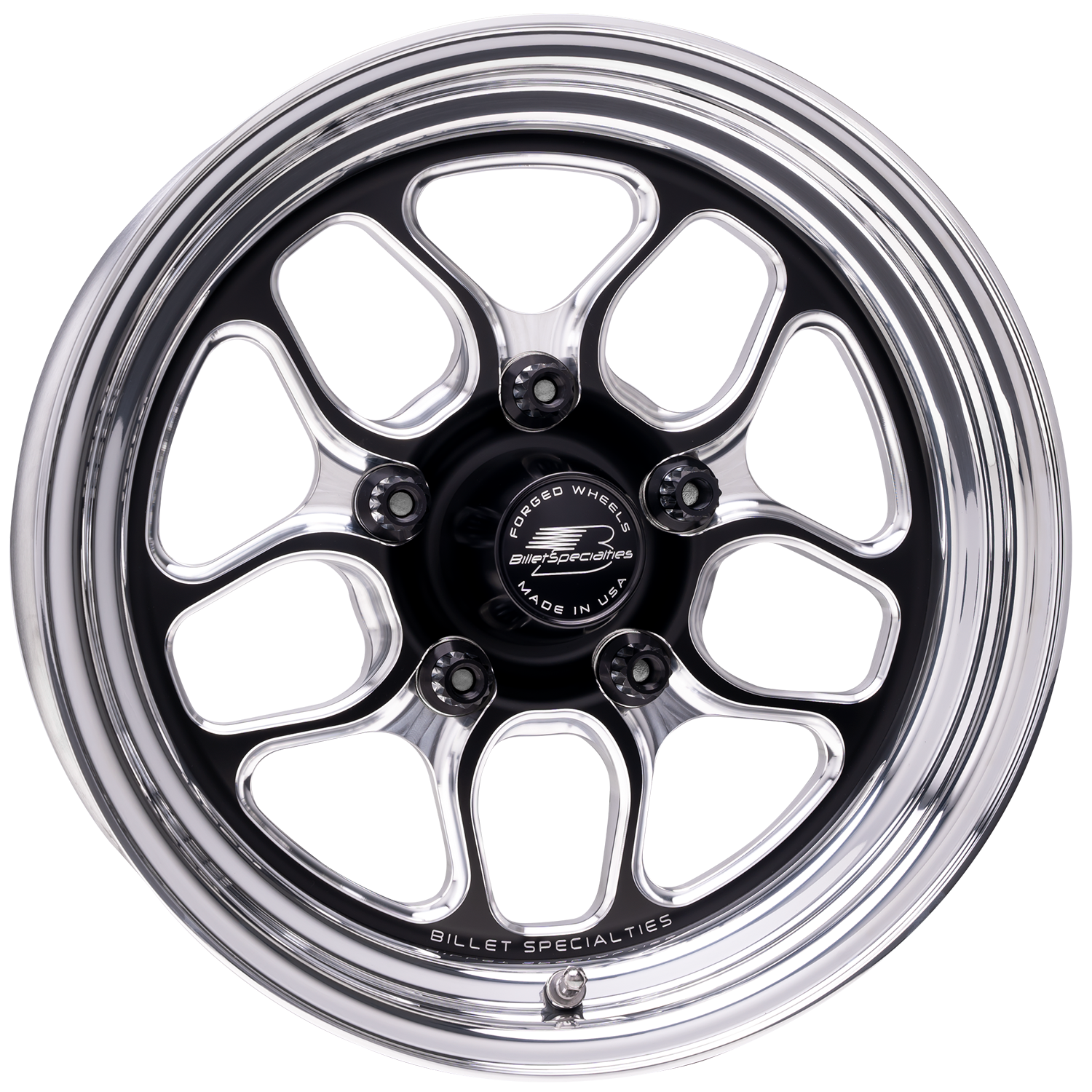

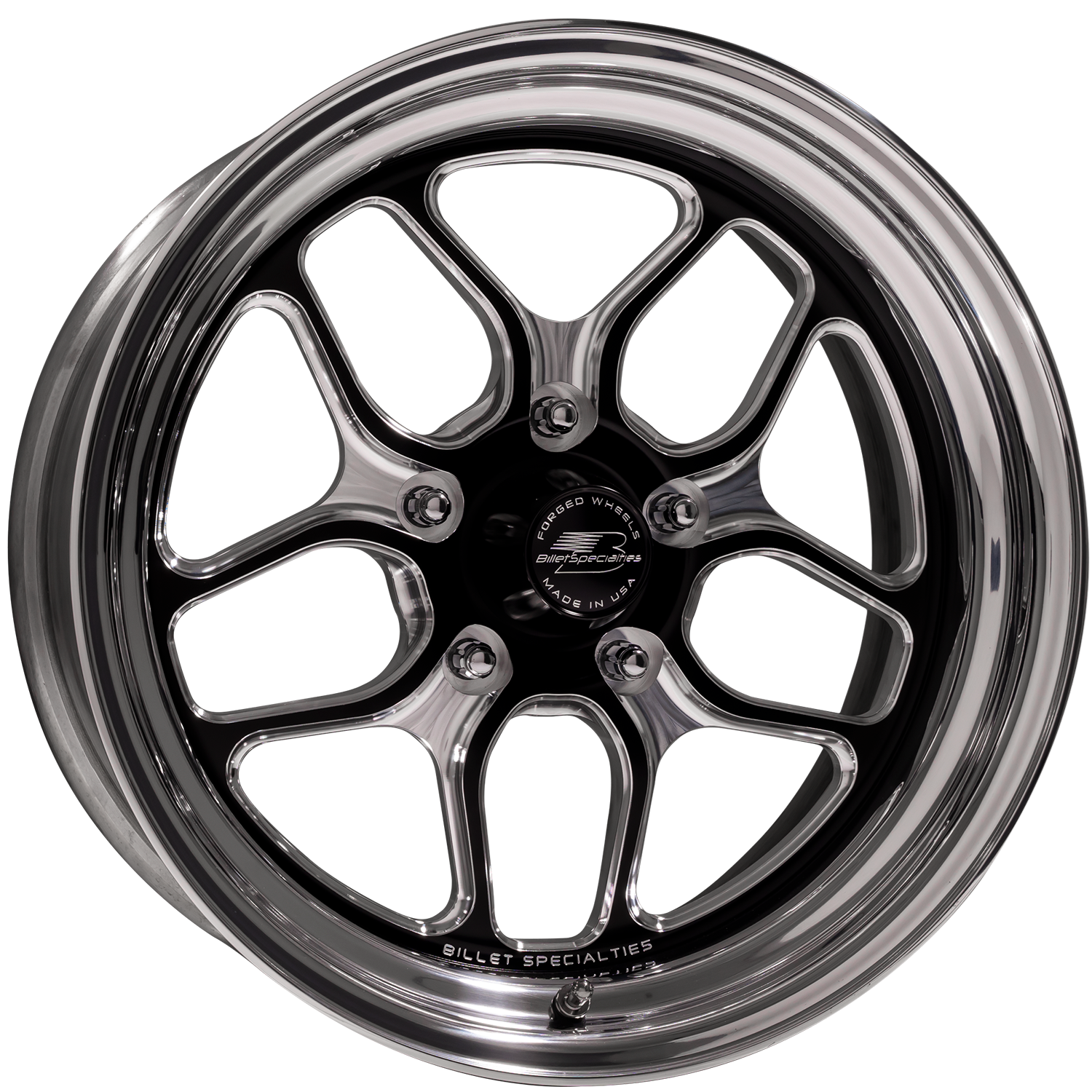

Black Finish
Center: Black anodized center with machine finish windows and recess.
Rim: Polished outer face. The back of the wheel is a raw machine finish.

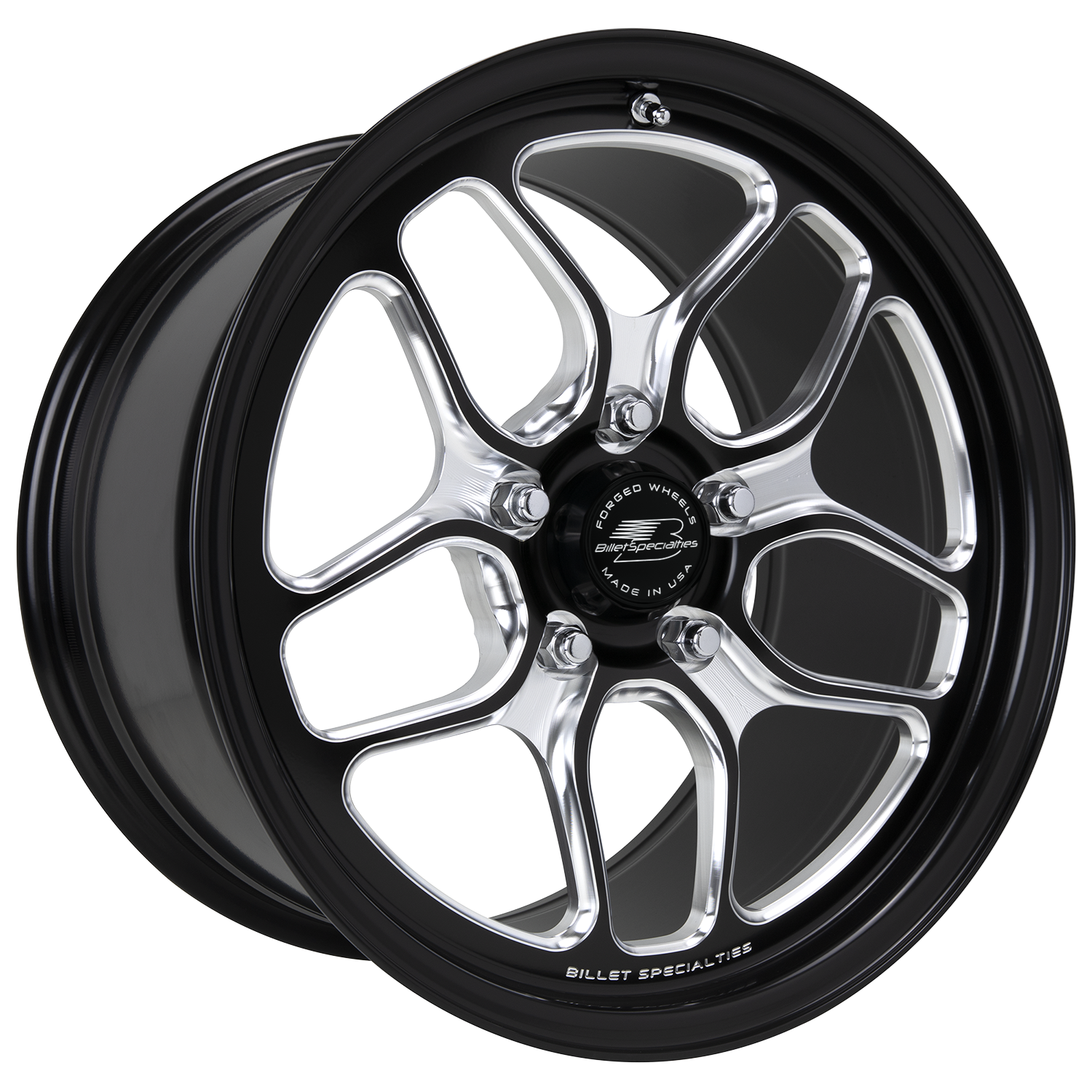

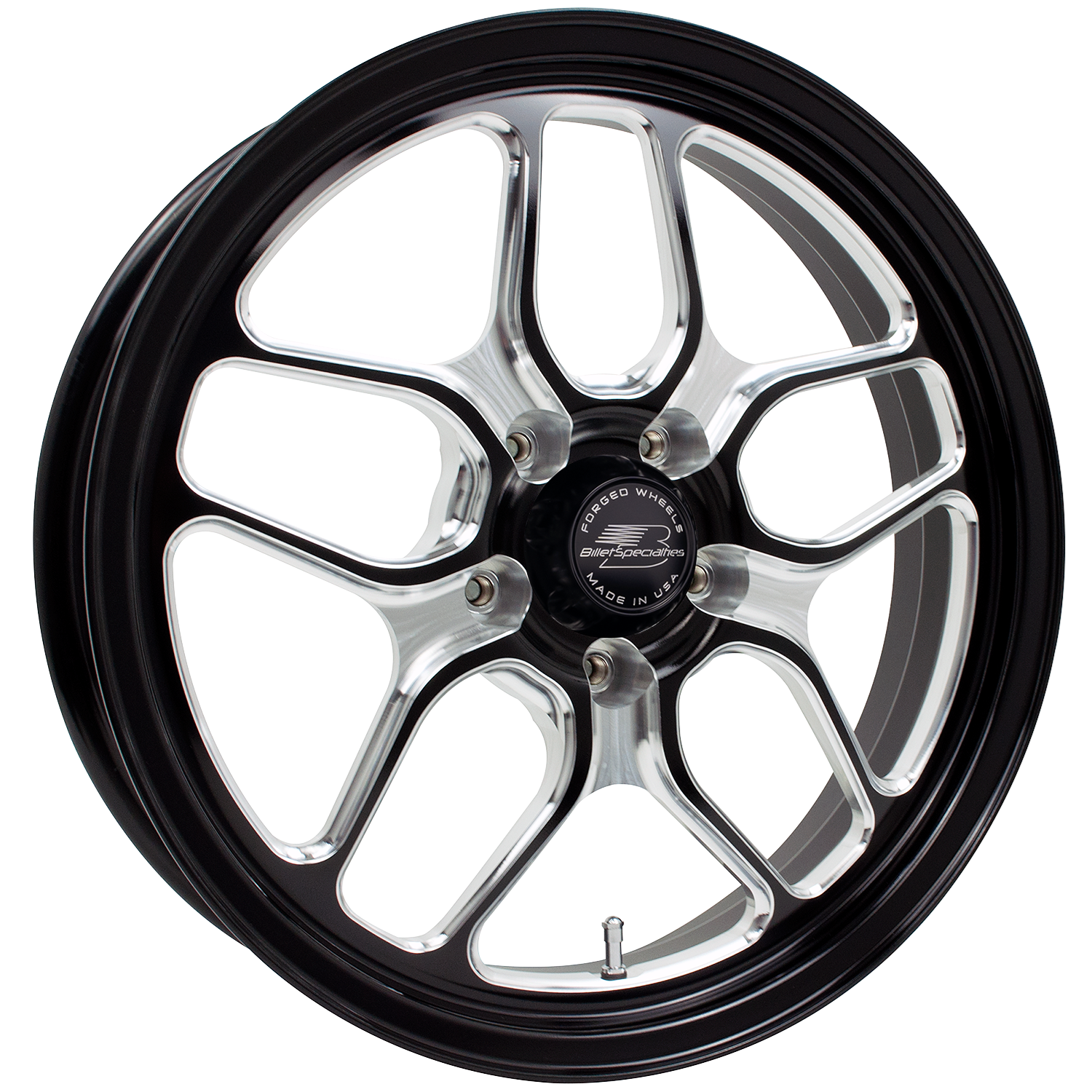

**NOTE: 17x4.5 & 17x10 SIZES ARE MONOBLOCK ONE PIECE WHEELS, RIM/BACK OF THE WHEEL IS BLACK-POWDER COATED.
17x4.5 & 17x10 BLACK FINISH RIMS ARE NOT POLISHED/RAW MACHINE

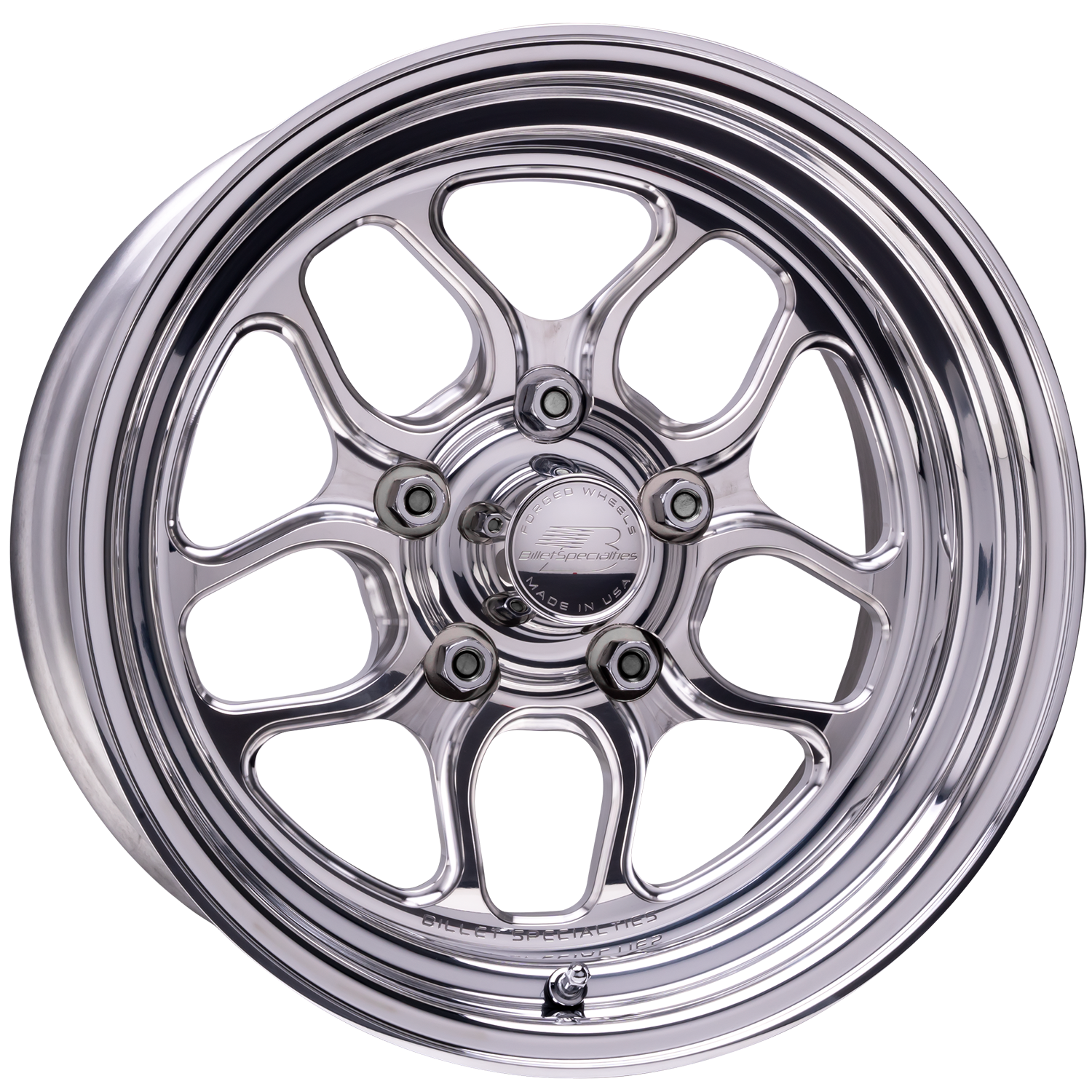

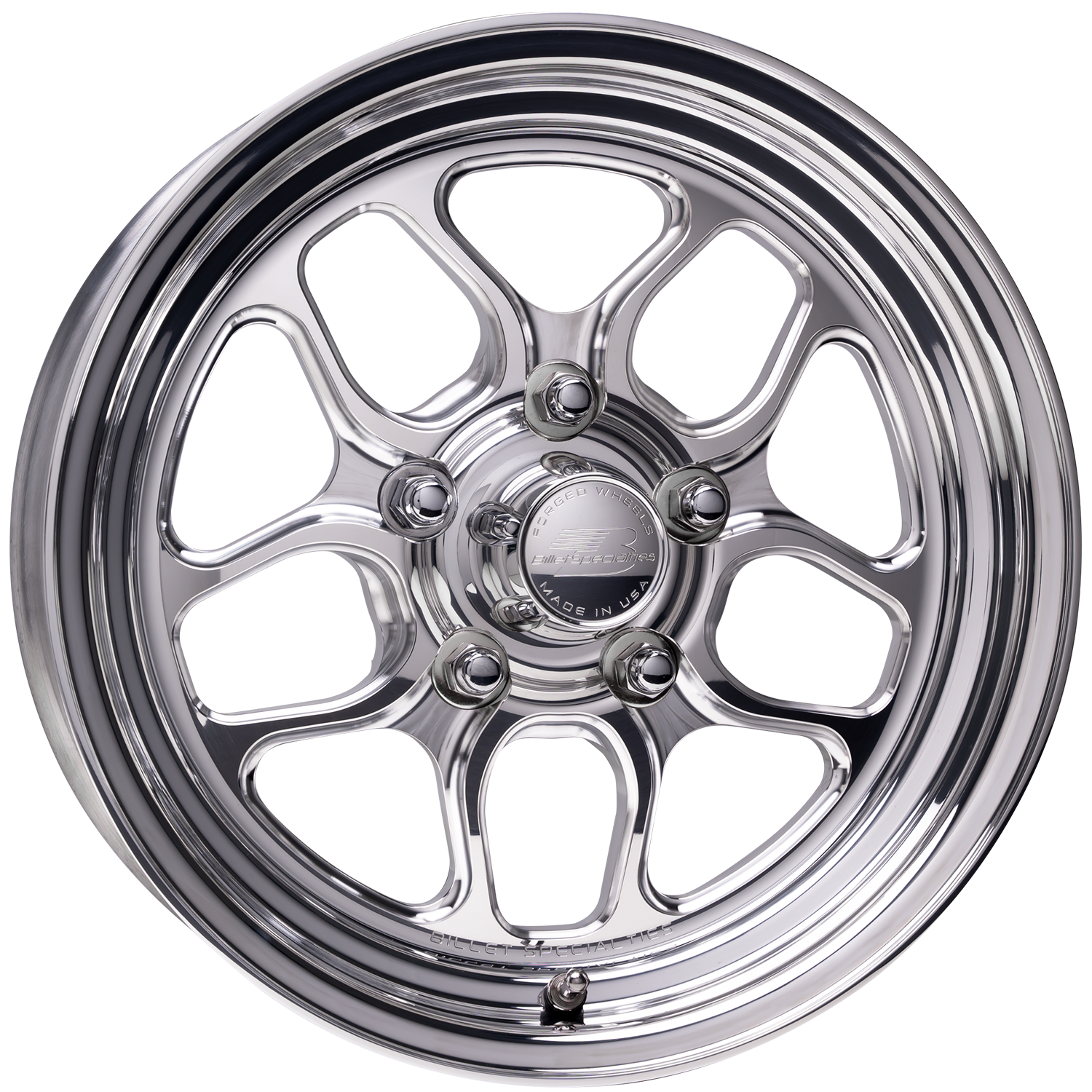

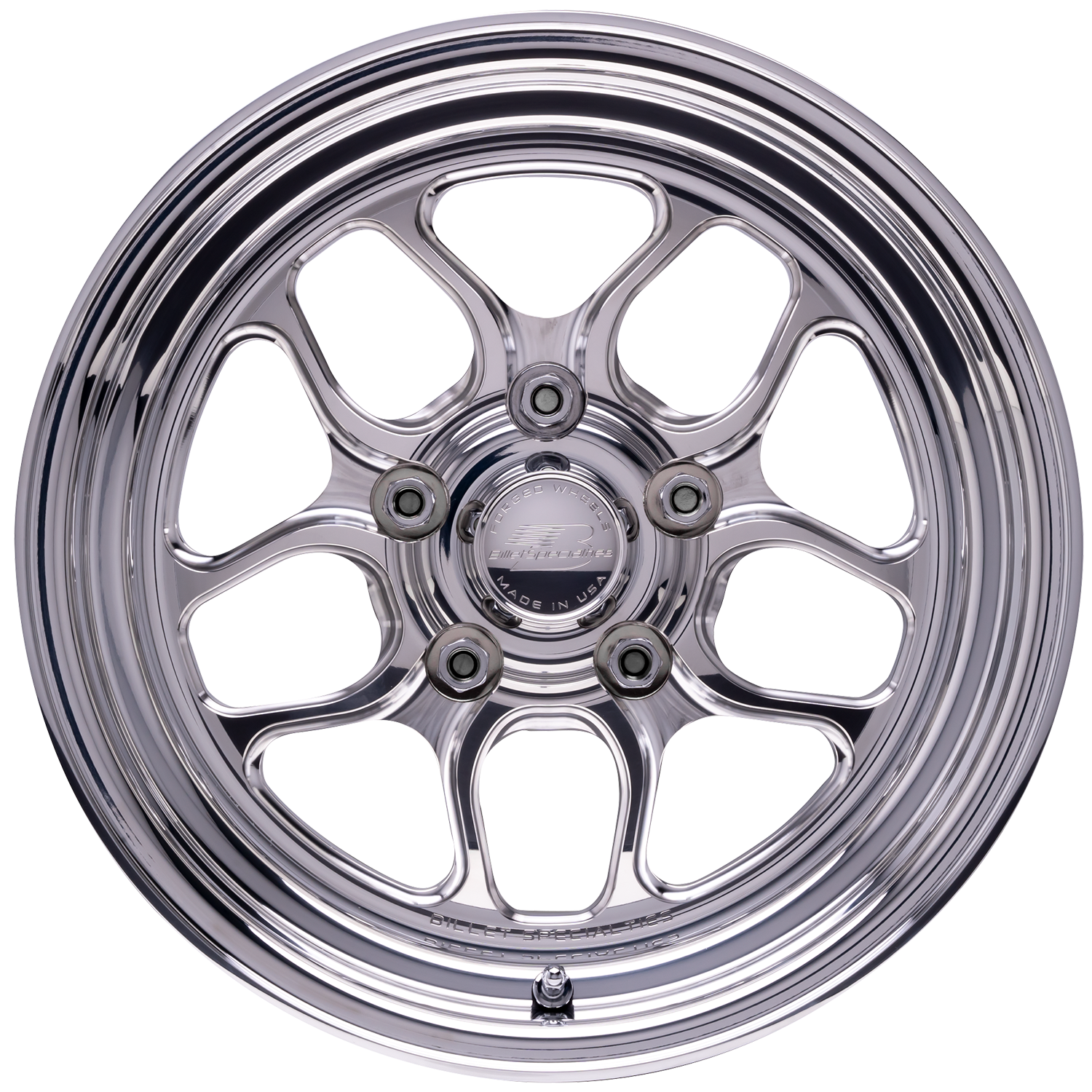

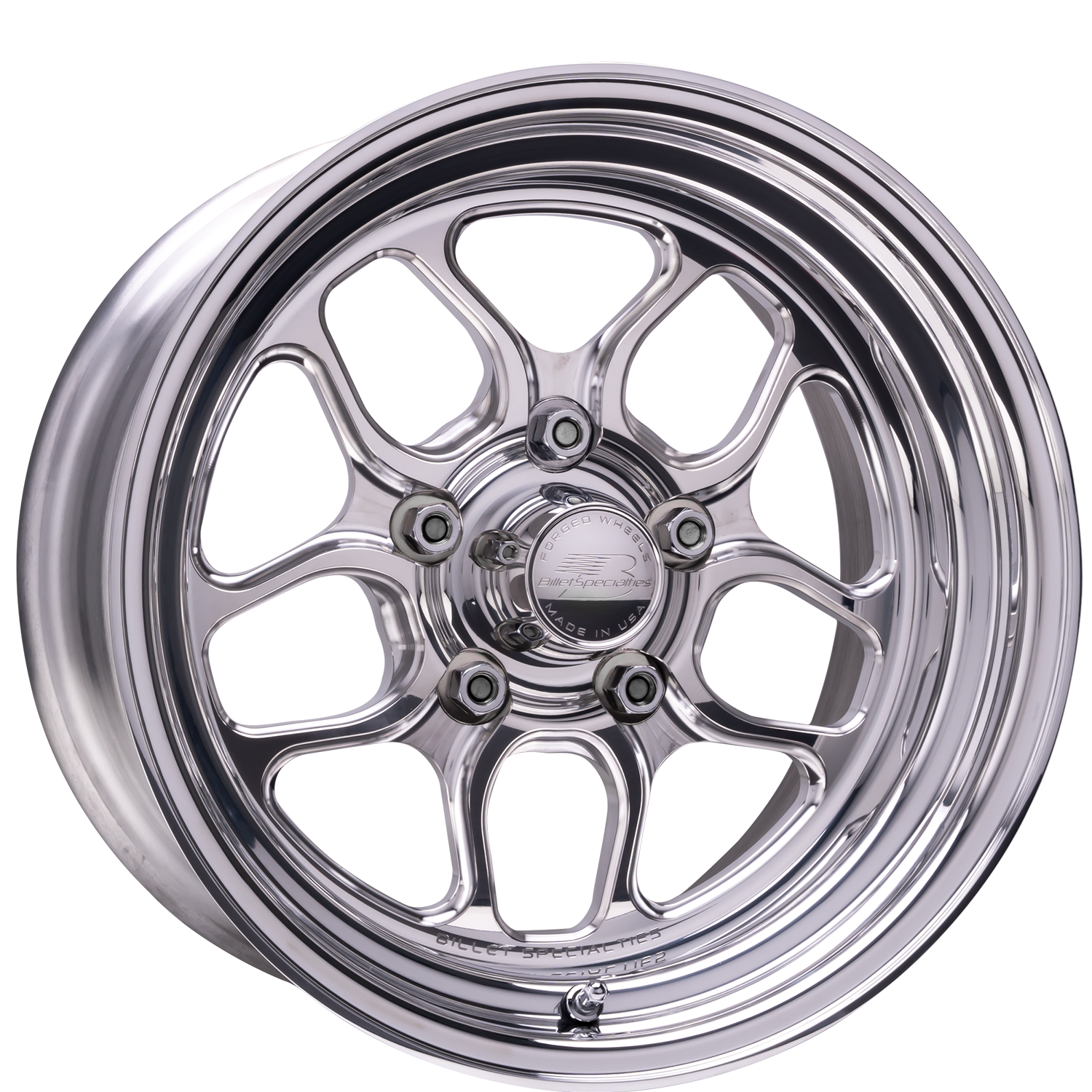

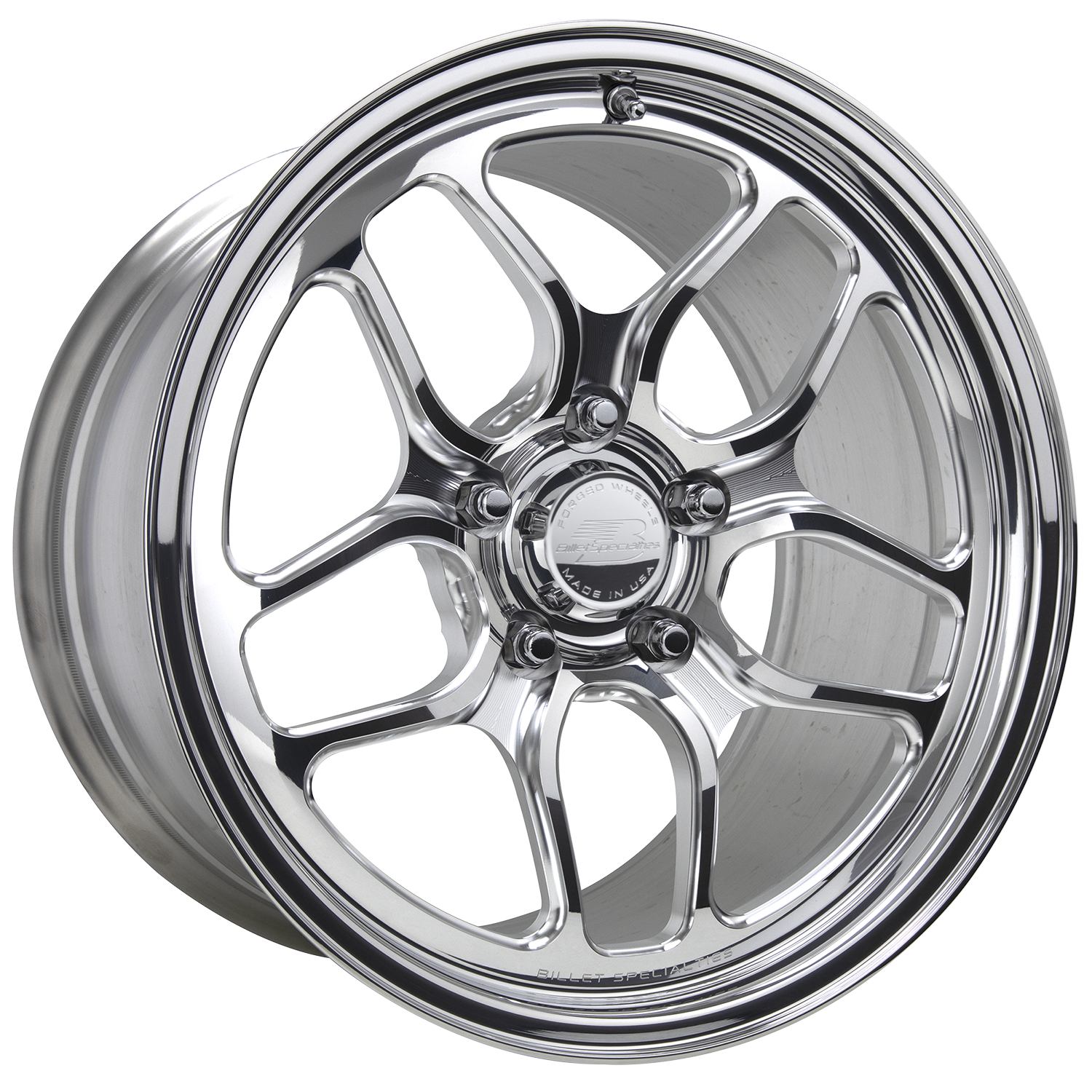

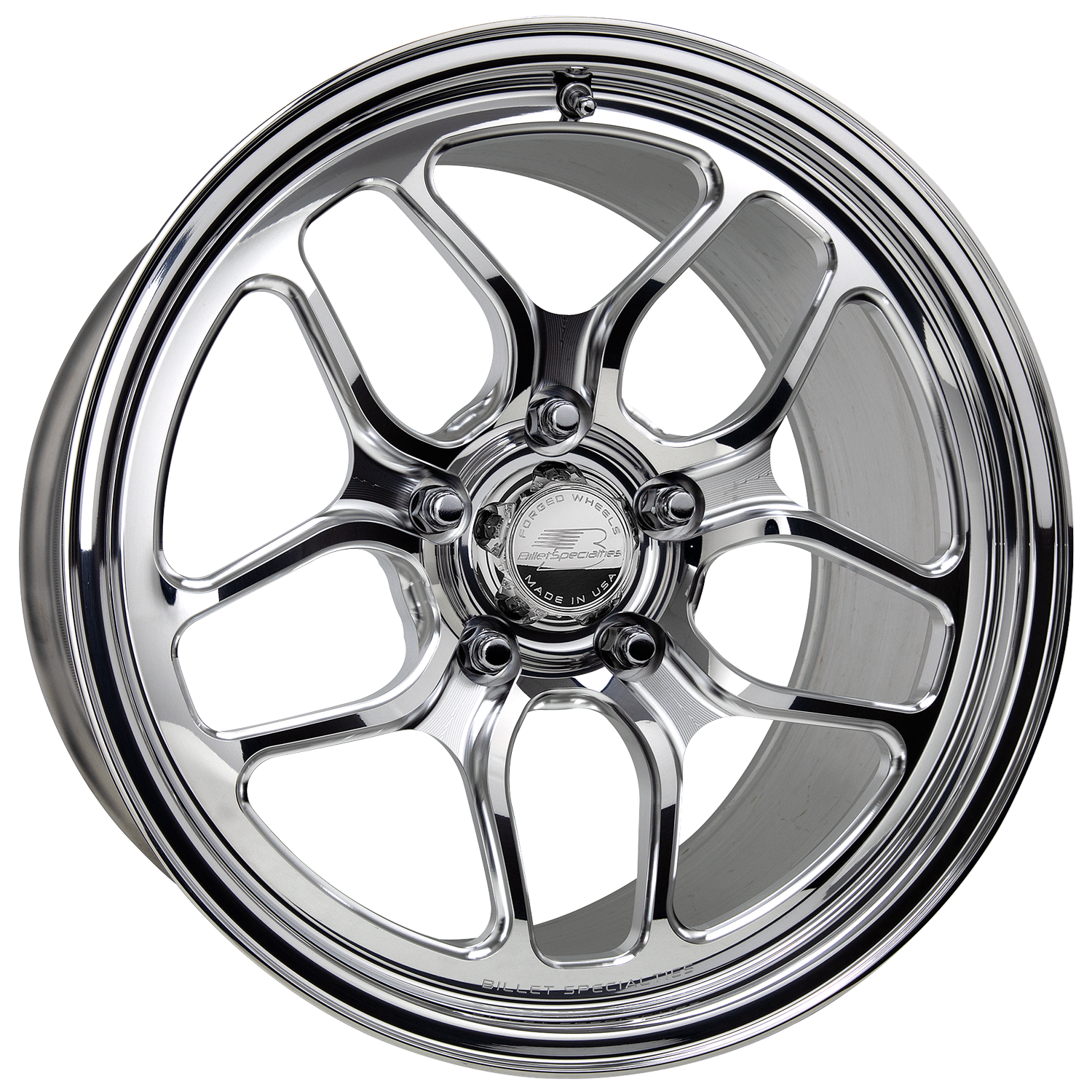

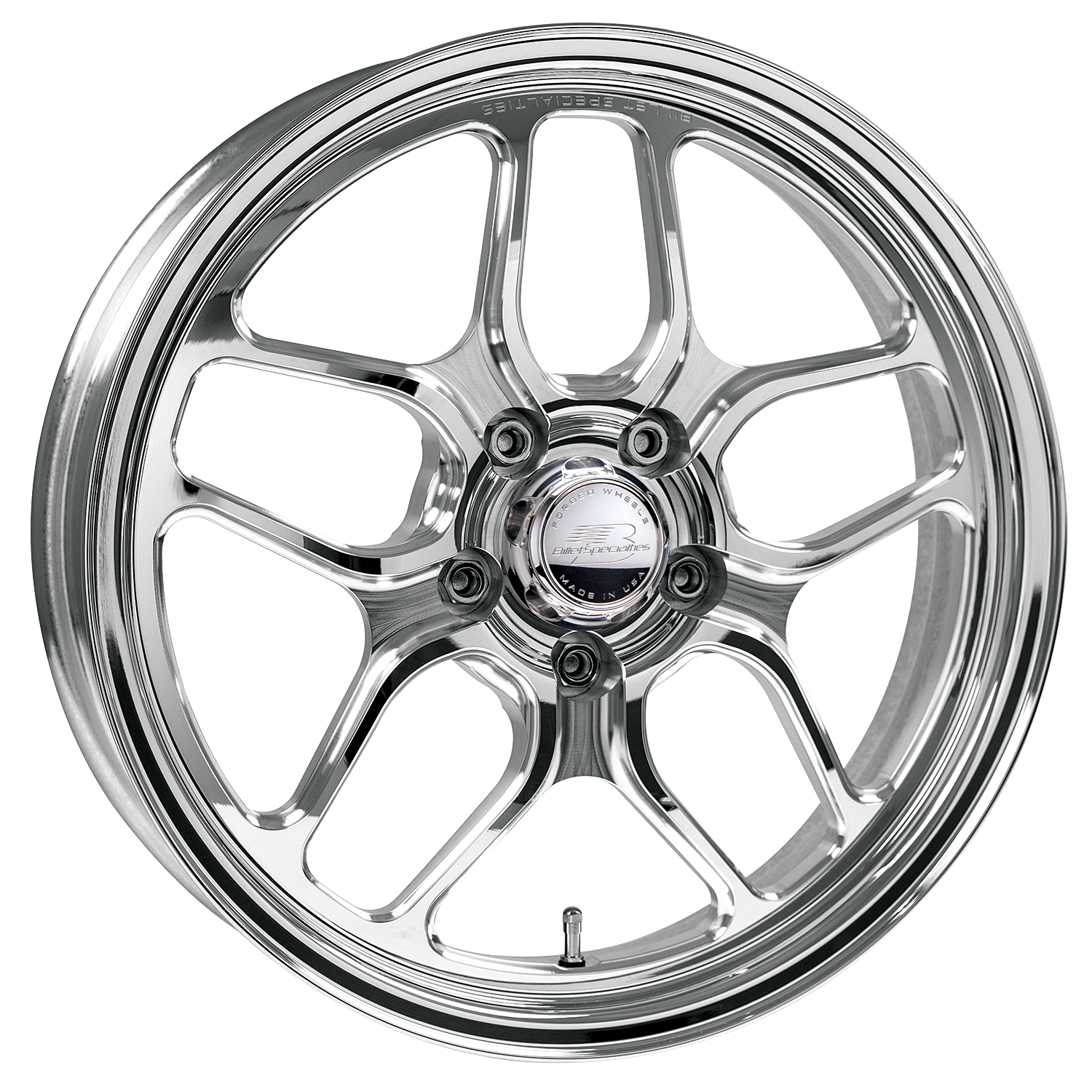

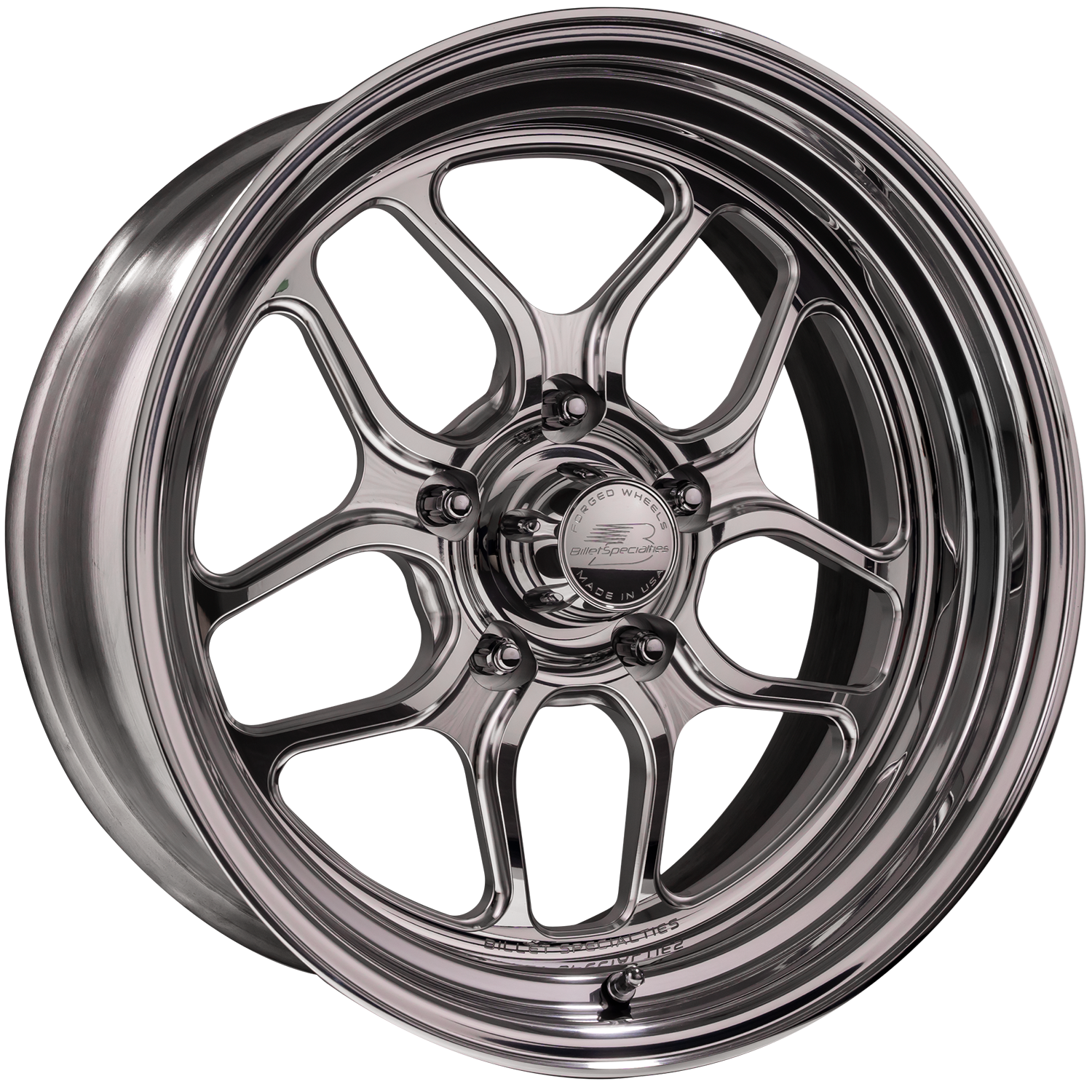

Polished Finish
Center: Polished center with machine finish windows and recess.
Rim: Polished outer face. The back of the wheel is a raw machine finish.

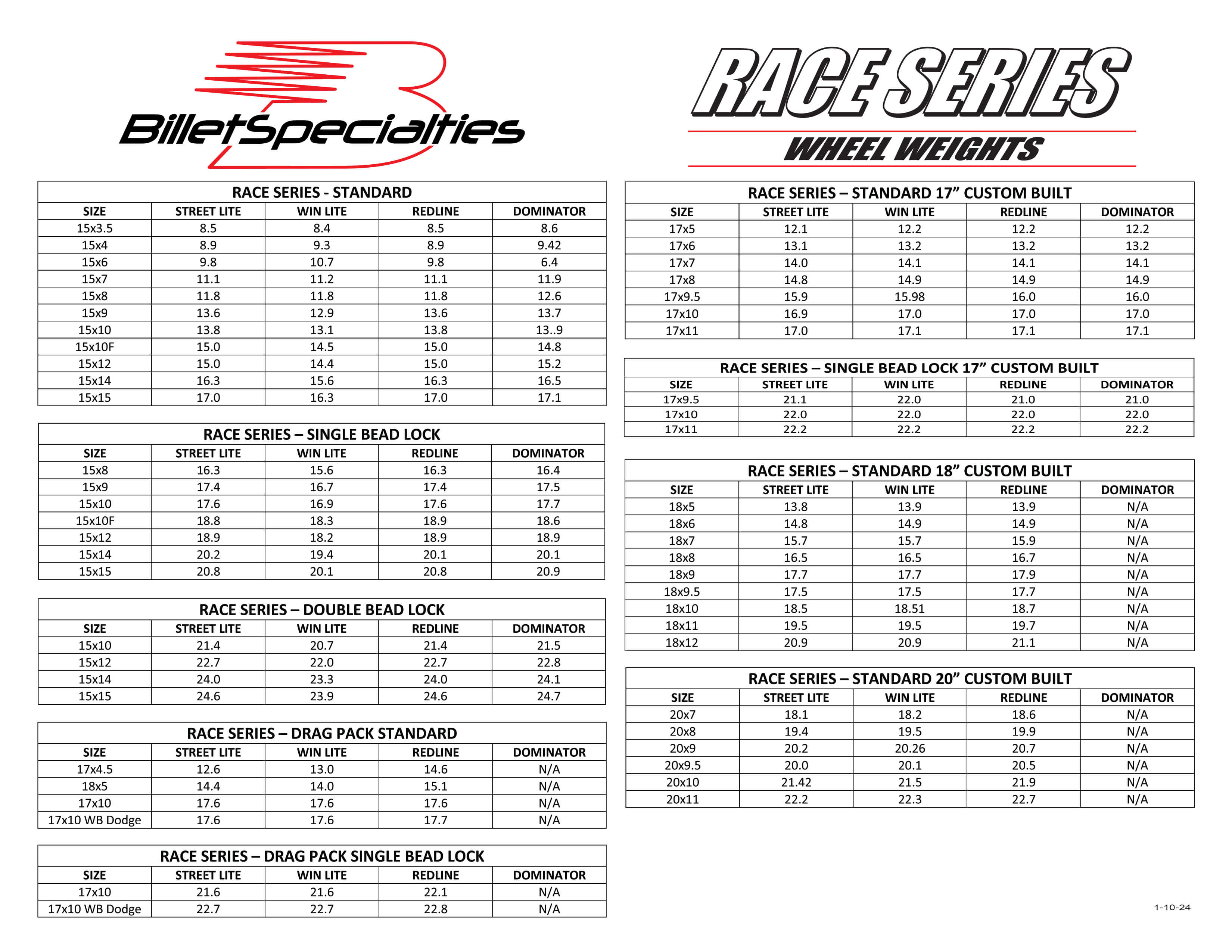

CLICK ON CHARTS TO DOWNLOAD OR PRINT
Important: Wheels with a backspace of 4.50" or more check for brake clearance by measuring from the center of the axle to the top of the caliper. This measurement cannot exceed 6-9/16" [6.5625"] or the caliper will come in contact with the drop center of the wheel. Please call a customer service representative at 800-245-5382 if you need assistance.
