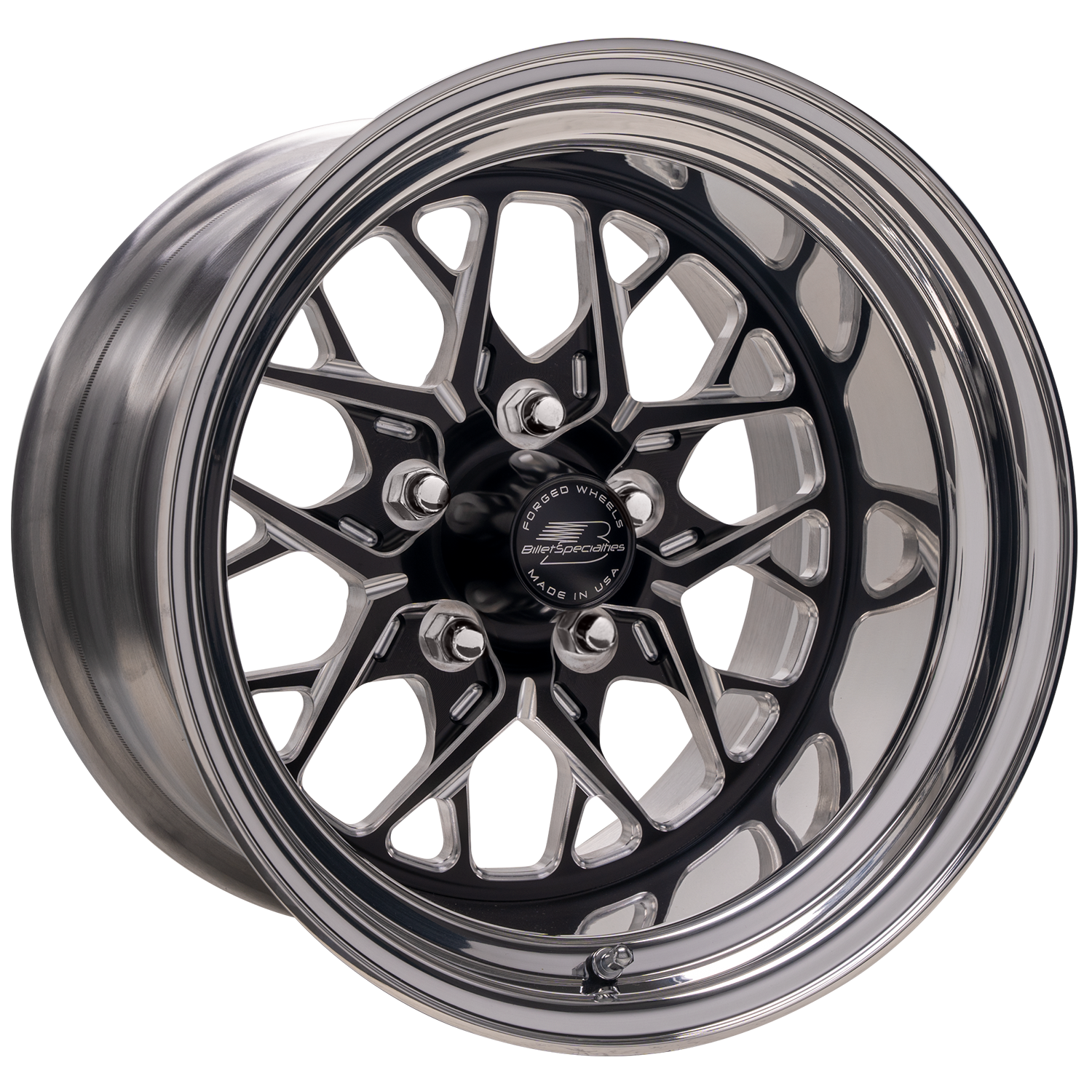

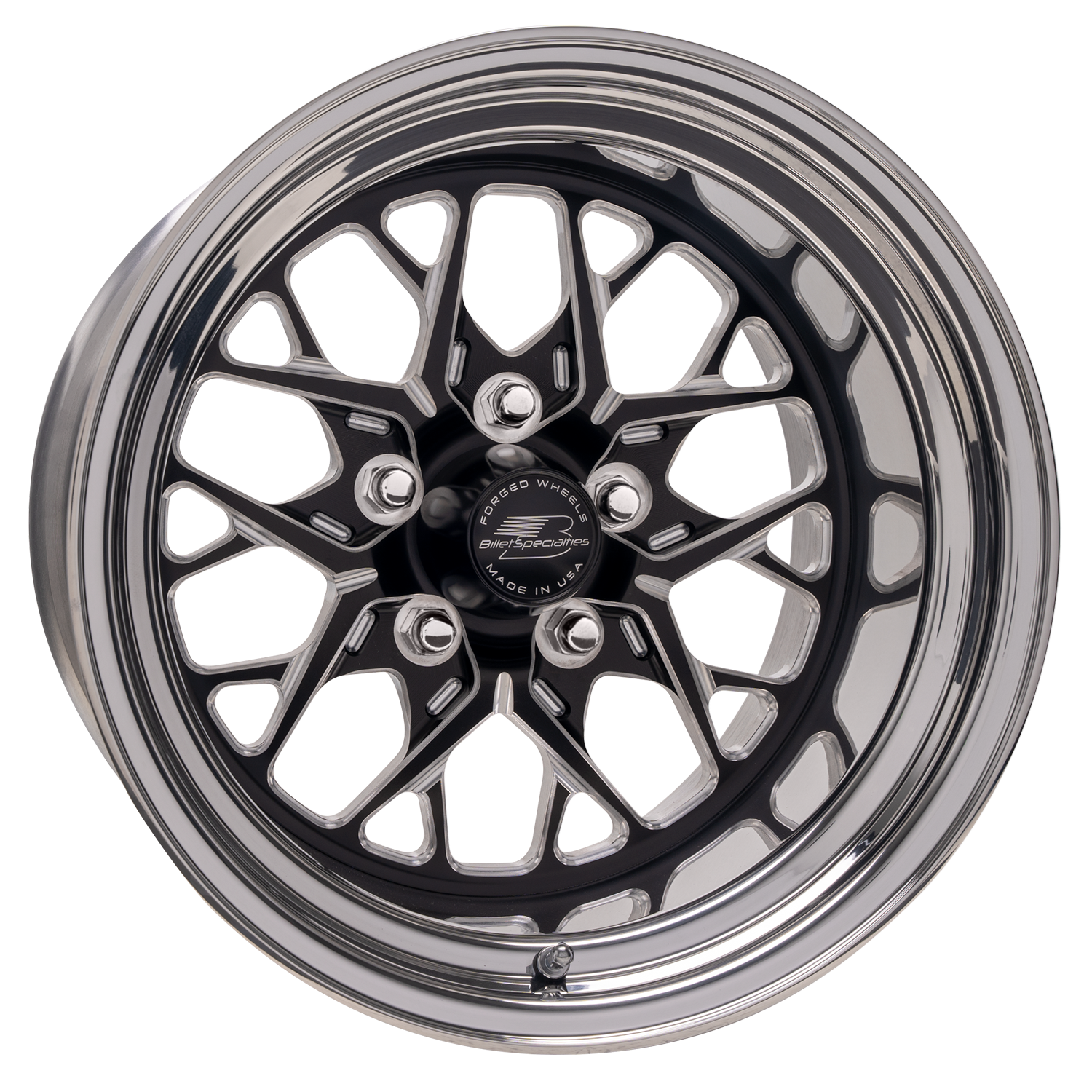

REDLINE LT REAR C10 / C1500

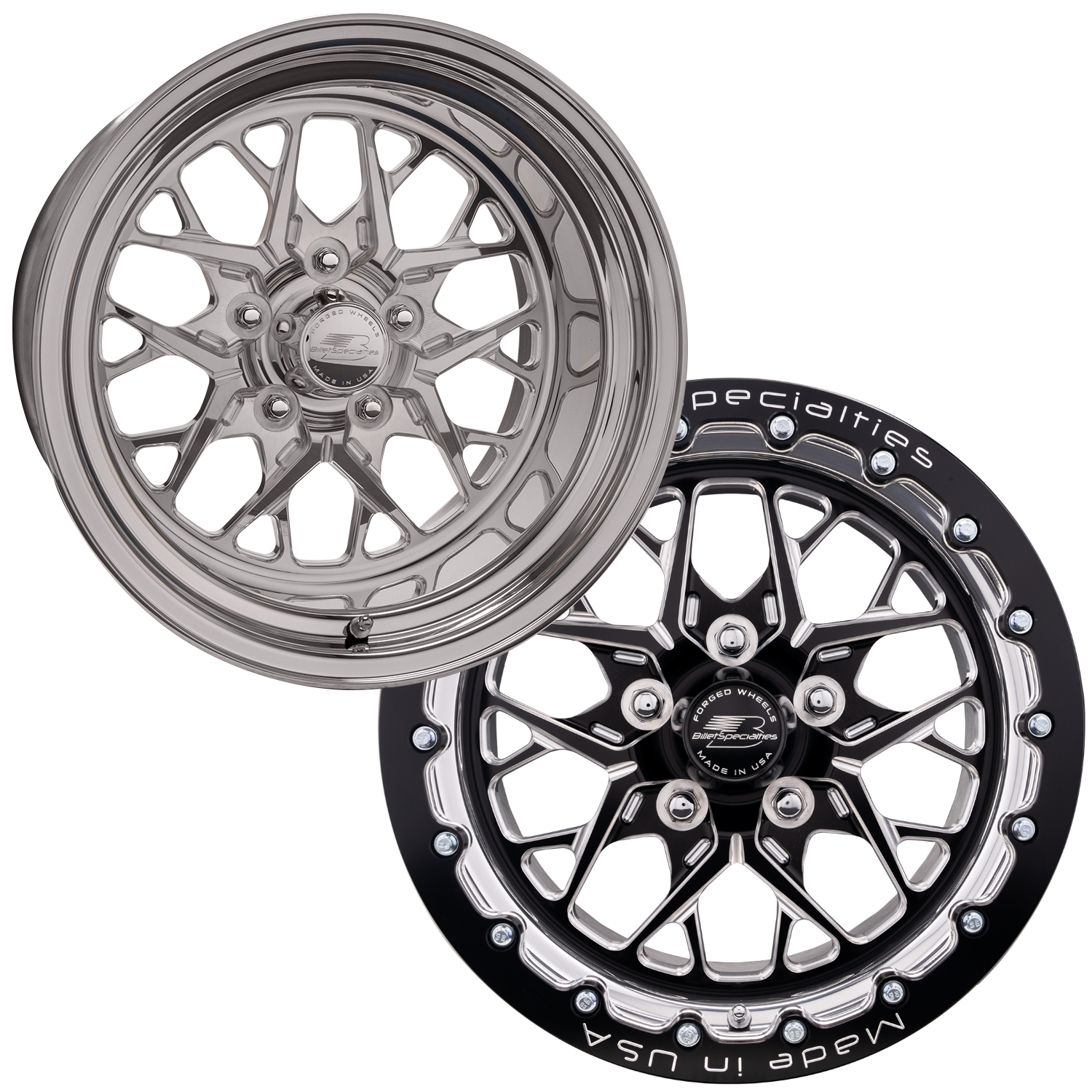

Pick up some style and performance with Billet Specialties Redline LT. The ultra-light timeless design handles everyday use on the street while offering lightweight performance at the drag strip. The Redline wheel brings modern style that is packed with performance for your Chevy C10 1971-1987 or C1500 from 1988-1998. Choose between a standard barrel or single bead lock. SCROLL DOWN FOR MORE DETAILS.

RL C10 R

REAR FITMENT FOR C10 '71-'87 / C1500 '88-'98 : 5x5 BOLT PATTERN

15x10 : 5.50 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C10 AND C1500

17x8 : 4.50 Backspace : 1" Caliper Clearance : FRONT AND REAR WHEELS FOR C10

17x8 : 5.00 Backspace : 1" Caliper Clearance : FRONT AND REAR WHEELS FOR C1500

17x9.5 : 5.25 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C10

17x9.5 : 5.75 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C1500

18x8 : 4.50 Backspace : 1" Caliper Clearance : FRONT AND REAR WHEELS FOR C10

18x8 : 5.00 Backspace : 1" Caliper Clearance : FRONT AND REAR WHEELS FOR C1500

18x9.5 : 5.25 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C10

18x9.5 : 5.75 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C1500

20x8 : 4.50 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C10

20x8 :5.00 Backspace : 1" Caliper Clearance : FRONT AND REAR WHEELS FOR C1500

20x9.5 : 5.25 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C10

20x9.5 : 5.75 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C1500

20x10 : 5.50 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C10

20x10 : 6.00 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C1500

22x10 : 5.50 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C10

22x10 : 6.00 Backspace : 1" Caliper Clearance : REAR WHEELS FOR C1500

Check Tech Info Tab For More Backspace Info

FEATURES:

Accepts Conical Seat Lug Nuts
Forged 6061 T6 Centers For Superior Strength And Weight
1pc Spun 6061 Barrels For Ultimate Run Out And Weight Savings
Machined Serrations At The Bead Seat For Improved Tire-To-Rim Grip Reducing Tire Spin
Choose Between Our Standard Polished Or Black Finish Options, OR You Can Special Order Custom Colors To Make Your Car Stand Out Even More

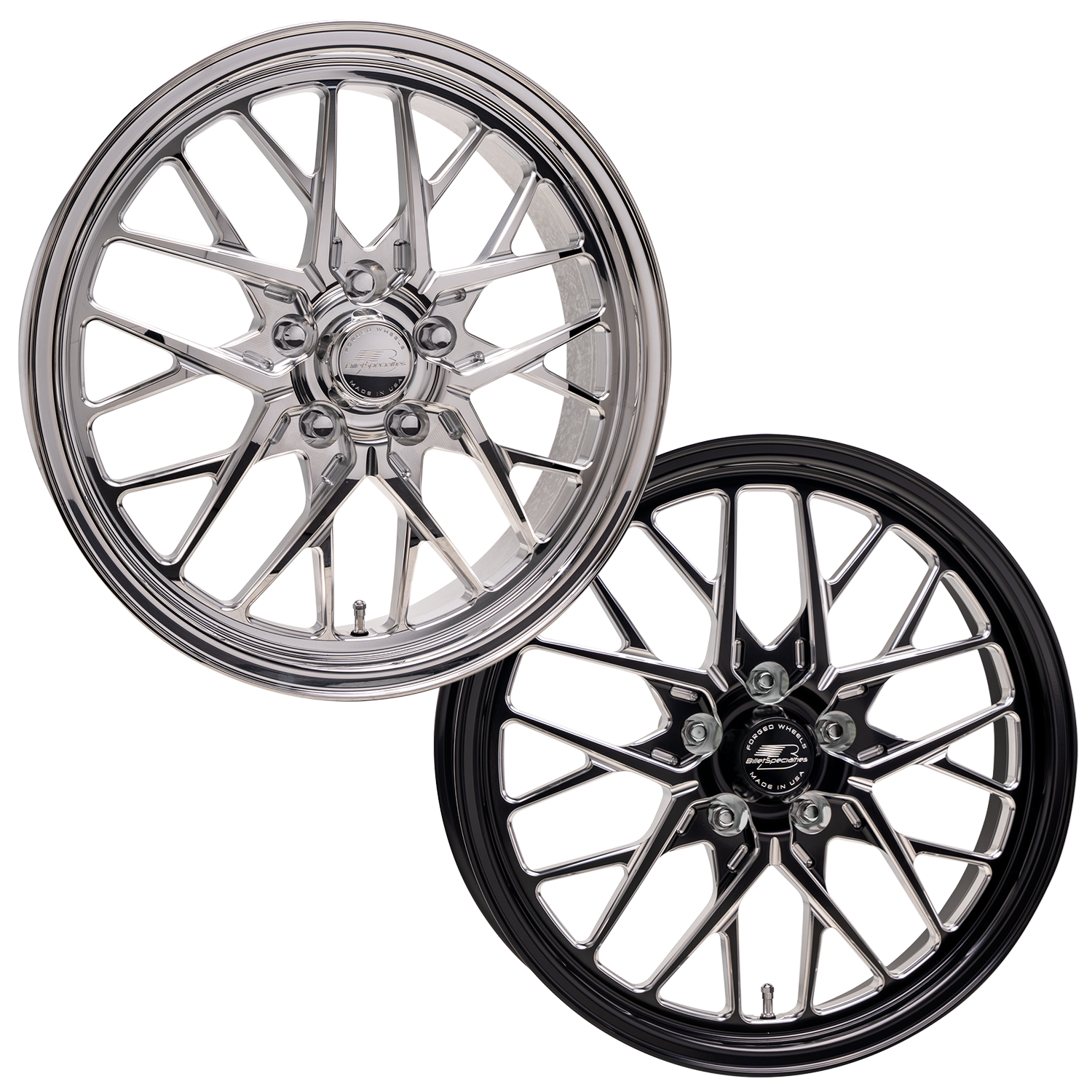

STANDARD WHEEL FINISHES:

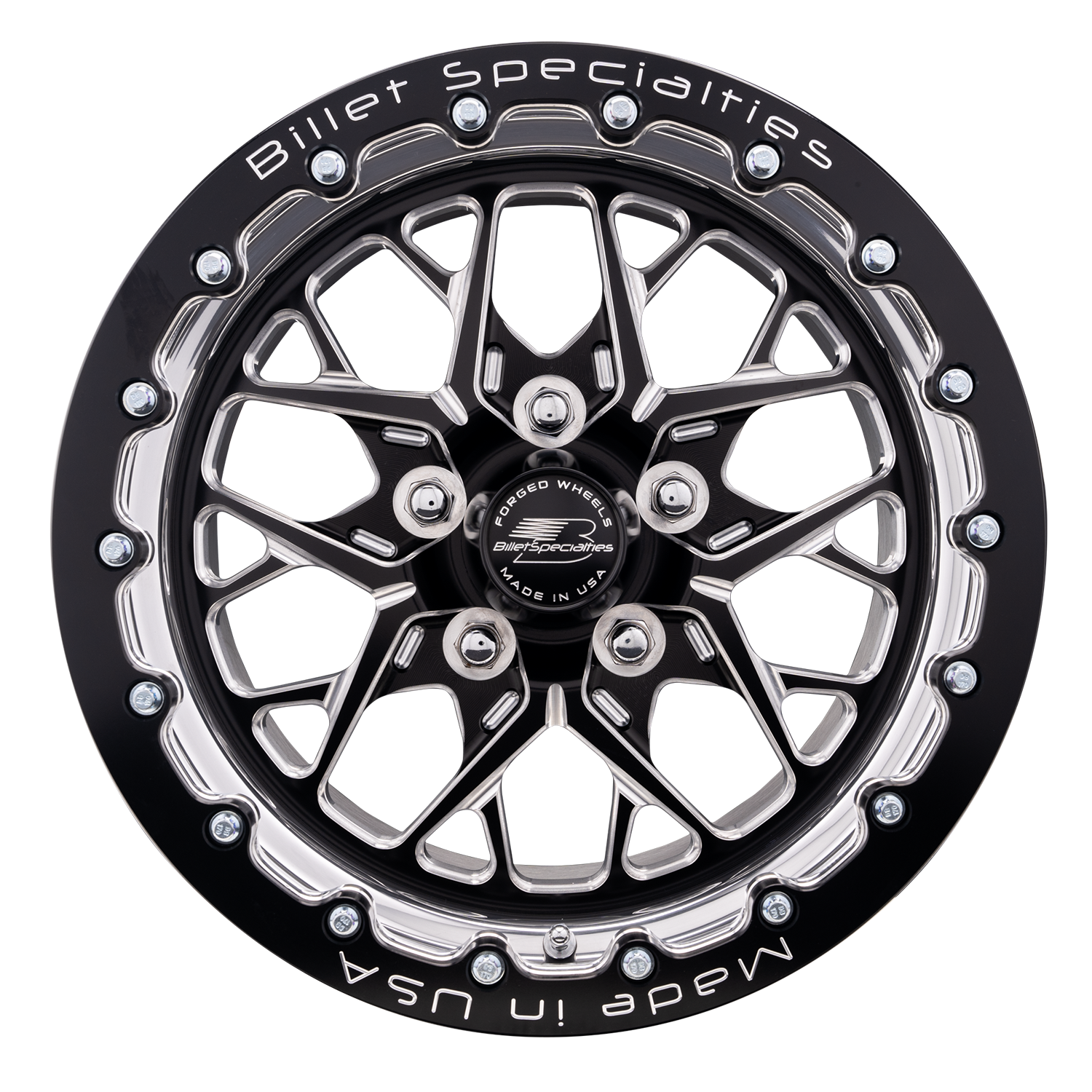

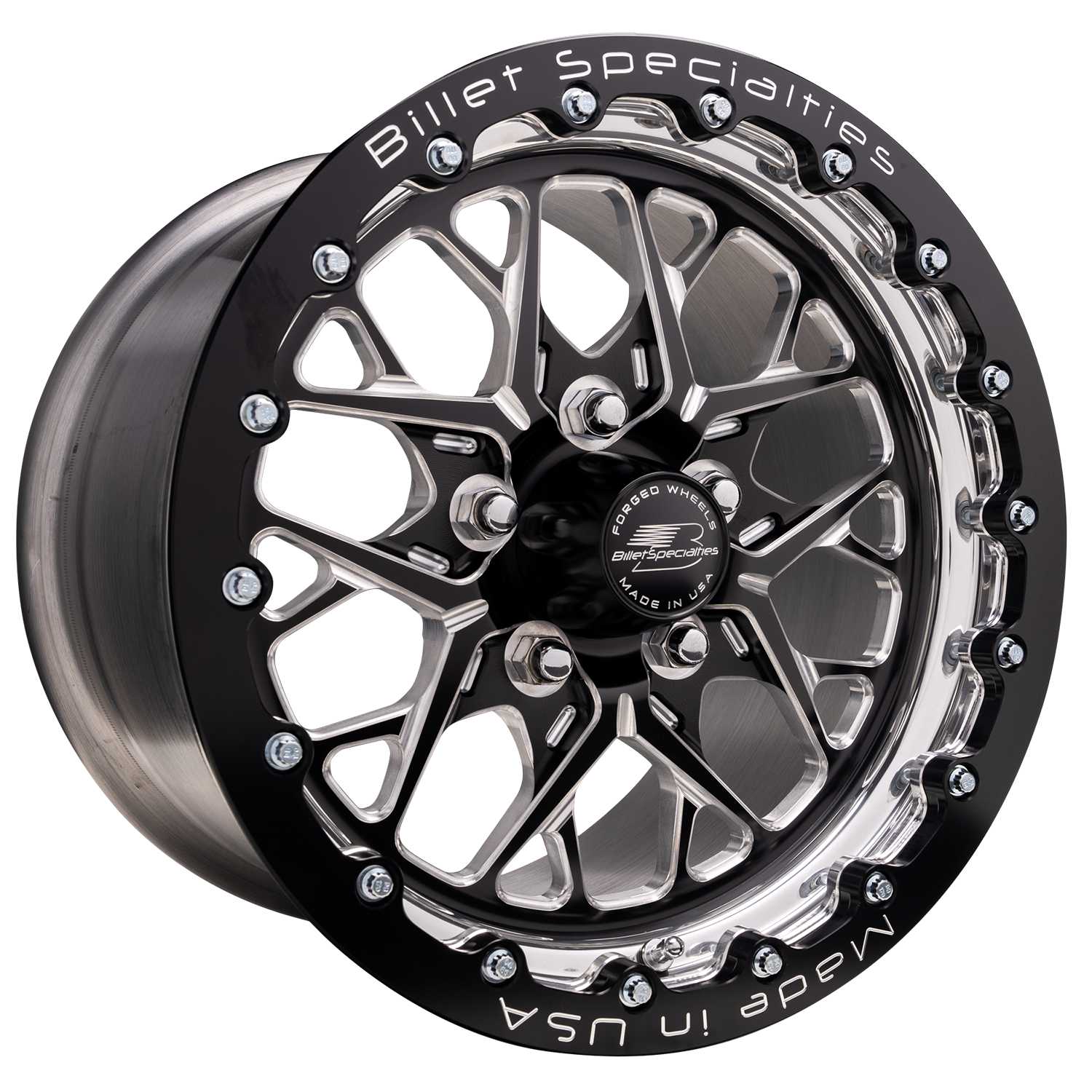

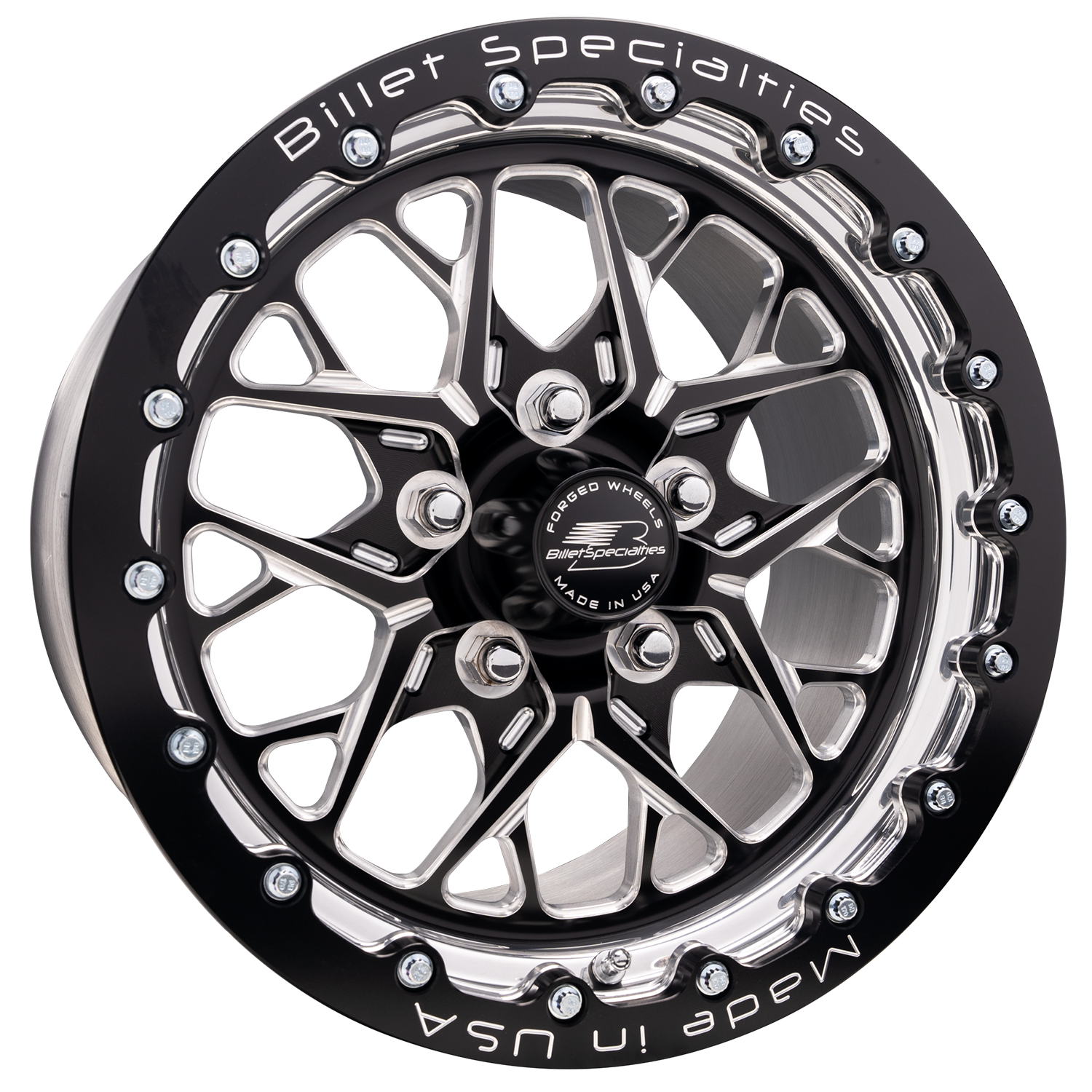

BEADLOCK WHEELS COME WITH BLACK ANODIZED BEADLOCK RING.

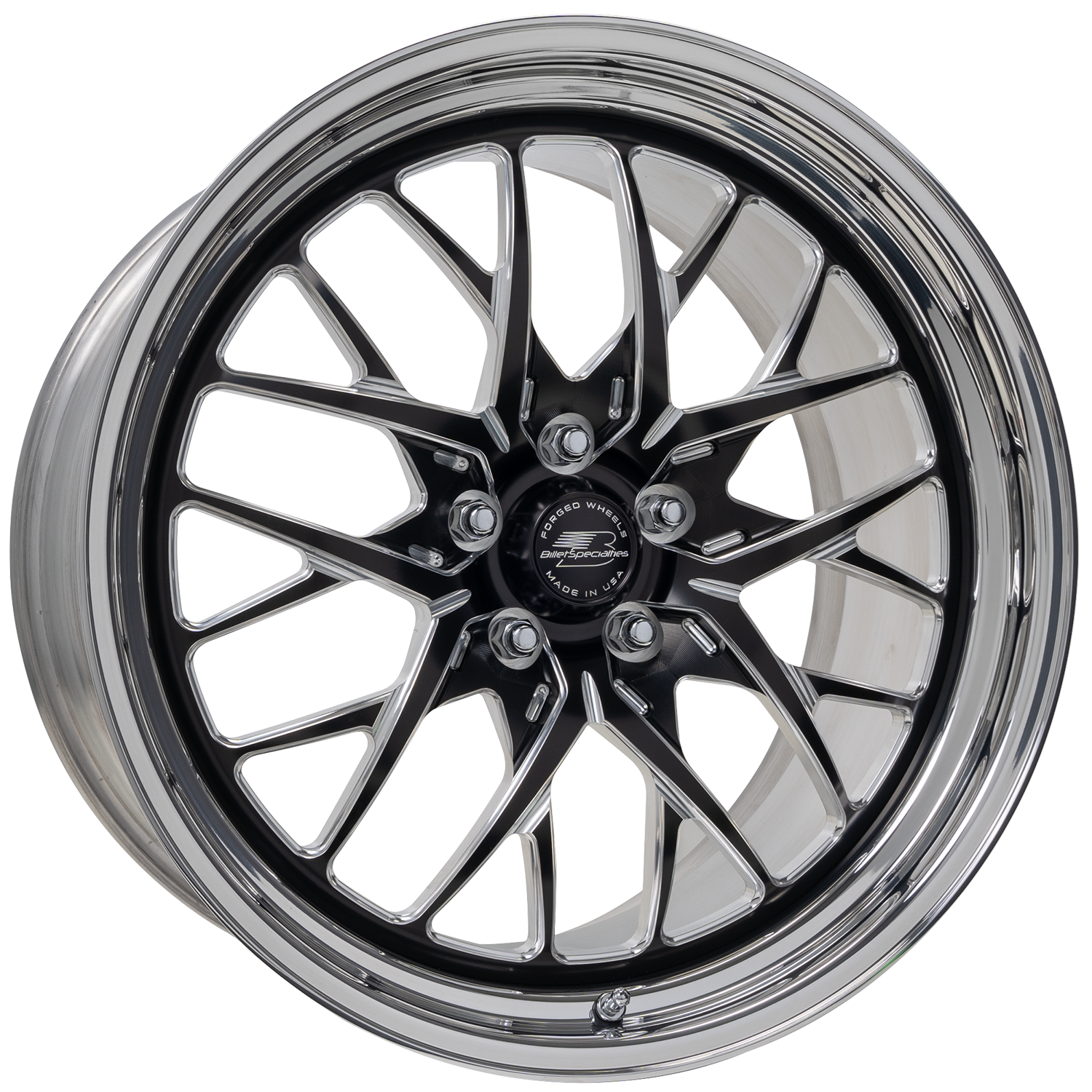

Black Finish

Black powder-coated face and outer rim with machine-finished windows and recess. The back of the wheel is black powder-coated.

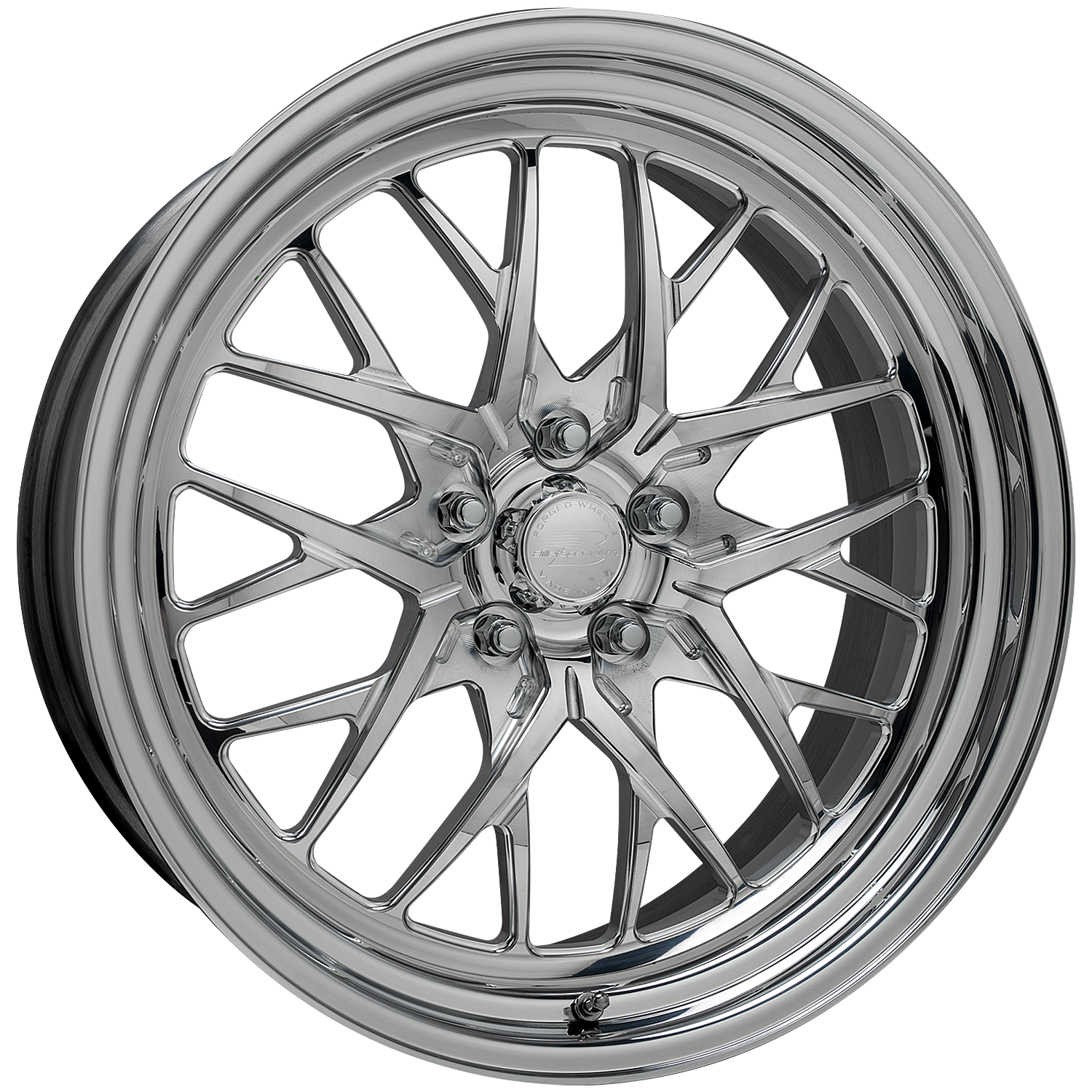

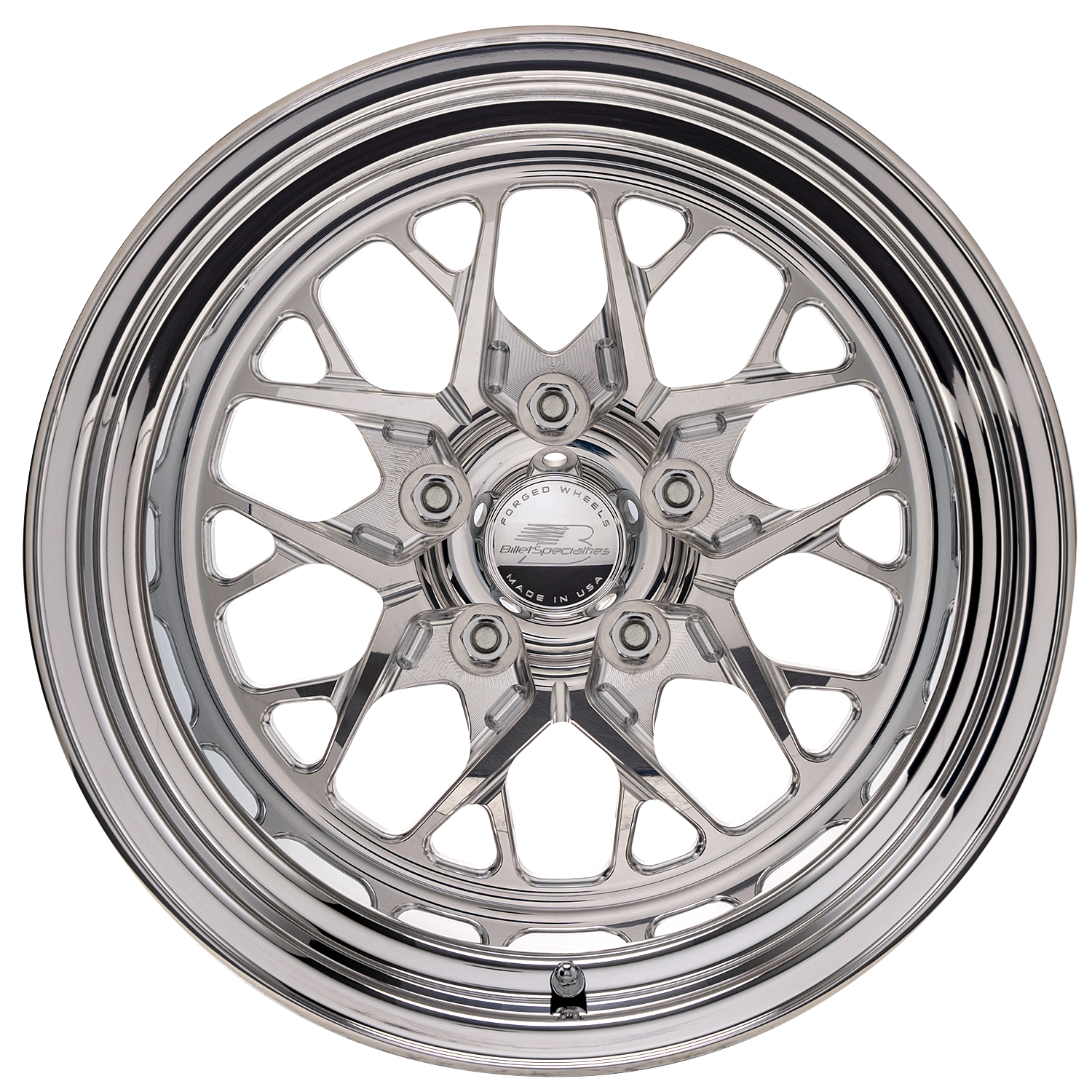

Polished Finish

Polished face and outer rim with machine-finished windows and recess. The back of the wheel is machined-finished.

Custom Color Finish Available Upon Request. Check Custom Finish Tab For Options And Pricing. Fill Out Custom Finish Form To Order.
