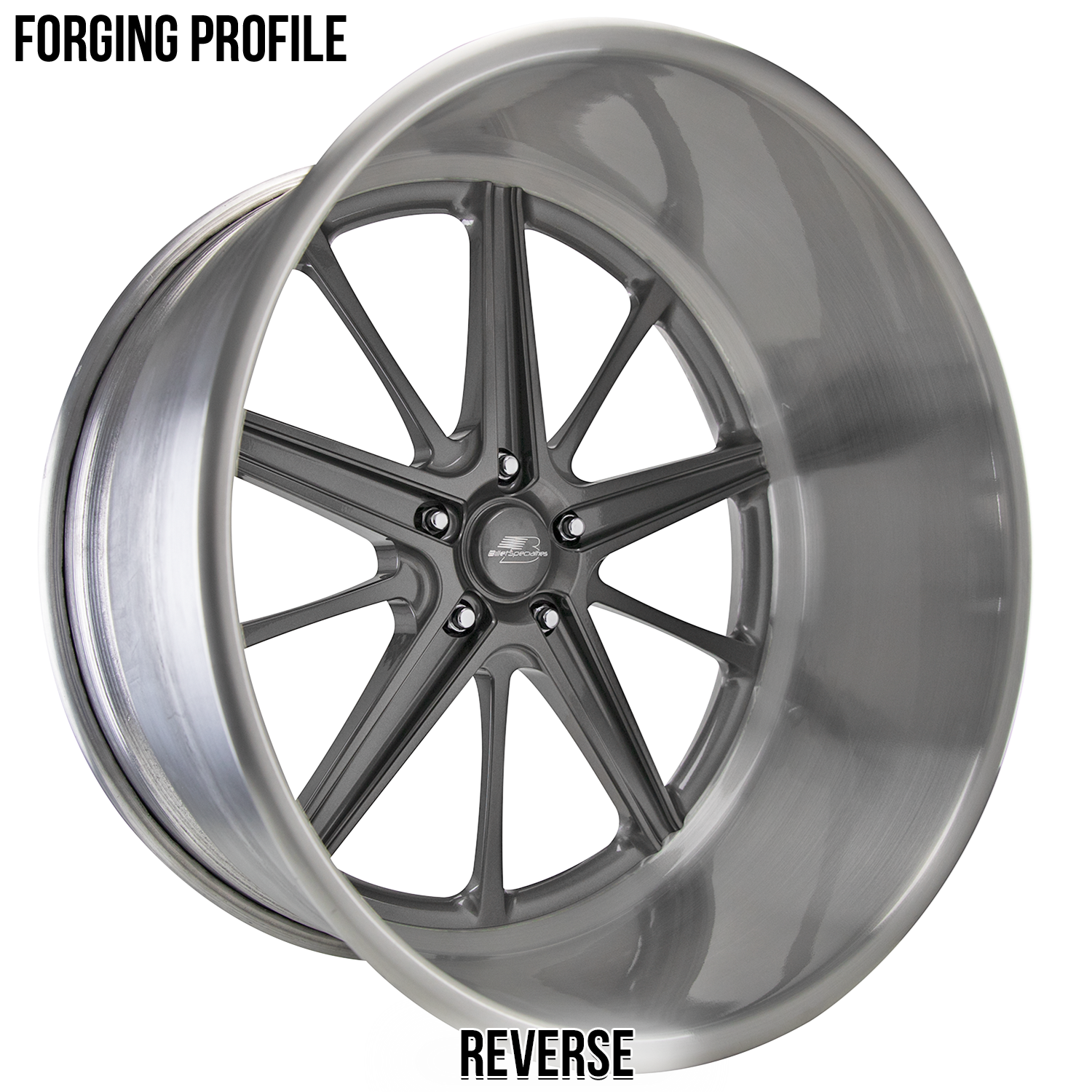

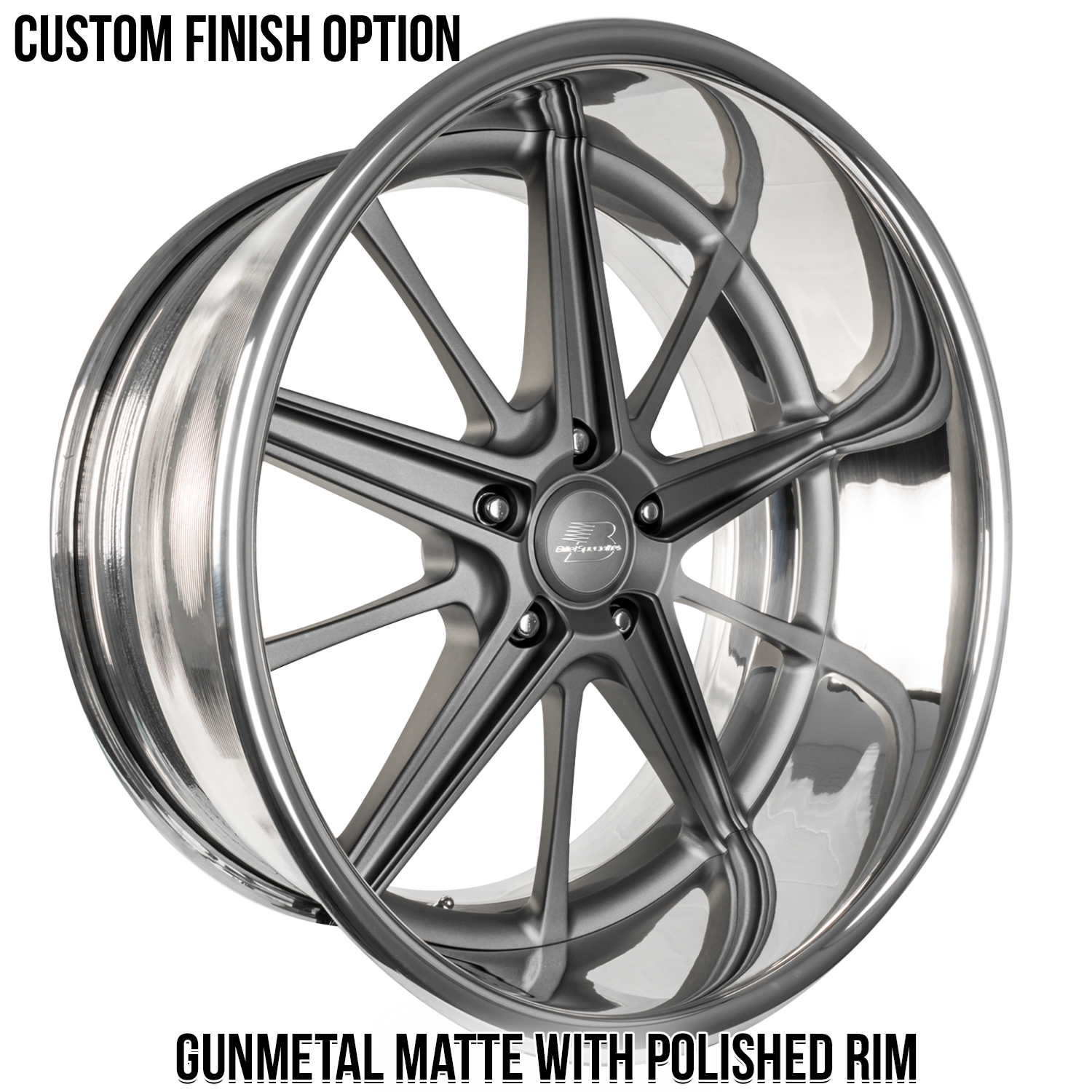

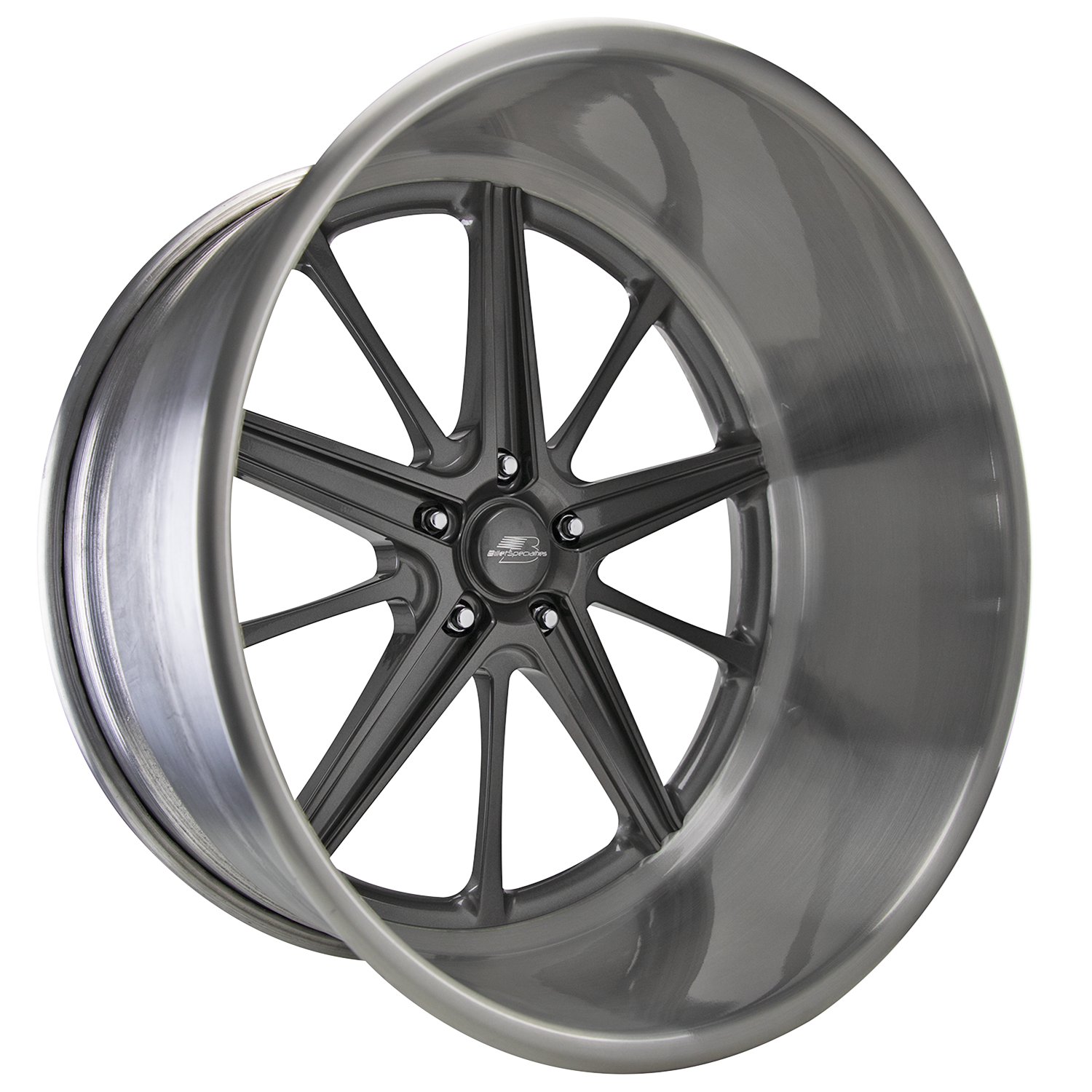

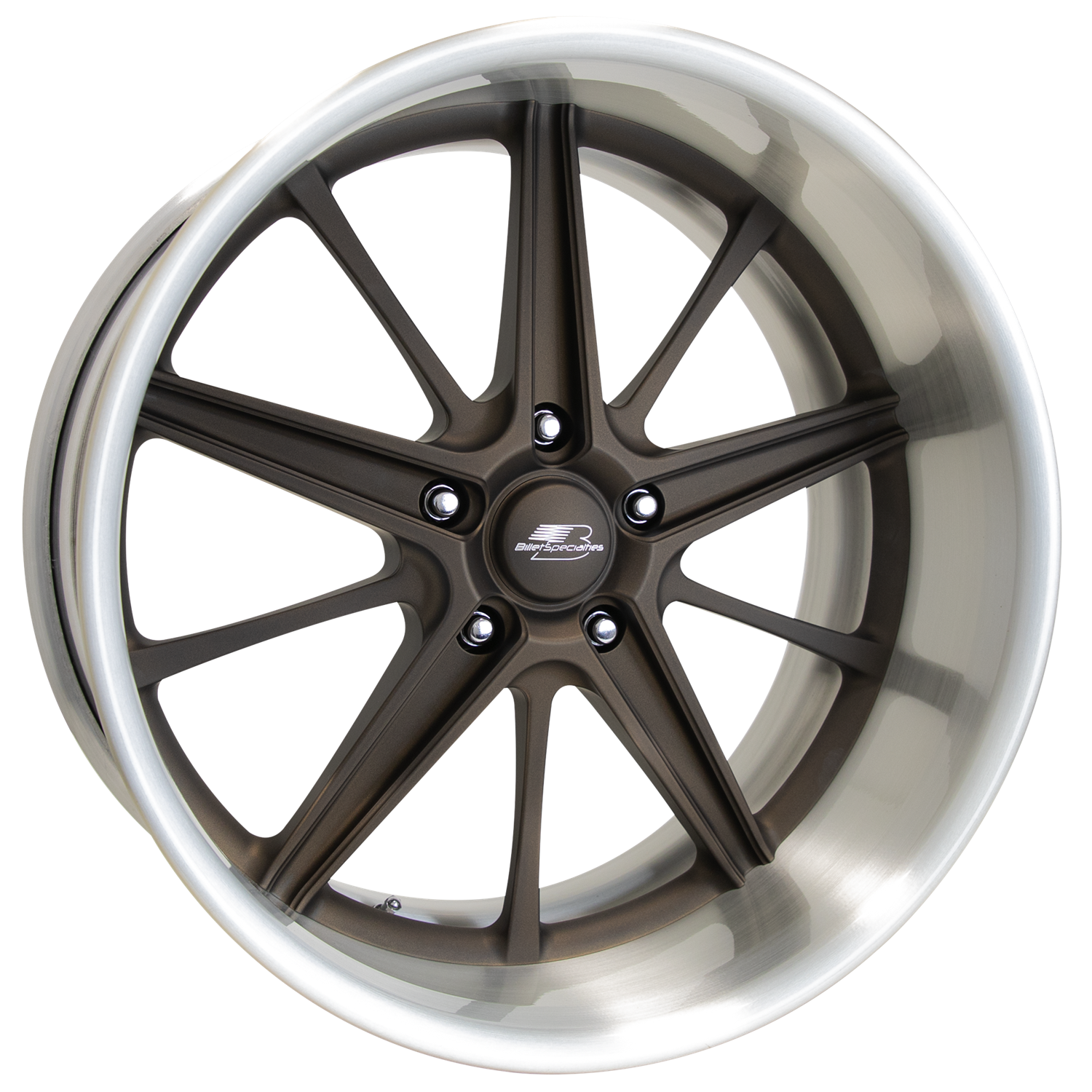

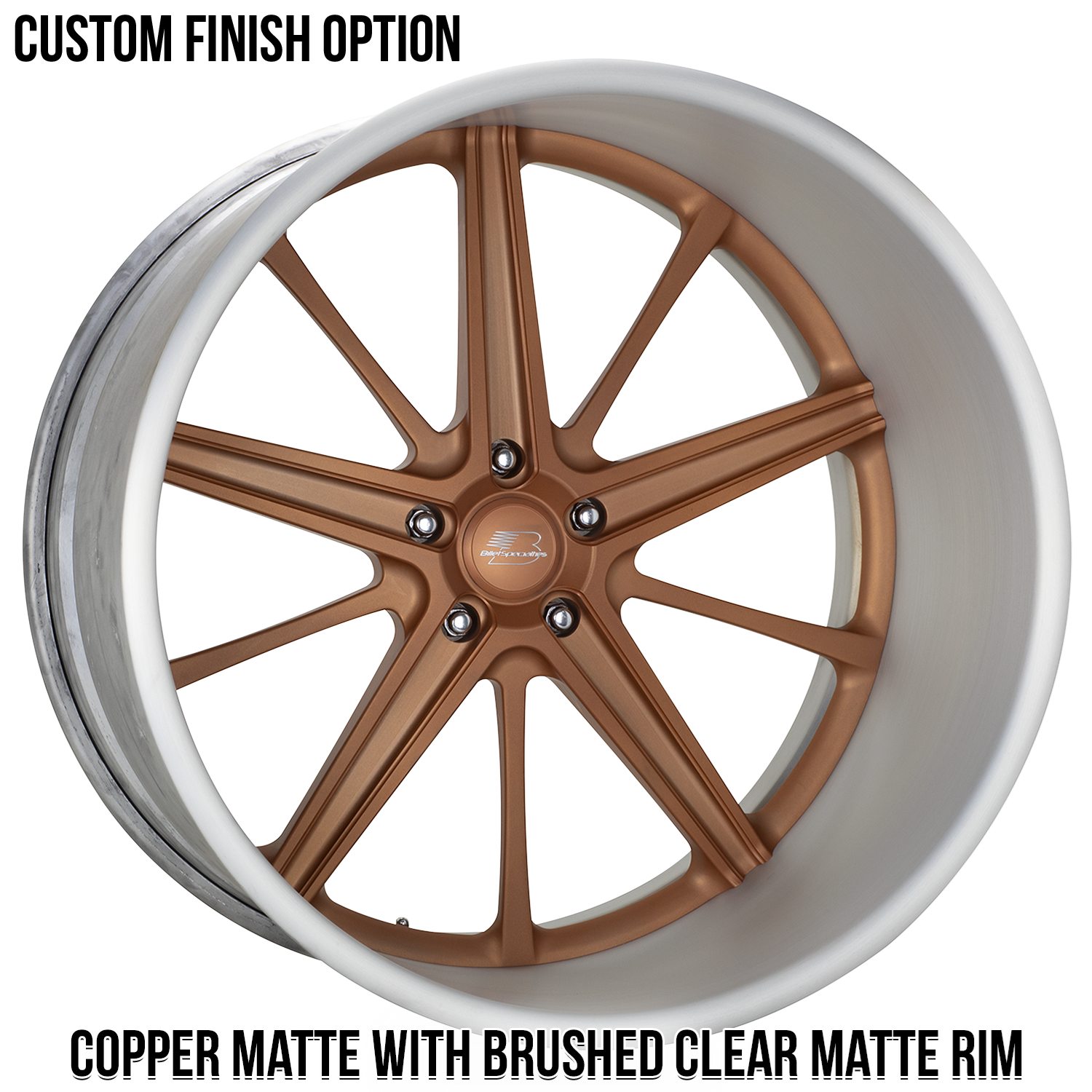

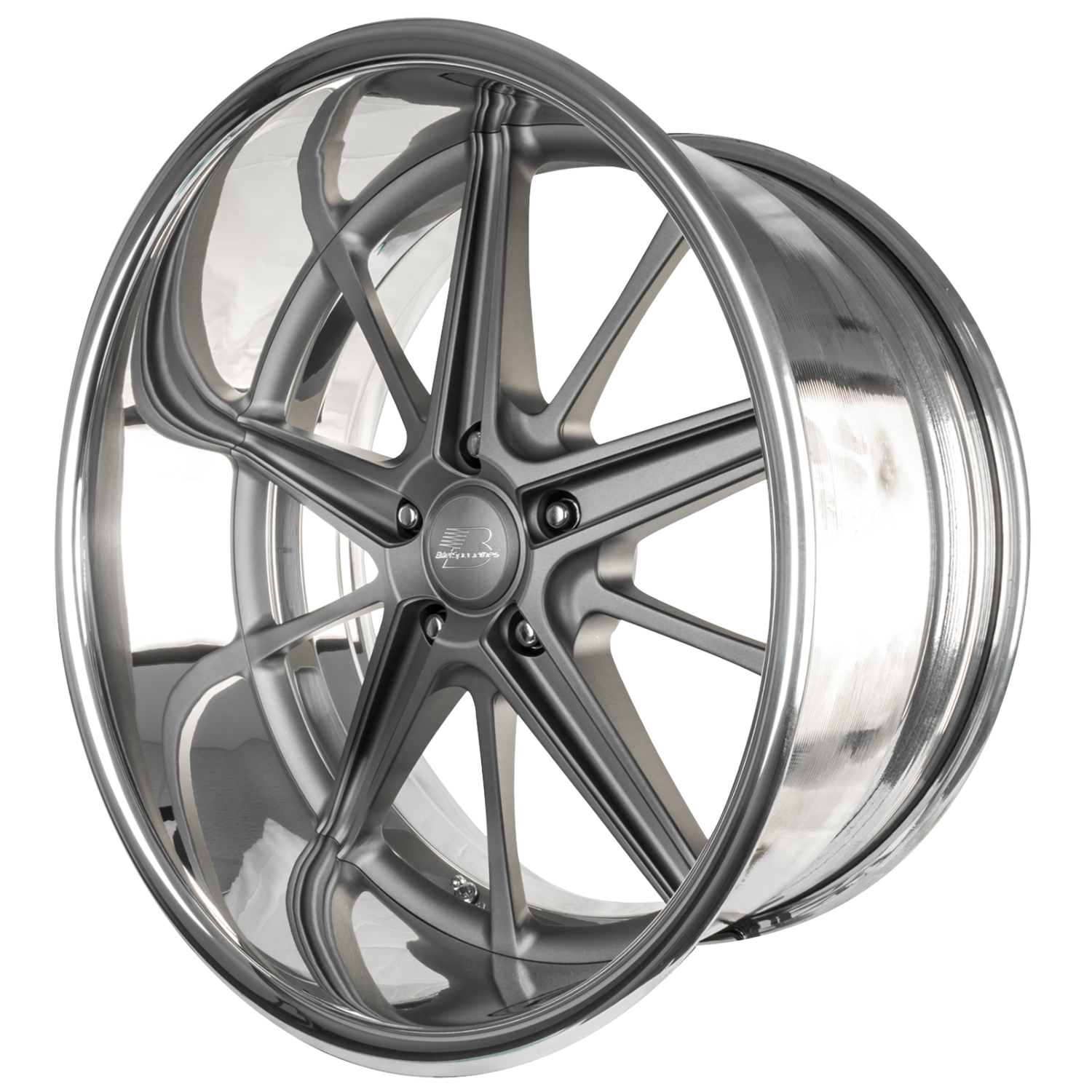

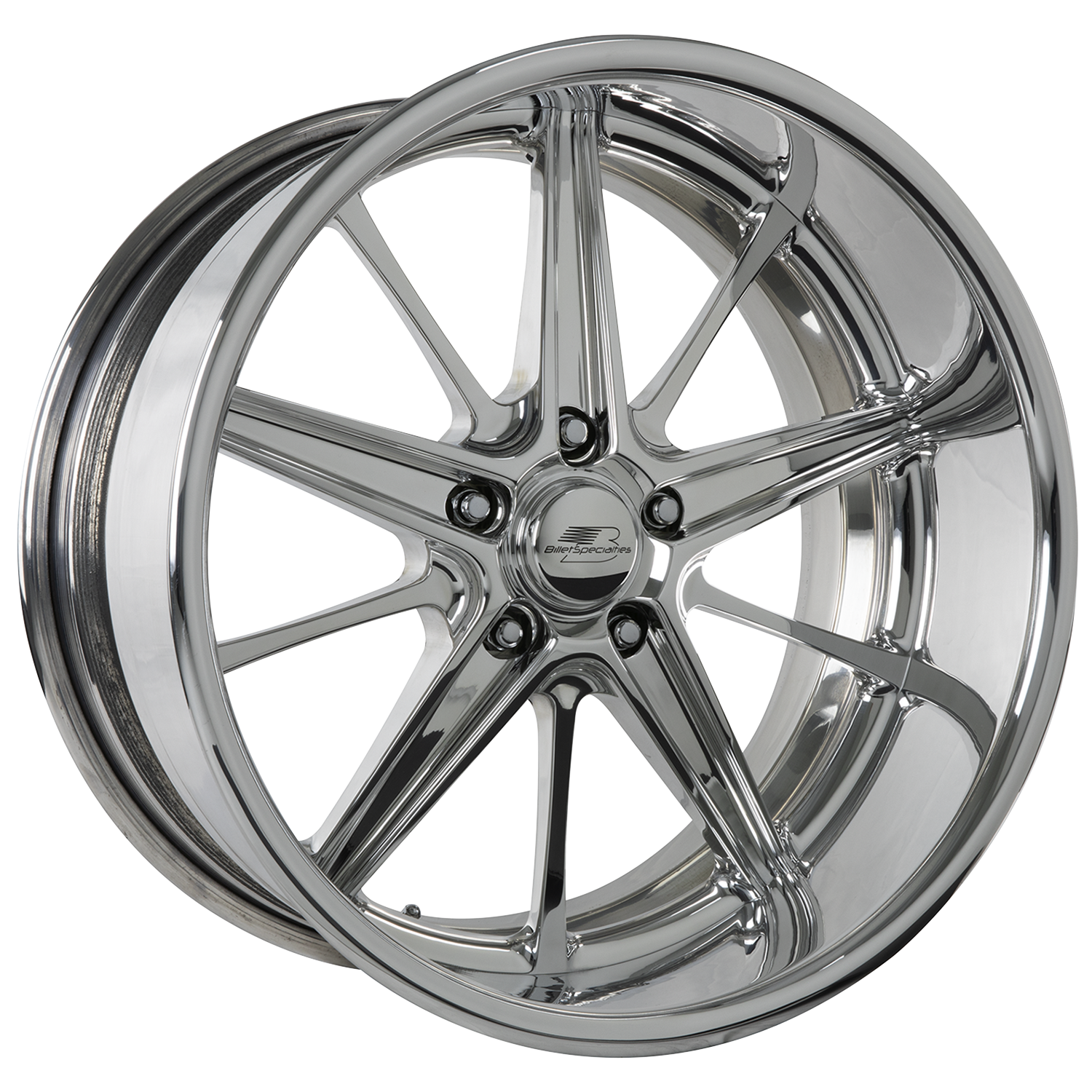

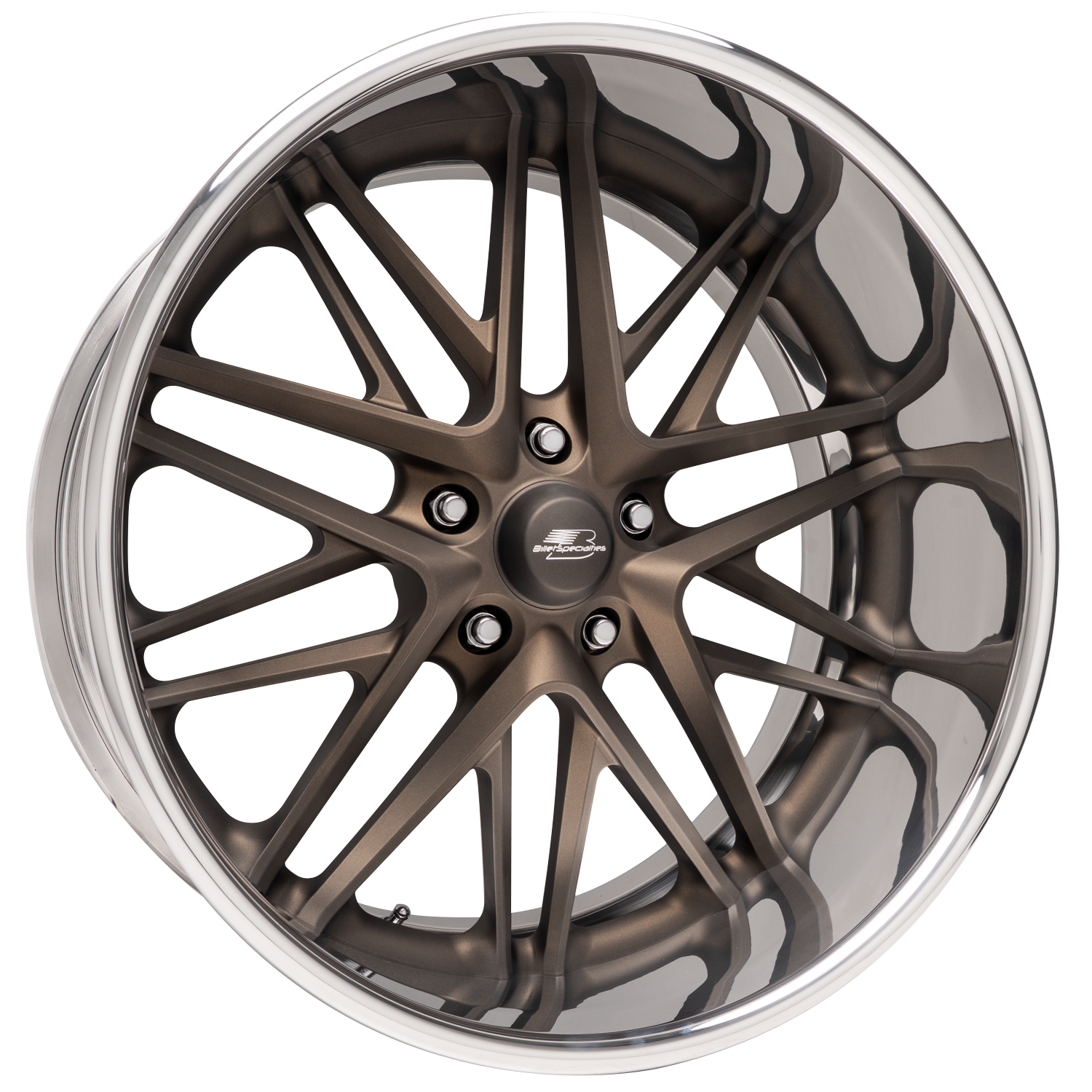

Invader

SLC52
Select Your Wheel Size
Select Your Forging Profile

  • Standard Profile - Big brake clearance and available in 17”, 18”,19”, 20”, 22”,24”, 26” & 28"
  • Extreme Profile – Extreme concave profile for the rear. Available in 19”, 20” & 22” in widths of 10” or wider.



7/8" Caliper Clearance

1-1/4" Caliper Clearance

 1-7/8" Caliper Clearance
SizeMin BackspaceMax Backspace Min BackspaceMax Backspace Min BackspaceMax Backspace
17x74.3755.75 4.005.375 N/AN/A
17x84.3756.75 4.006.375 N/AN/A
17x104.3758.75 4.008.375 N/AN/A
18x74.255.75 3.8755.375 3.254.75
18x84.256.75 3.8756.375 3.255.75
18x94.257.75 3.8757.375 3.256.75
18x104.258.75 3.8758.375 3.257.75
18x114.259.75 3.8759.375 3.258.75
18x124.2510.75 3.87510.375 3.259.75
19x84.006.625 3.6256.25 3.005.625
19x94.007.625 3.6257.25 3.3756.625
19x104.008.625 3.6258.25 3.3757.625
19x114.009.625 3.6259.25 3.3758.625
19x124.0010.625 3.62510.25 3.3759.625
20x8.54.007.25 3.6256.875 3..006.25
20x94.007.75 3.6257.375 3.006.75
20x104.008.75 3.6258.375 3.007.75
20x10.54.009.25 3.6258.875 3.008.25
20x124.0010.75 3.62510.375 3.009.75
20x154.0013.75 3.62513.375 3.0012.75
22x8.54.257.25 3.8756.875 3.256.25
22x94.257.75 3.8757.375 3.256.75
22x104.258.75 3.8758.375 3.257.75
22x10.54.259.25 3.8758.875 3.258.25
22x124.2510.75 3.87510.375 3.259.75
24x94.257.50 3.8757.125 3.256.50
24x104.258.50 3.8758.125 3.257.50
24x124.2510.50 3.87510.125 3.259.50
24x154.2513.50 3.87513.125 3.2512.50
26x94.257.50 3.8757.125 3.256.50
26x104.258.50 3.8758.125 3.257.50
26x124.2510.50 3.87510.125 3.259.50
26X144.2512.50 3.87512.125 3.2511.50
26X164.5014.50 4.12514.125 3.2513.50
28X94.3755.875
4.005.50
3.3754.875
28X10
4.3756.875
4.006.50
3.3755.875
28X124.3758.875
4.008.50
3.3757.875
28X164.37512.875
4.0012.50
3.37511.875

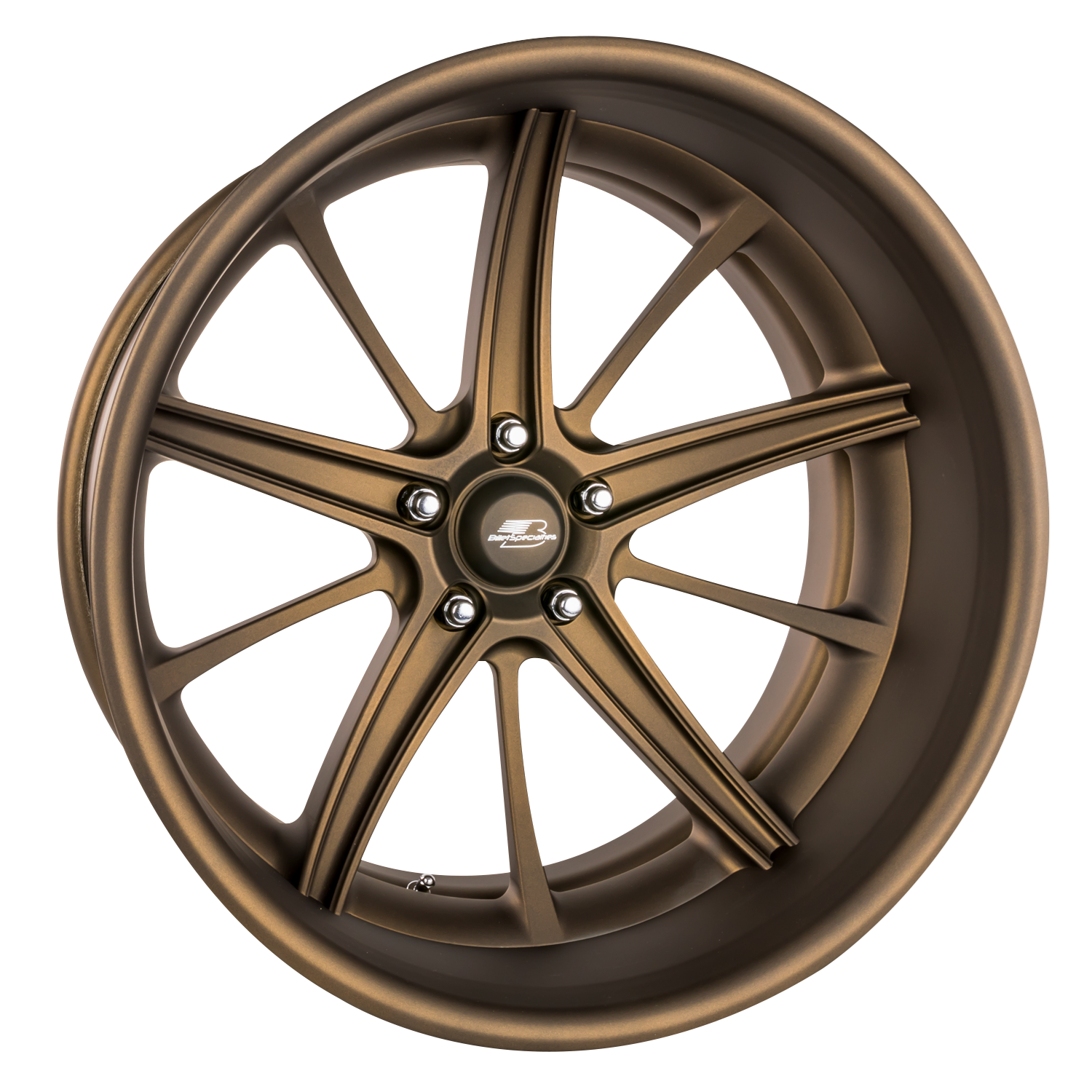

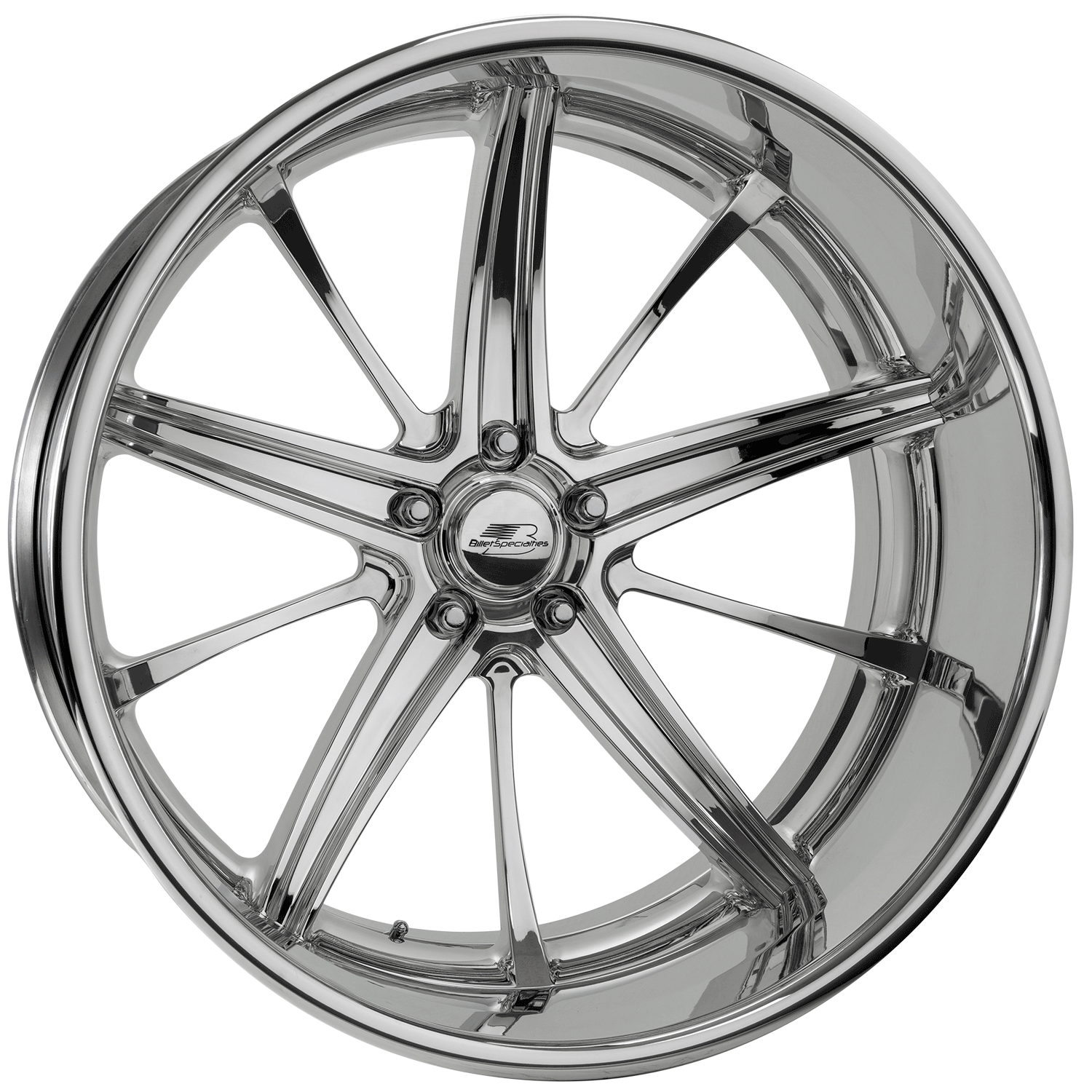

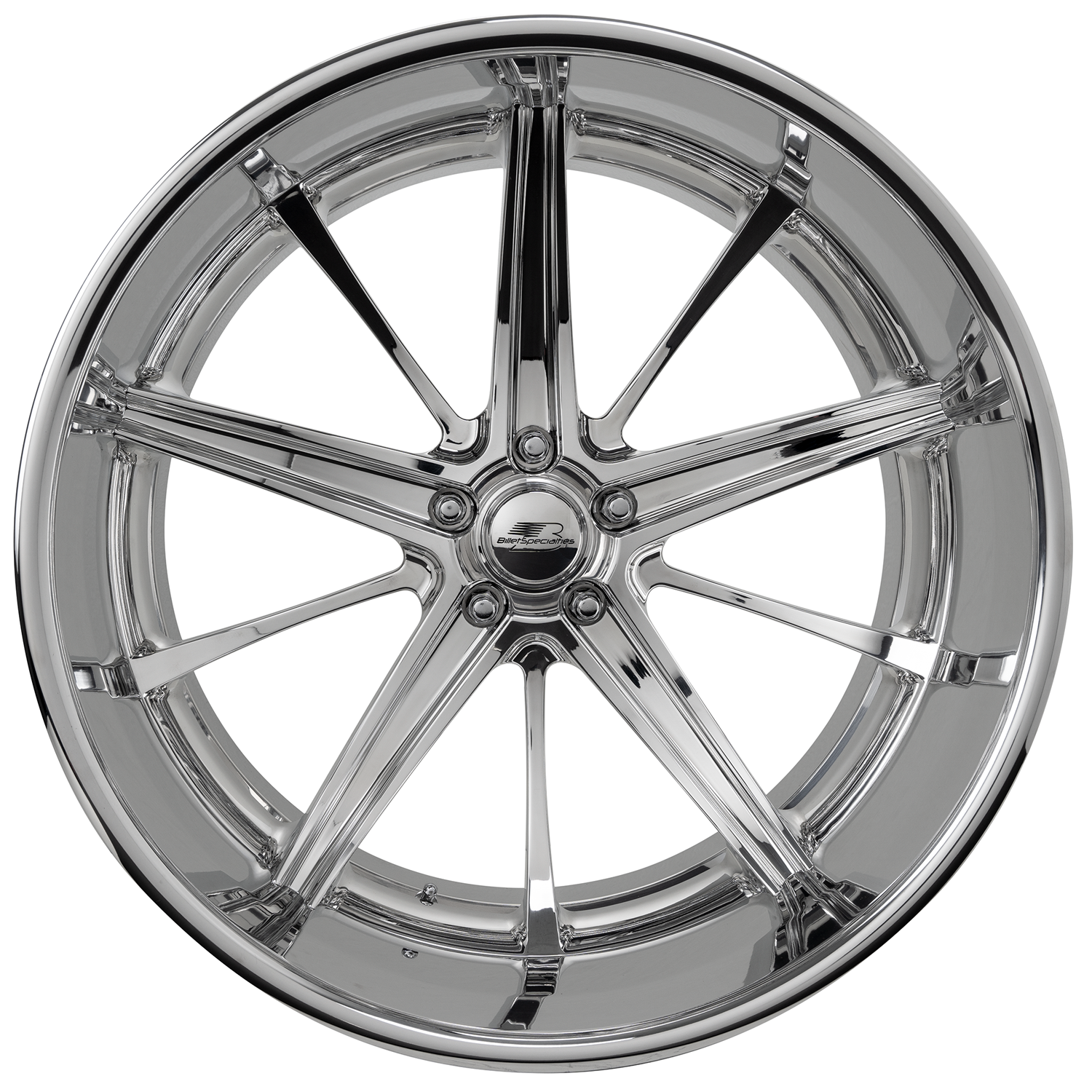

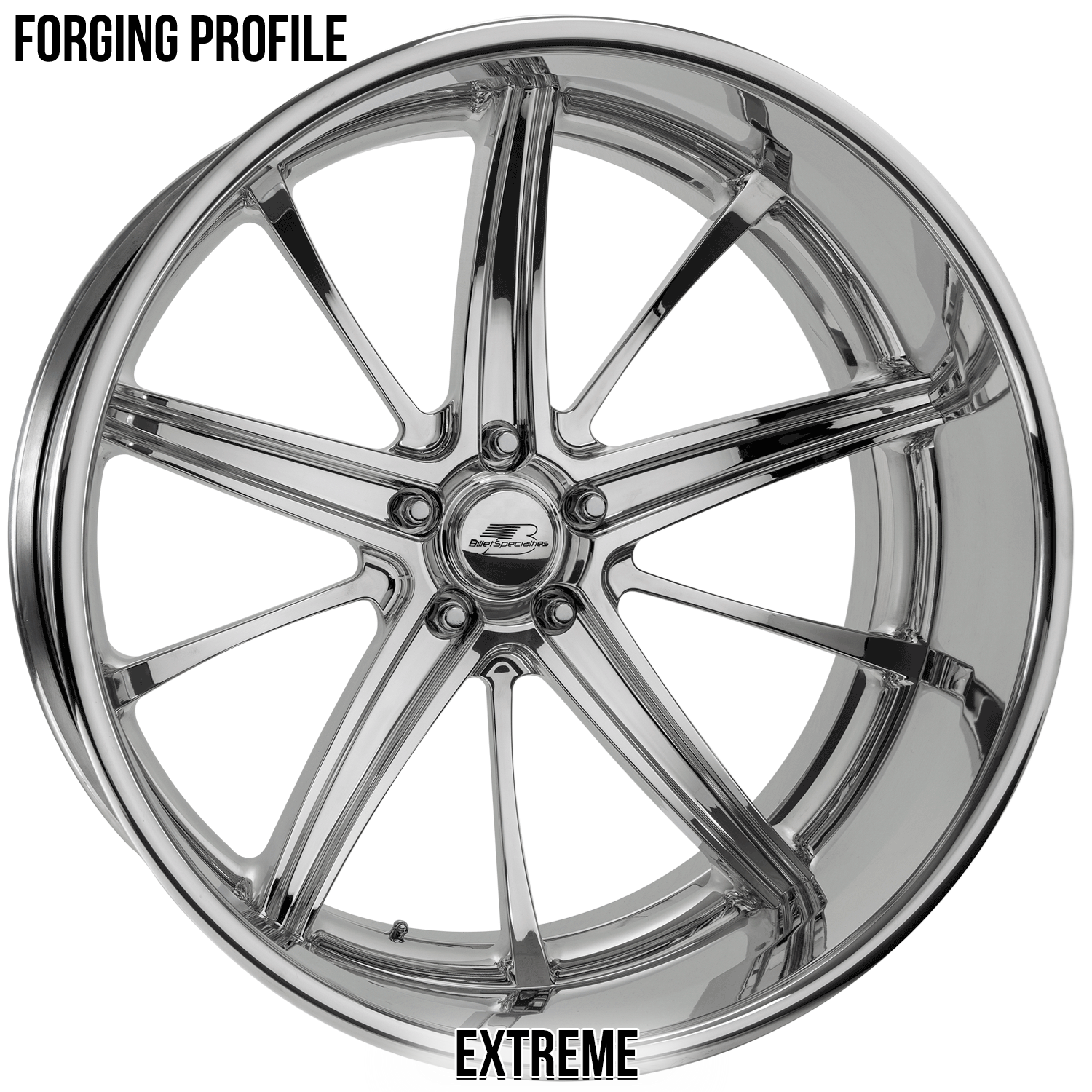

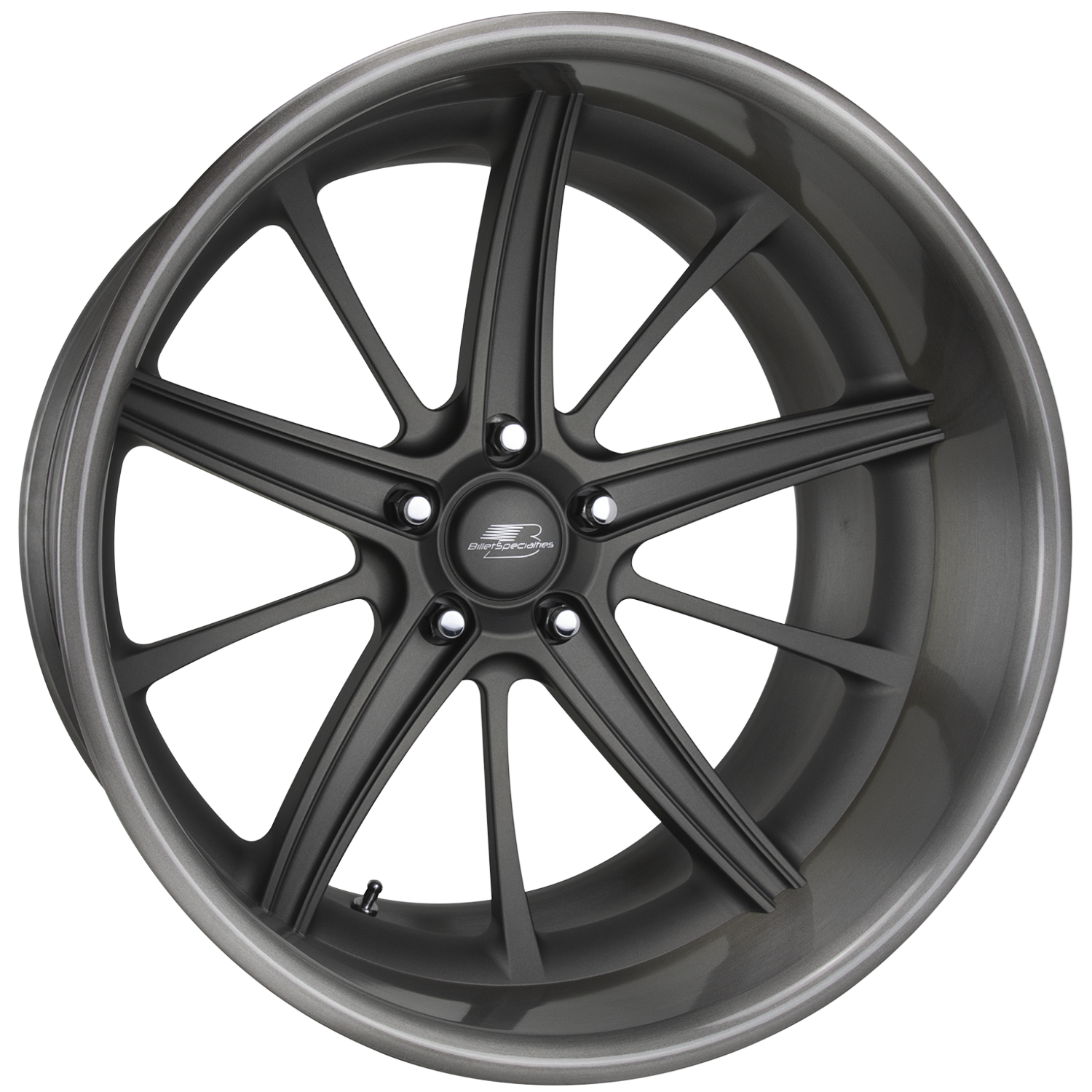

Extreme
Concave
1/2" Caliper Clearance
SizeMin BackspaceMax Backspace
19X102.1255.25
19X112.1256.25
19X122.1257.25
20x102.1255.25
20x10.52.1255.75
20x122.1257.25
20x152.12510.25
22x102.504.75
22x10.52.504.75
22x122.506.75

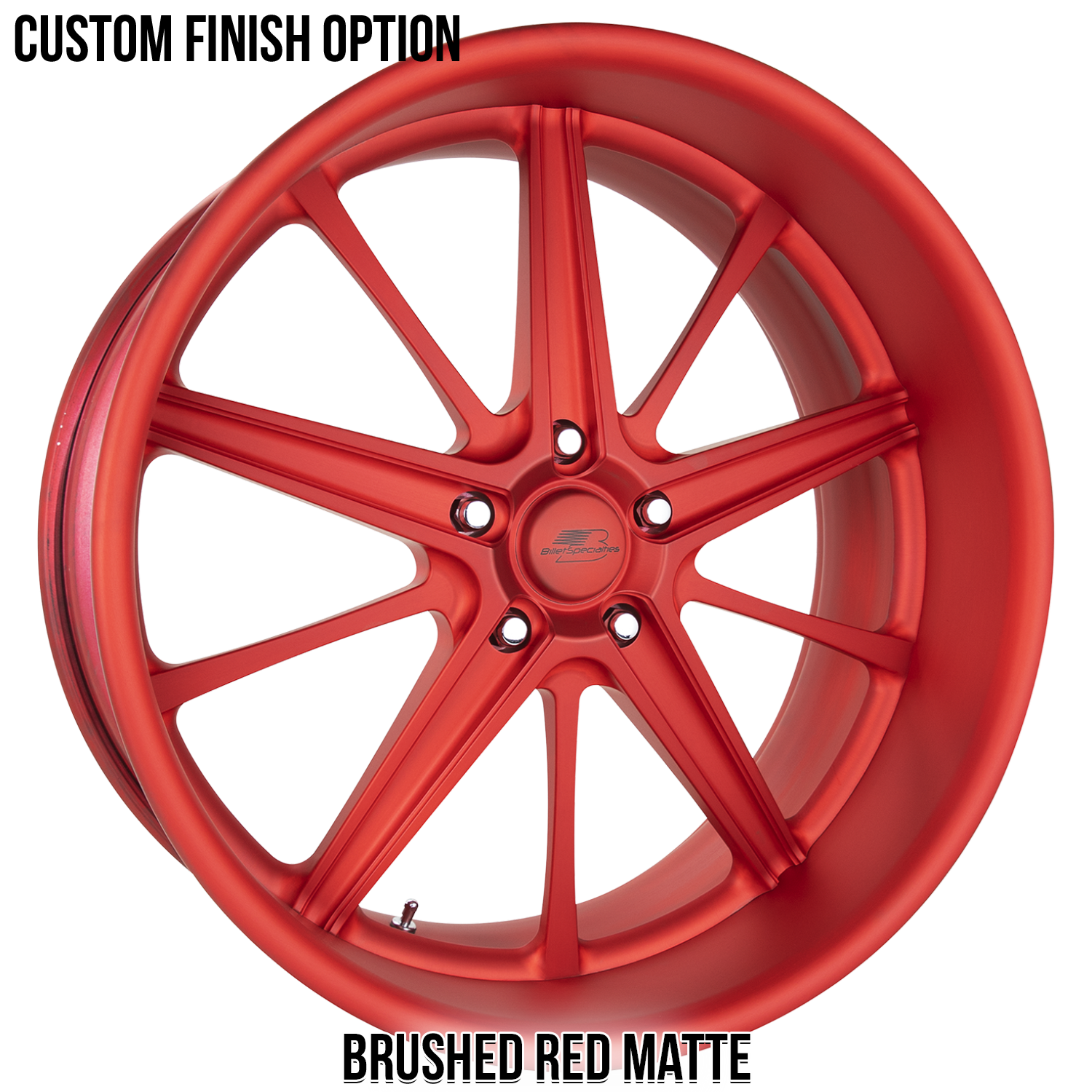

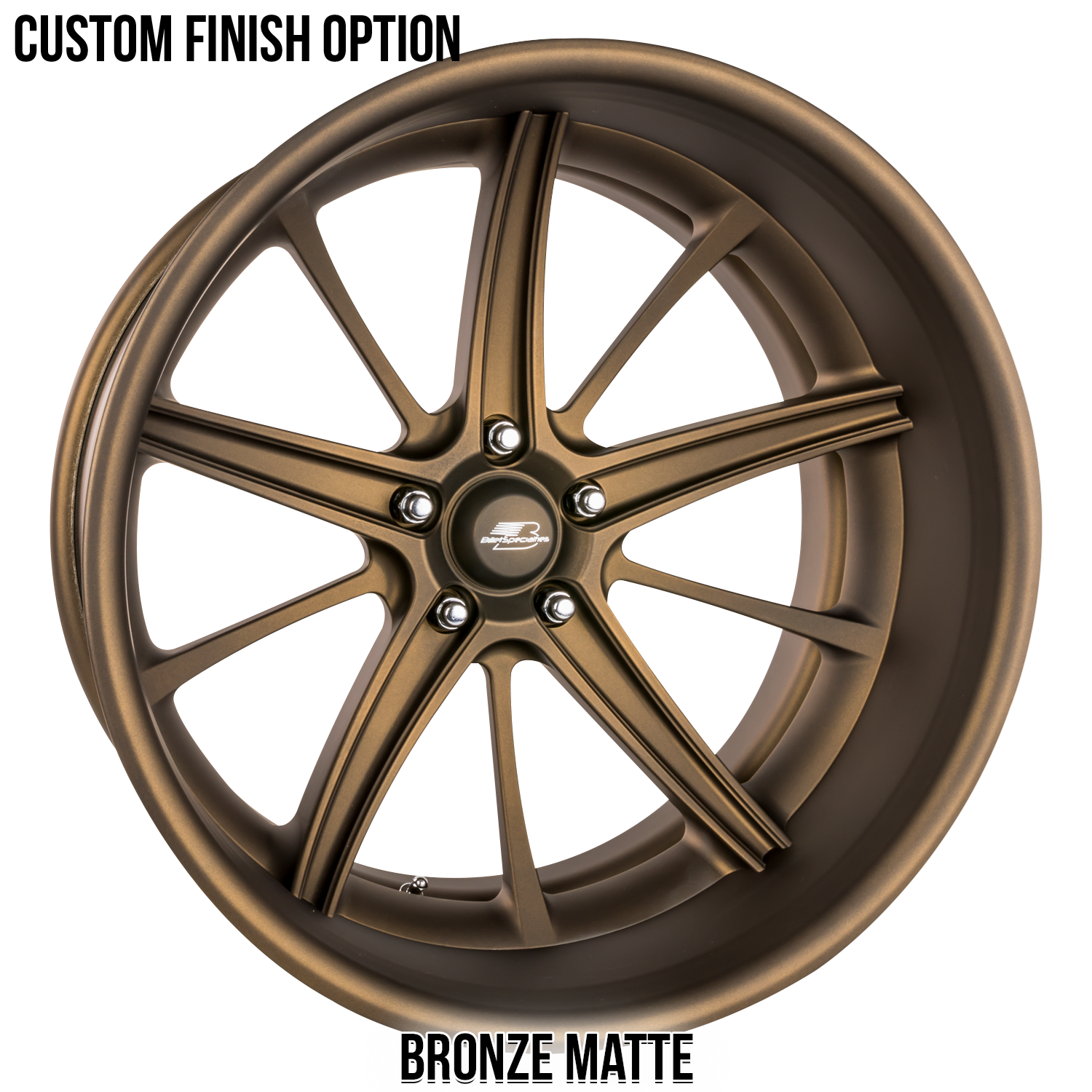

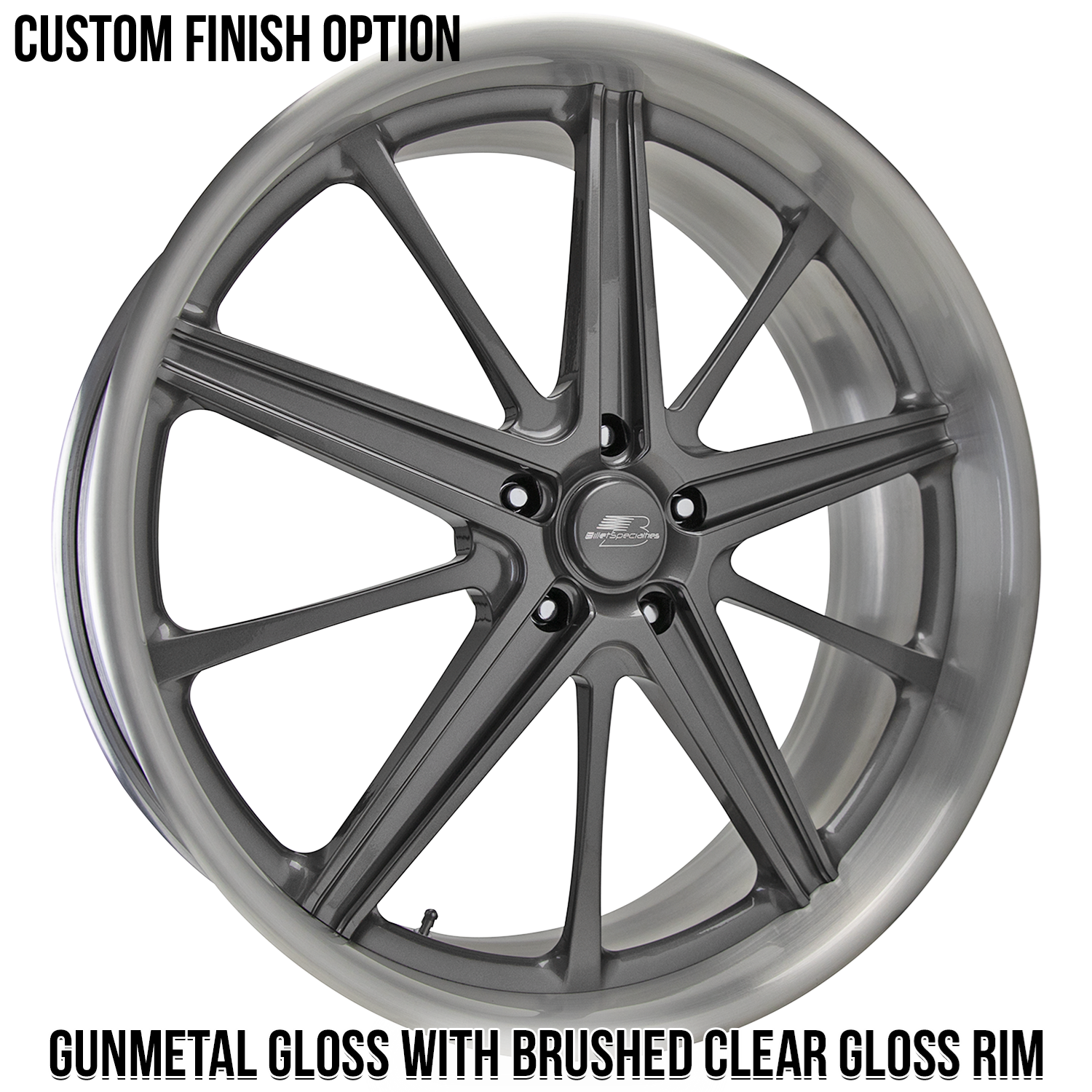

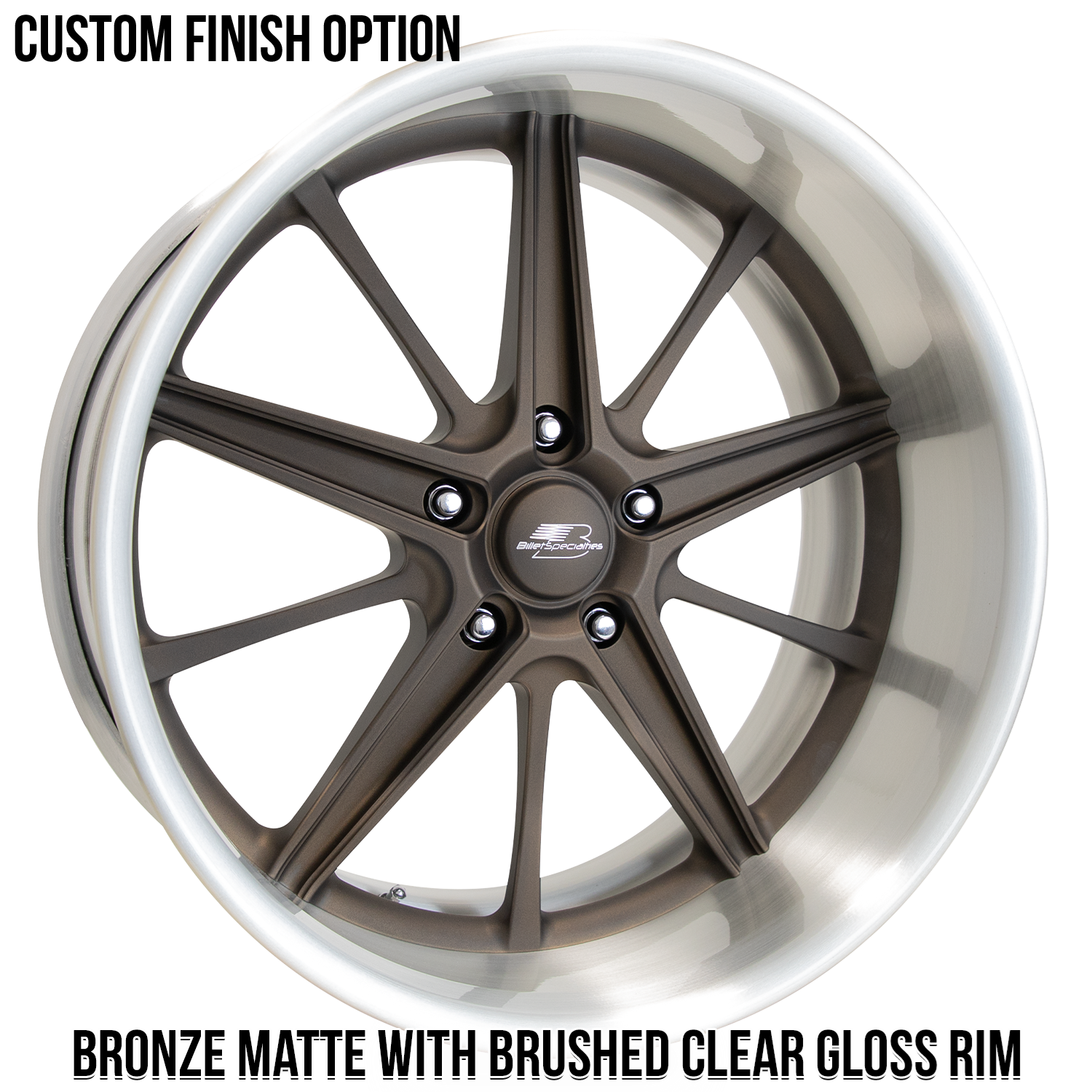

Solid Finishes
Polished Finishes

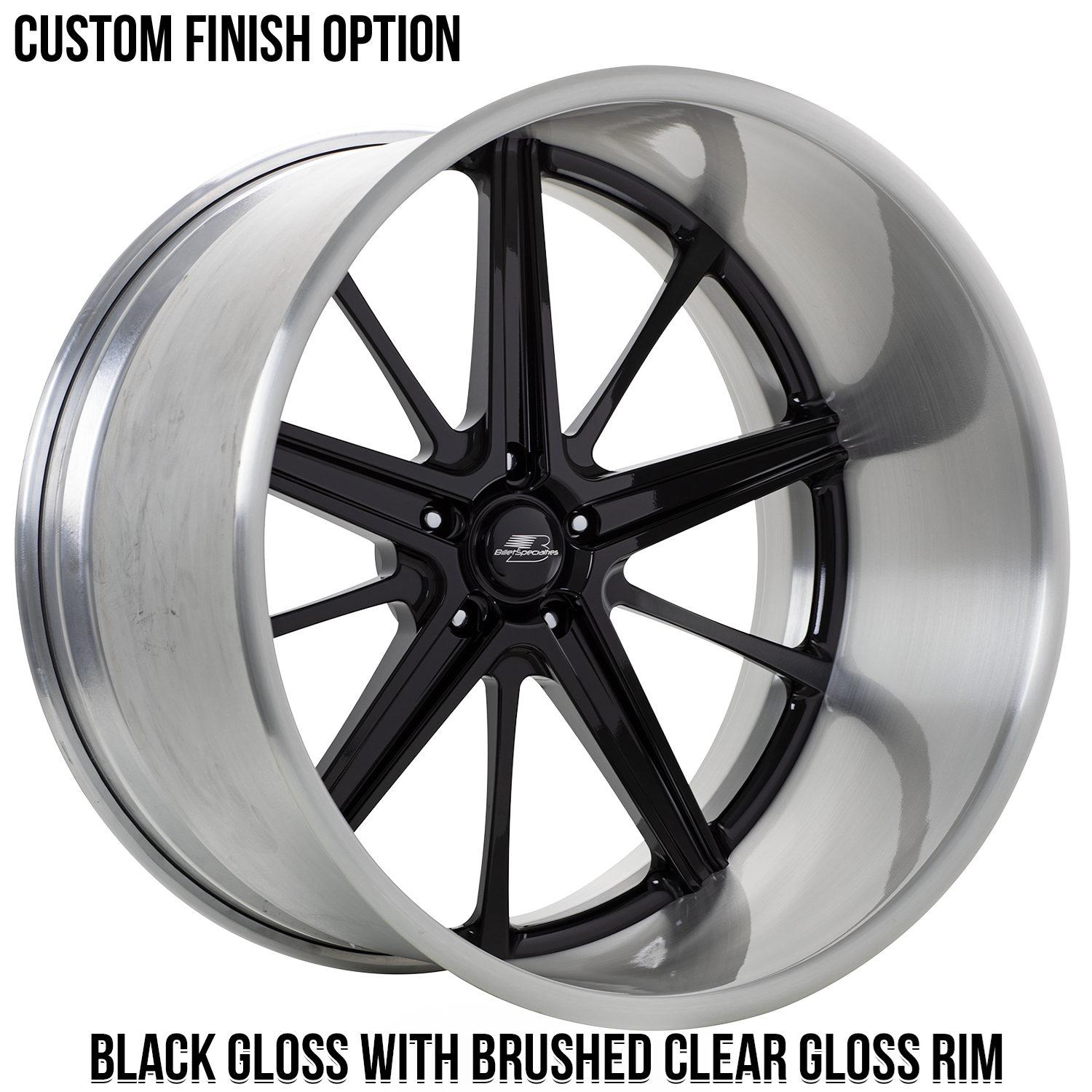

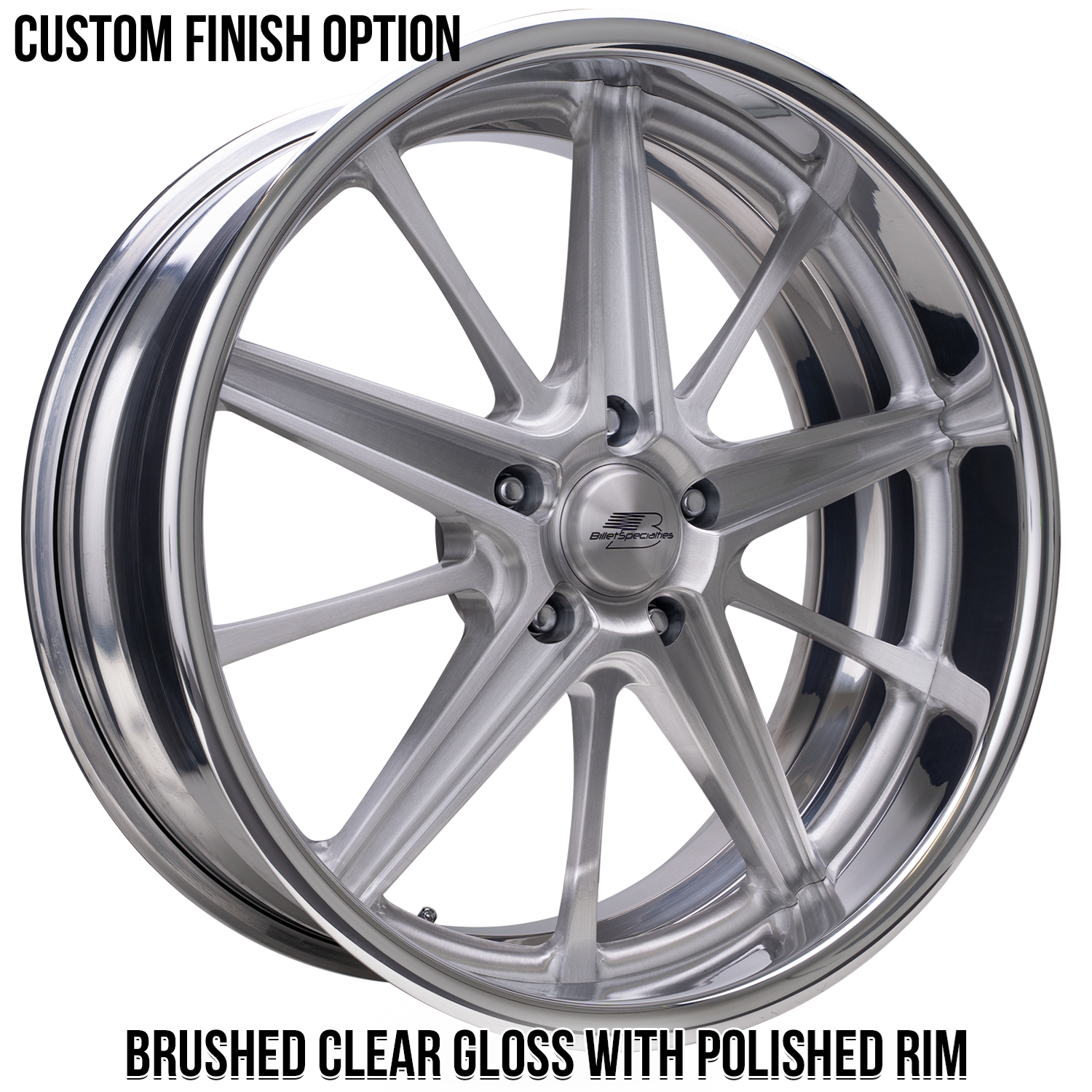

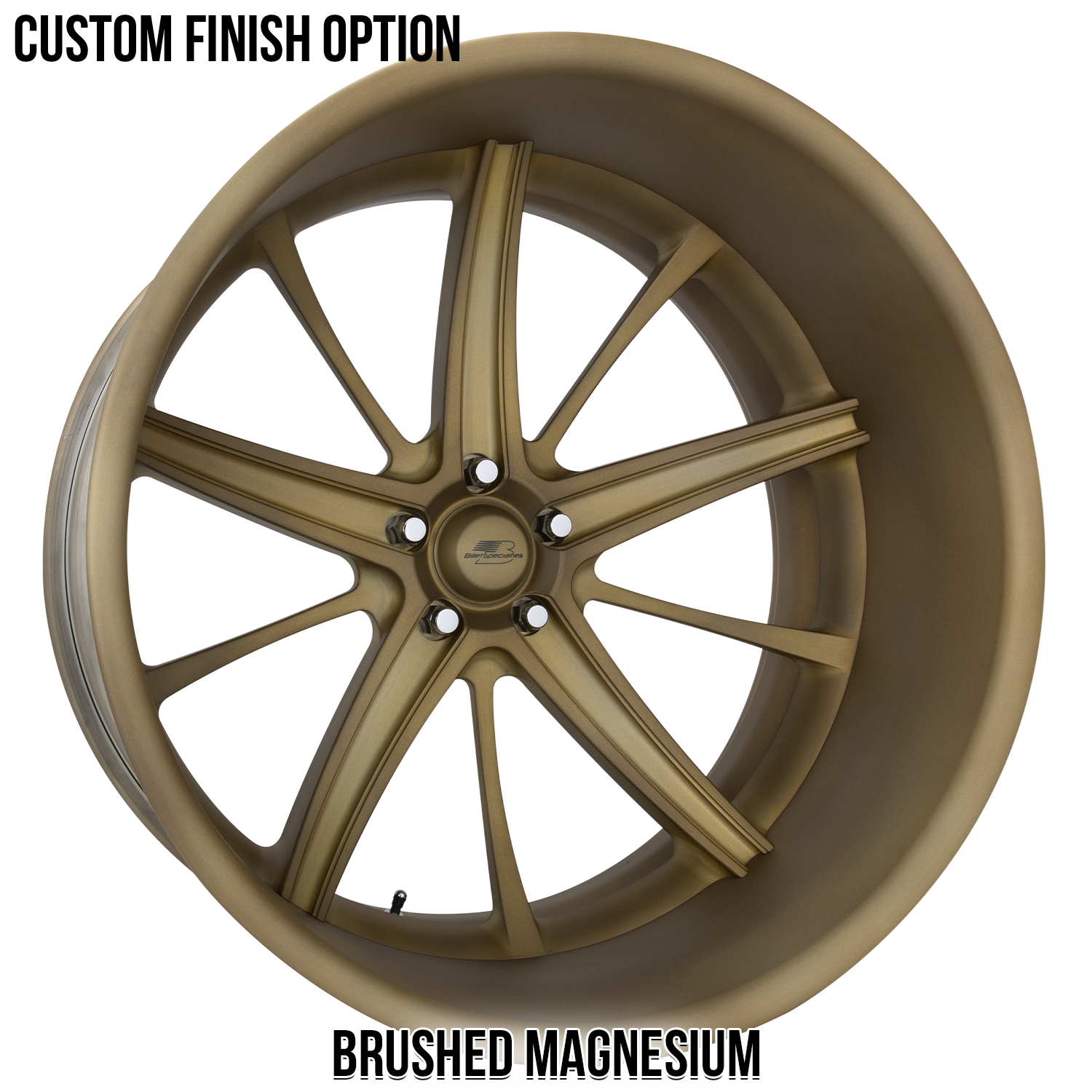

Brushed Transparent Finishes
Polished Transparent Finishes
Brushed/Polished Transparent Finishes
Polished/Brushed Transparent Finishes

20_EDR_-_Cross_Section_Alt_Backspace_-_Black

The center has an extreme concave profile

Can only be used in the rear in widths of 10" and greater and only available in 19", 20" & 22" diameters

Minimum backspace recommended.
