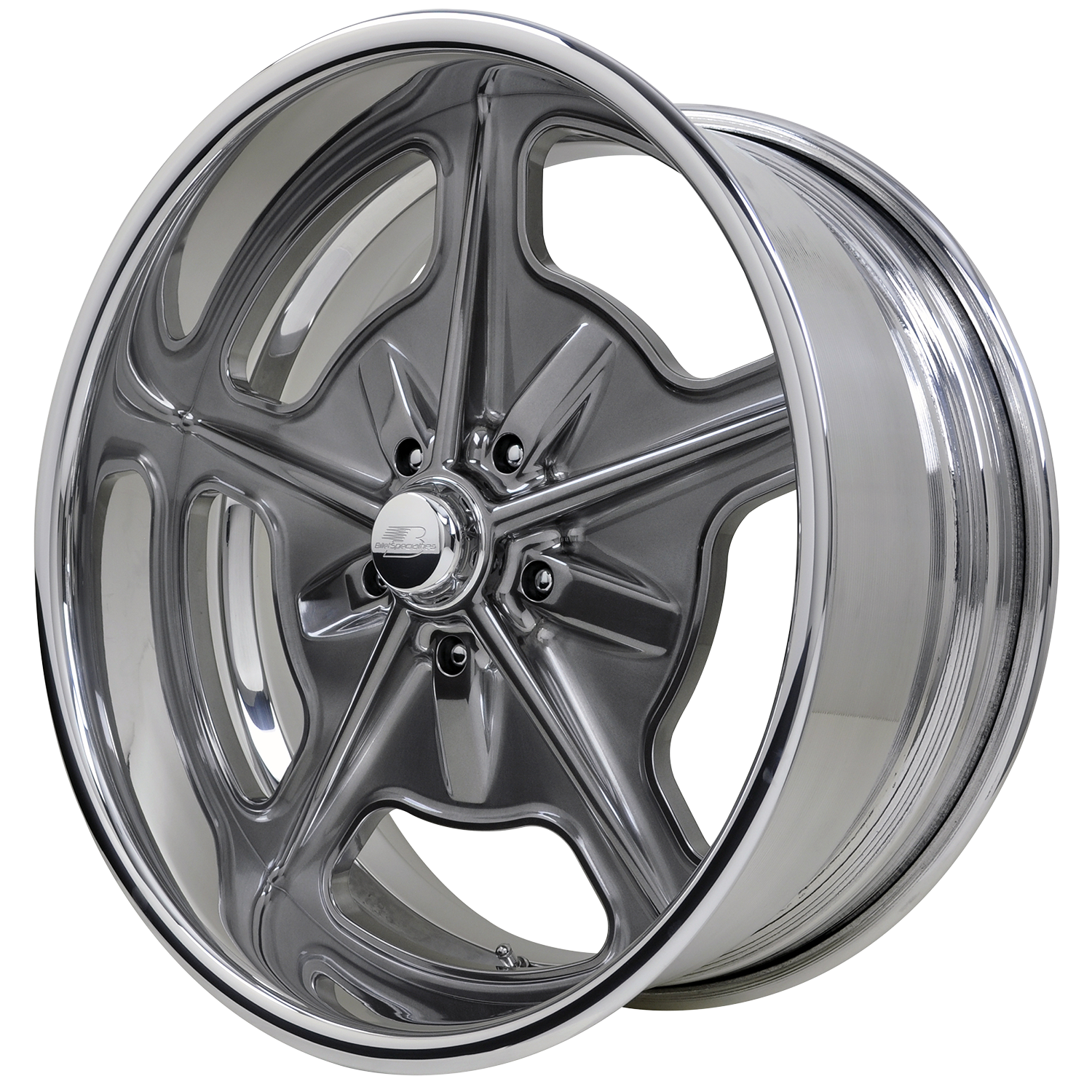

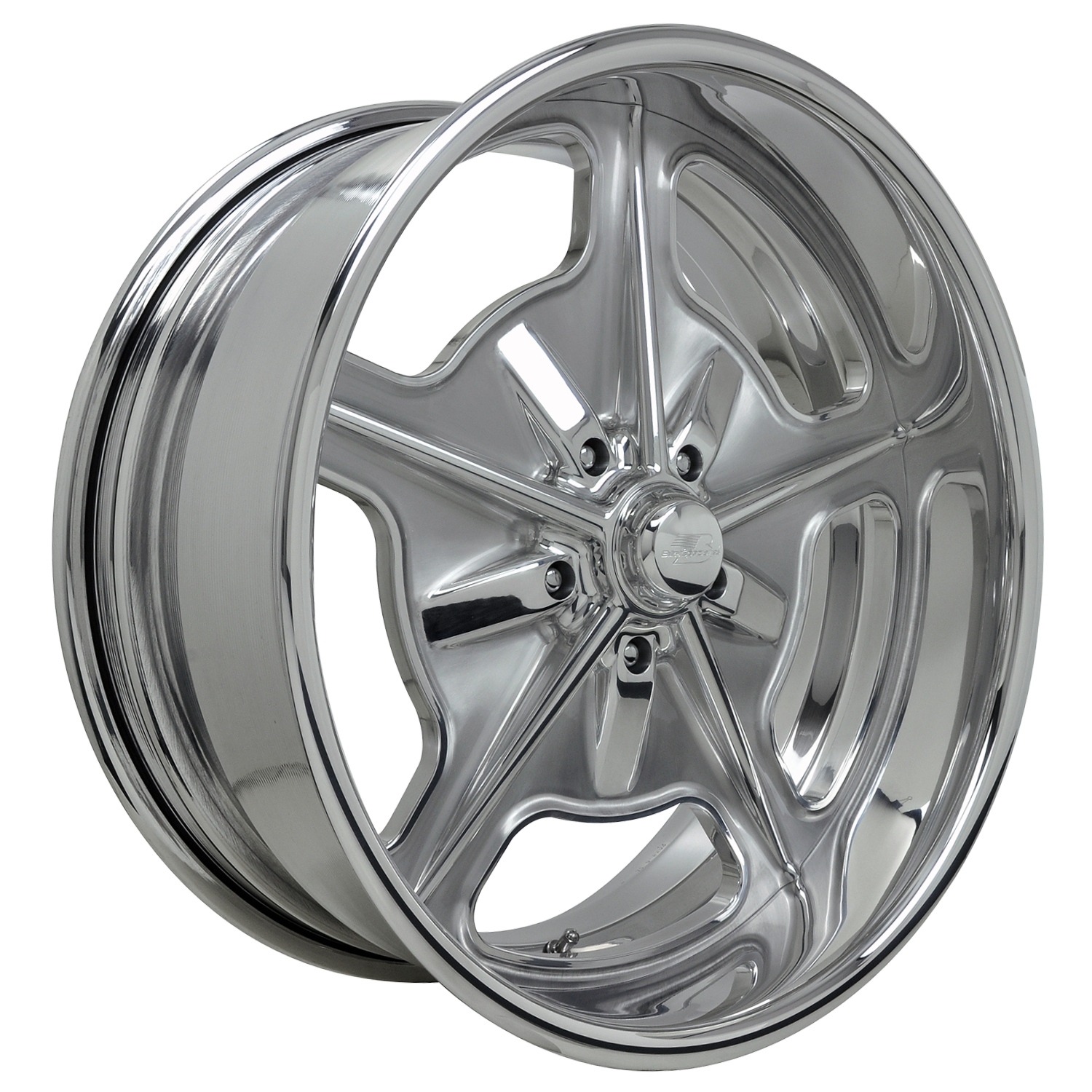

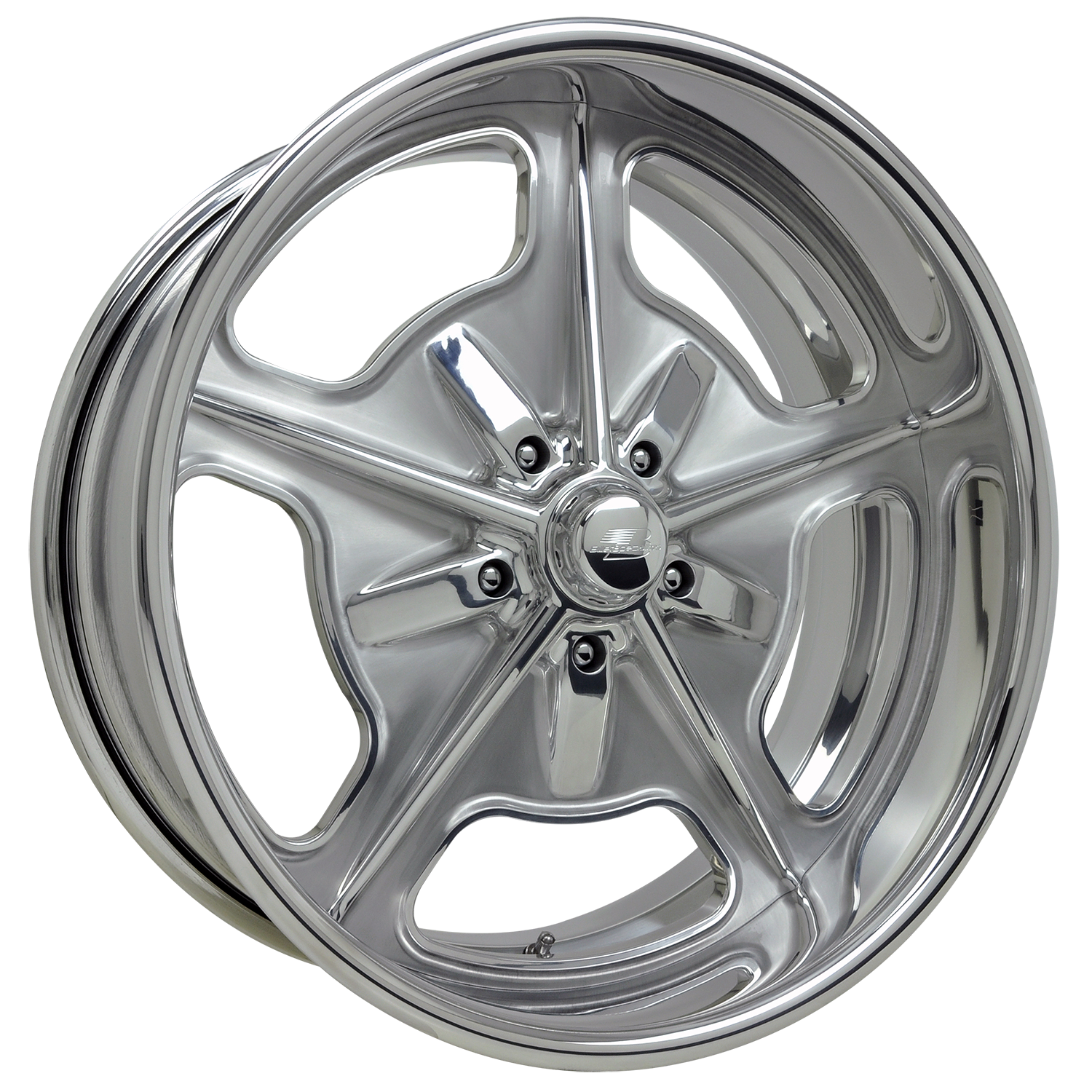

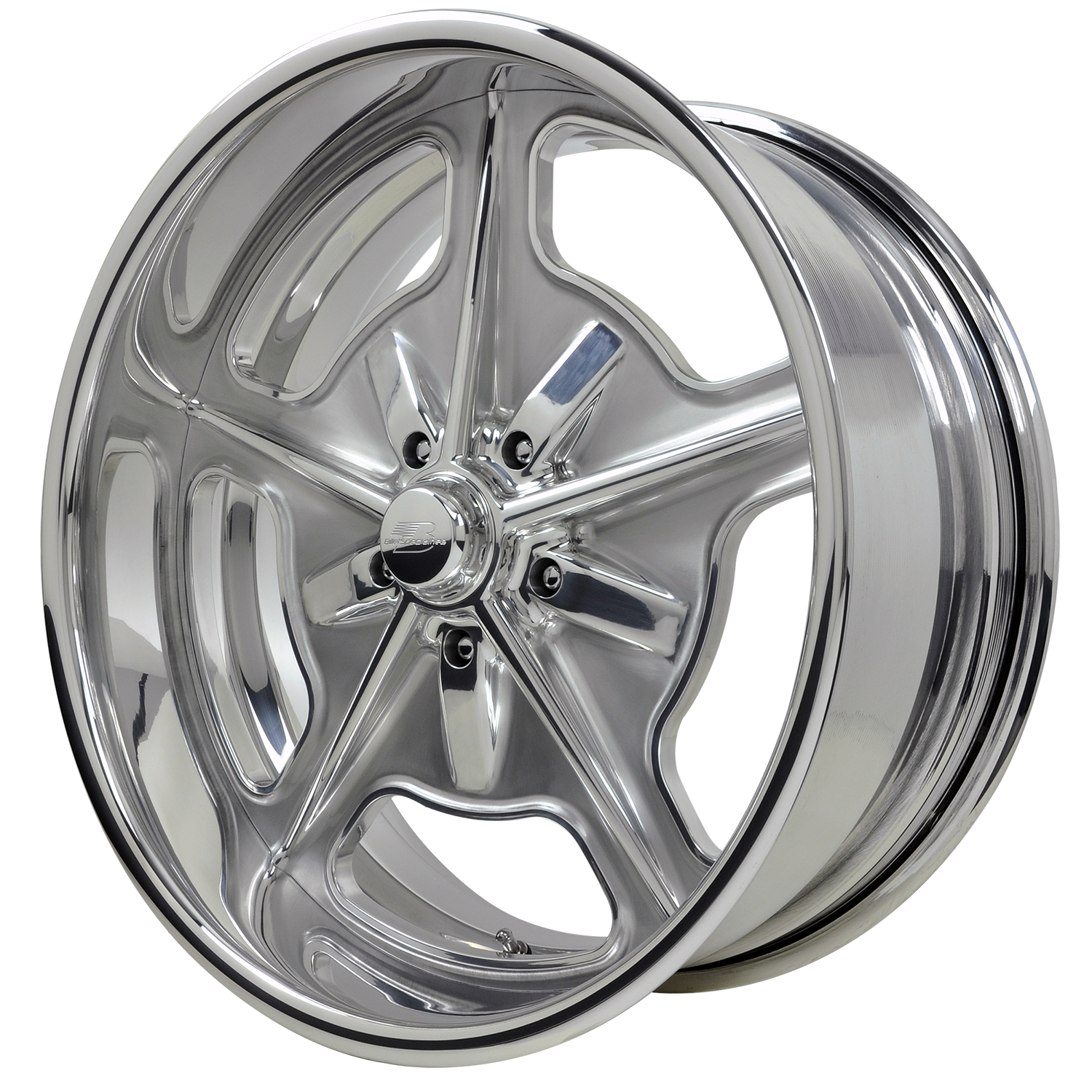

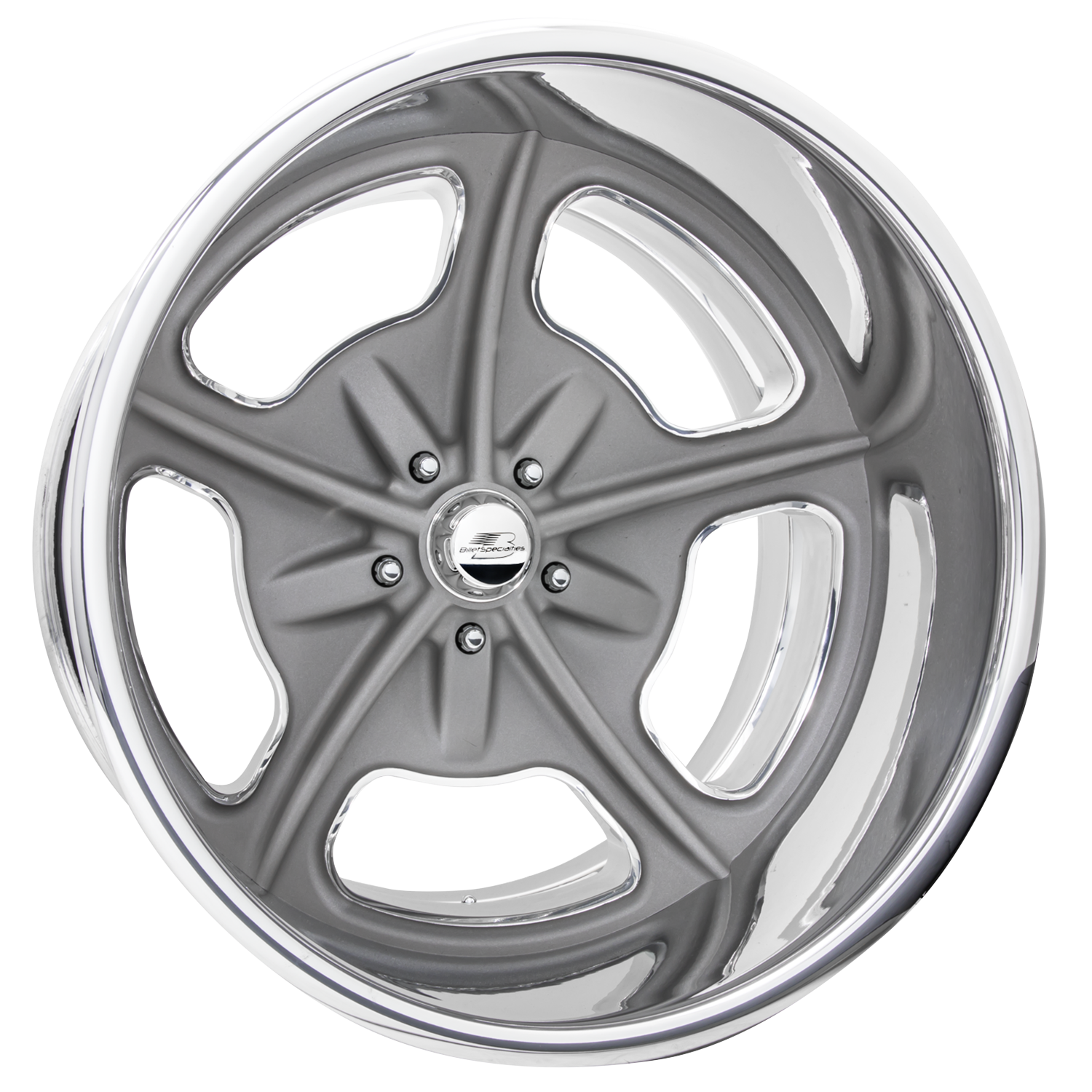

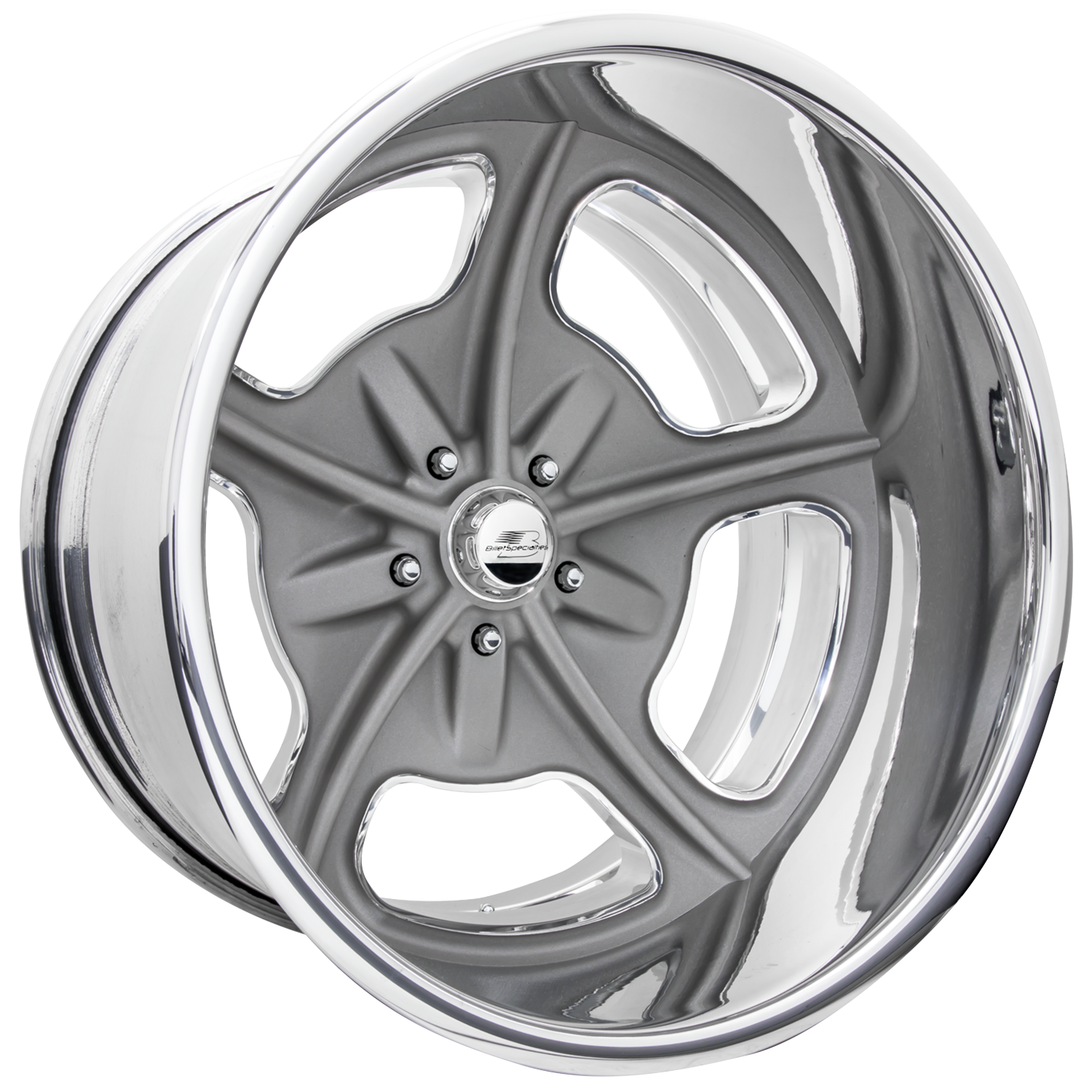

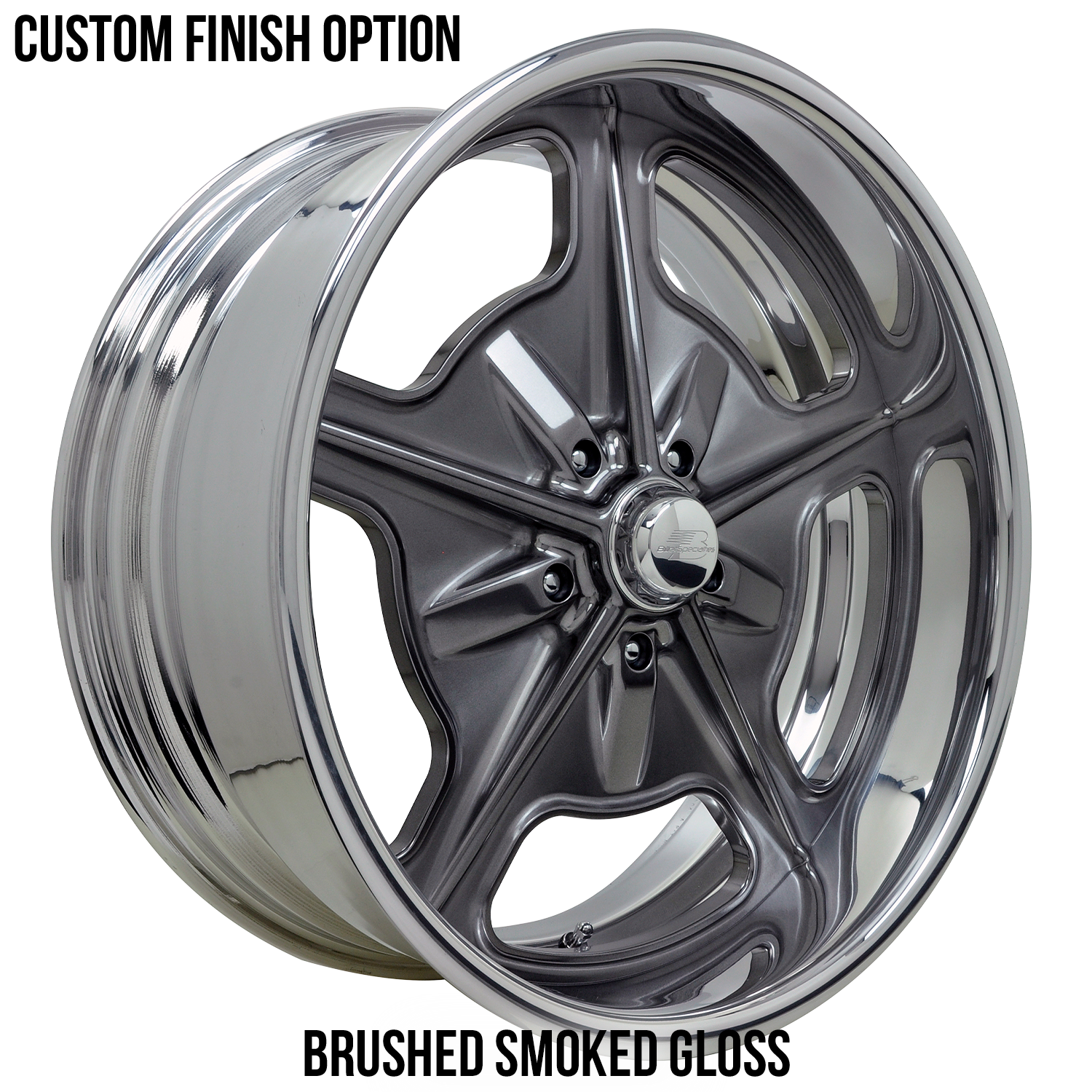

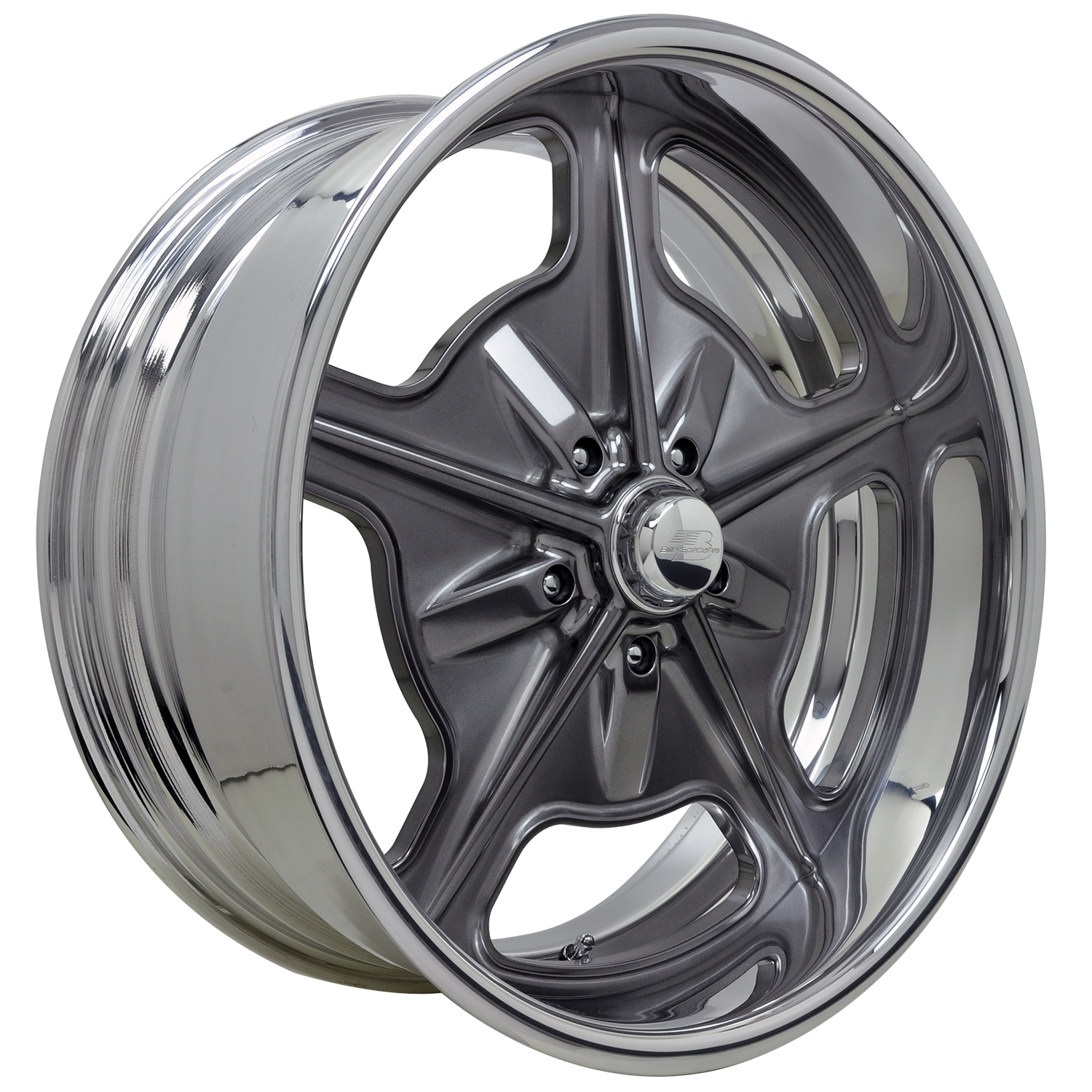

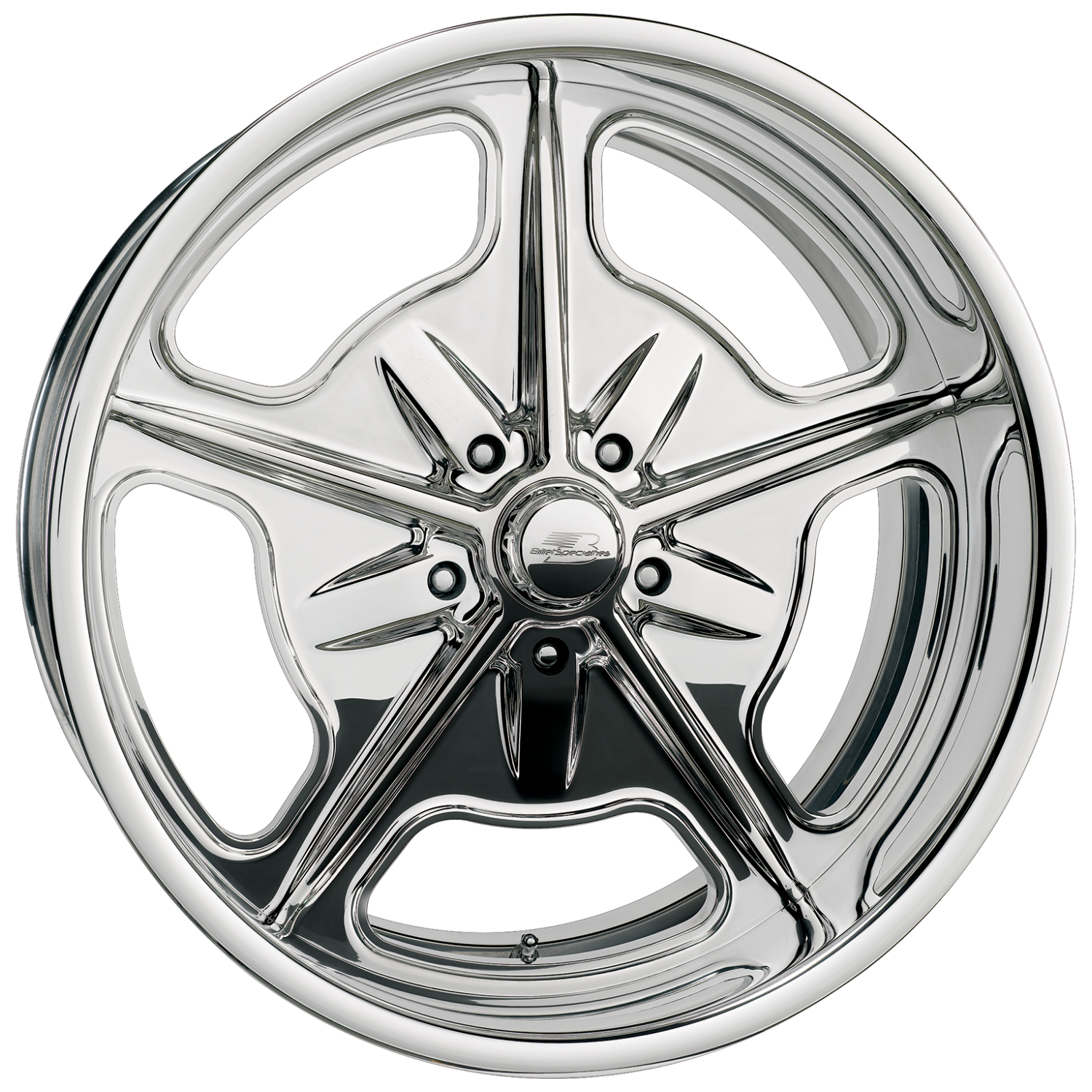

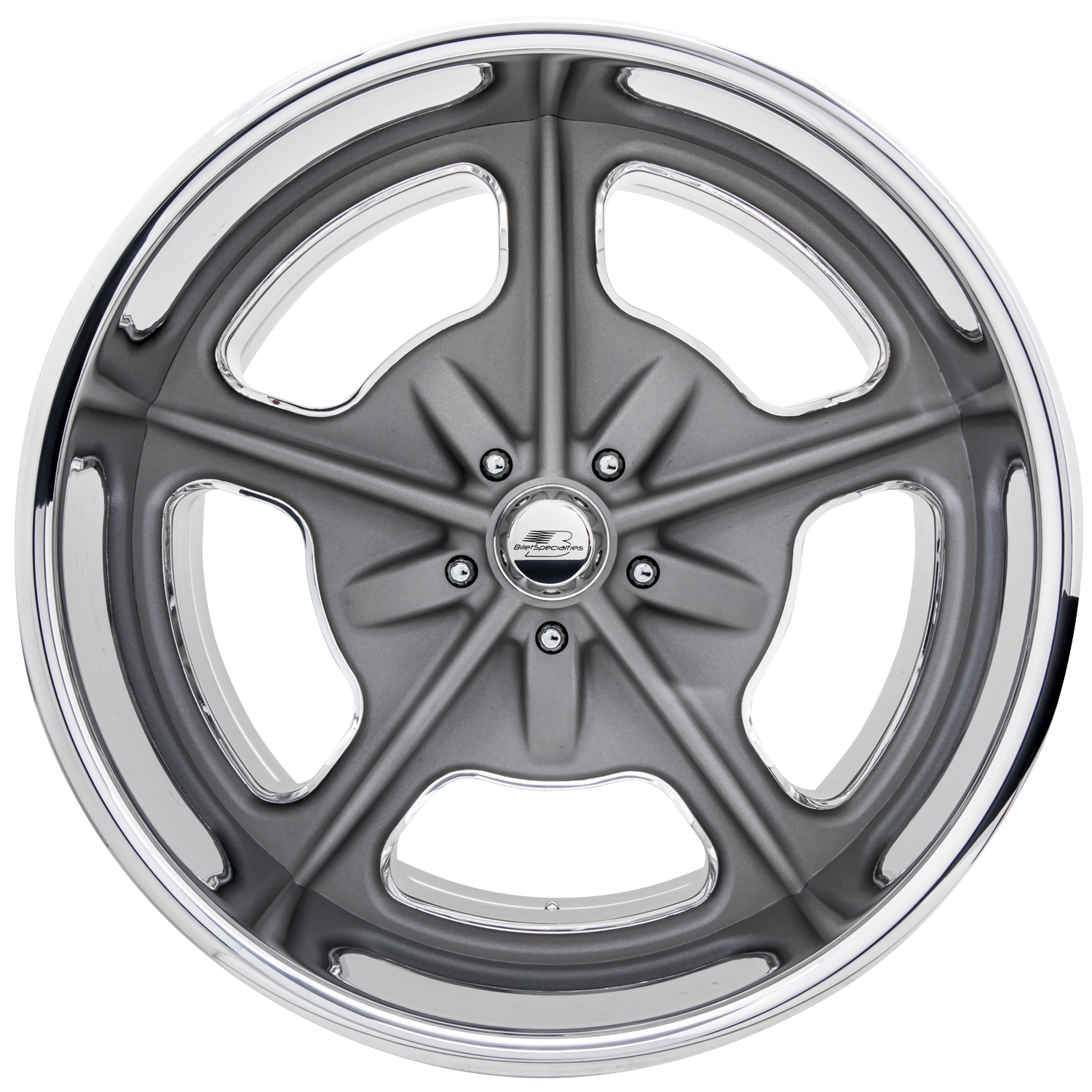

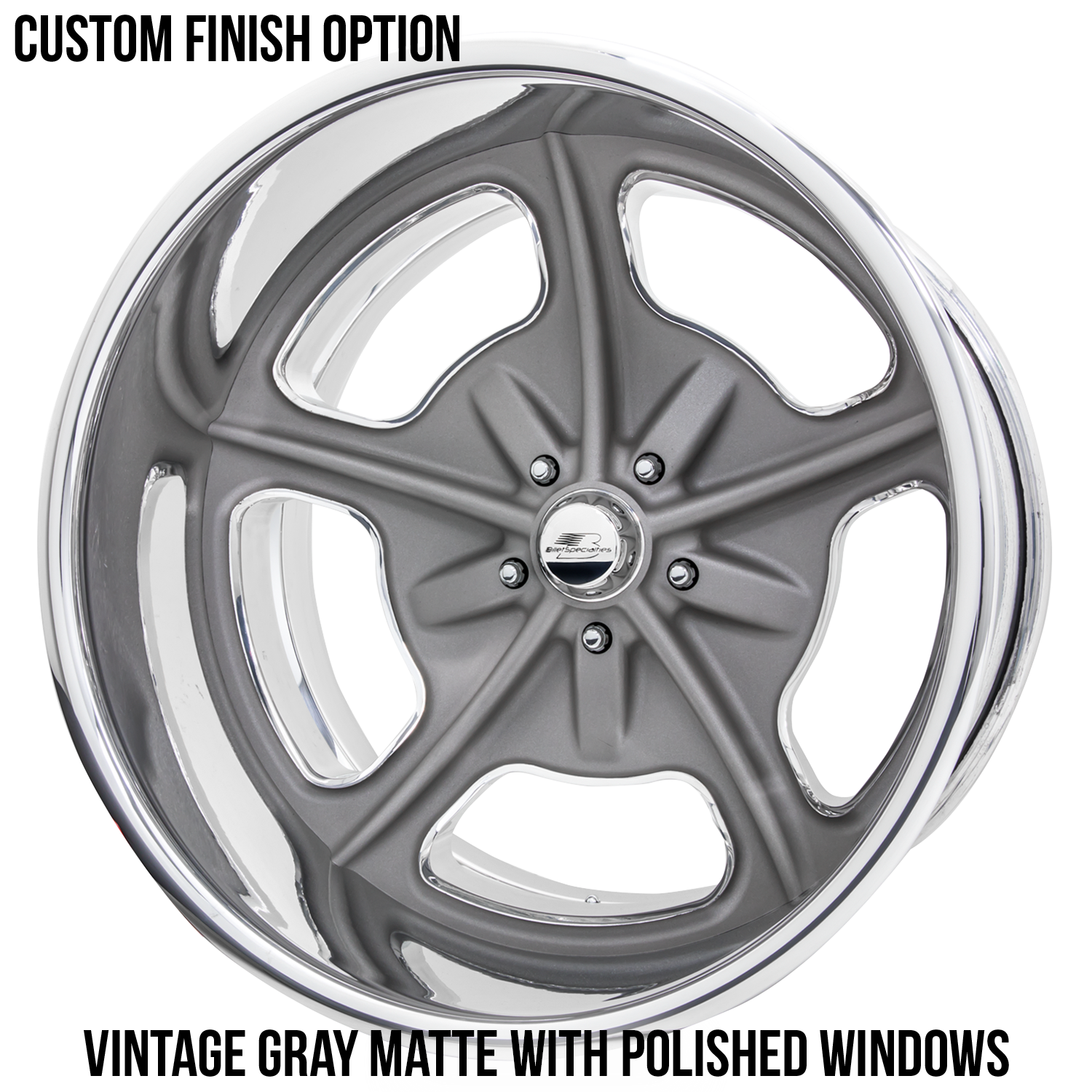

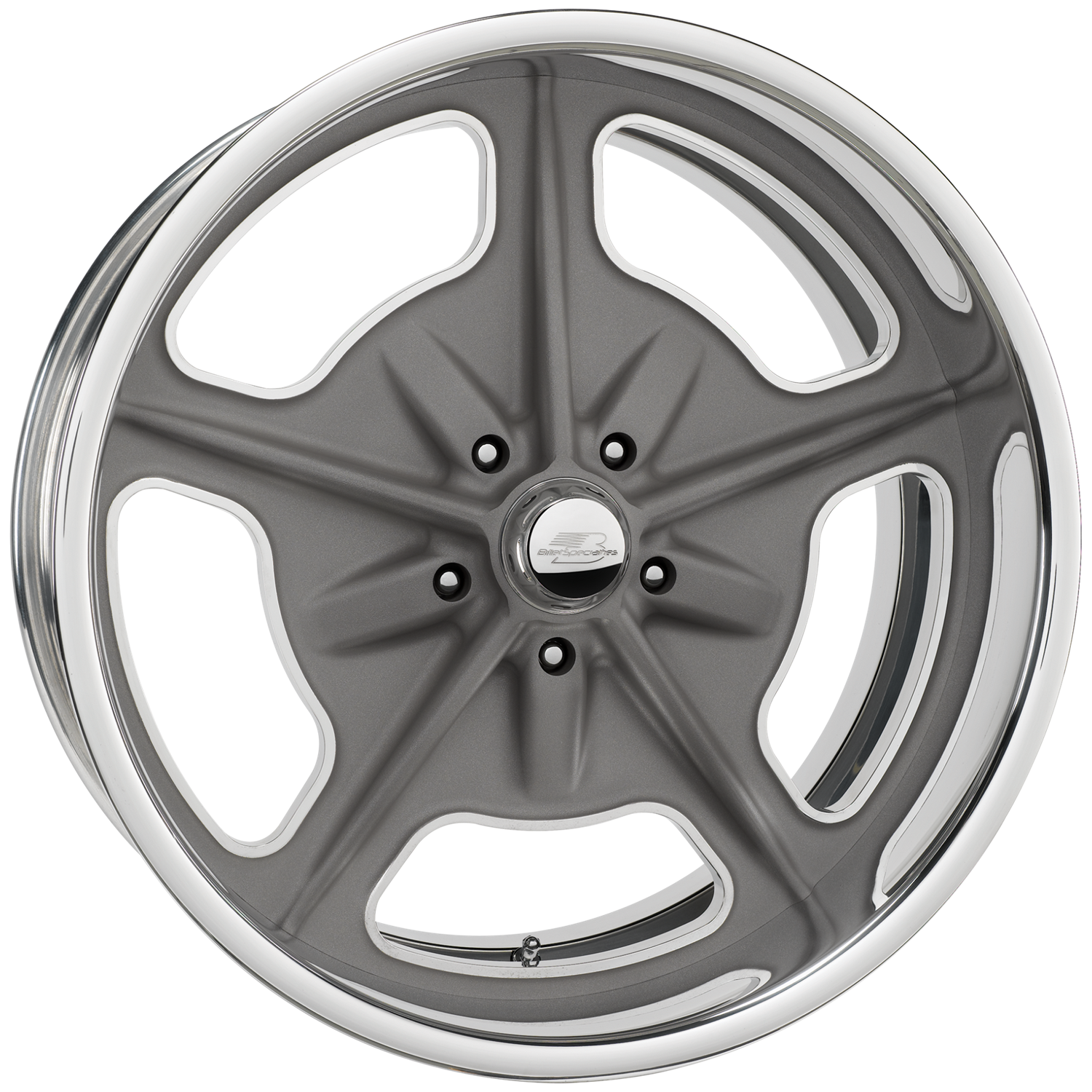

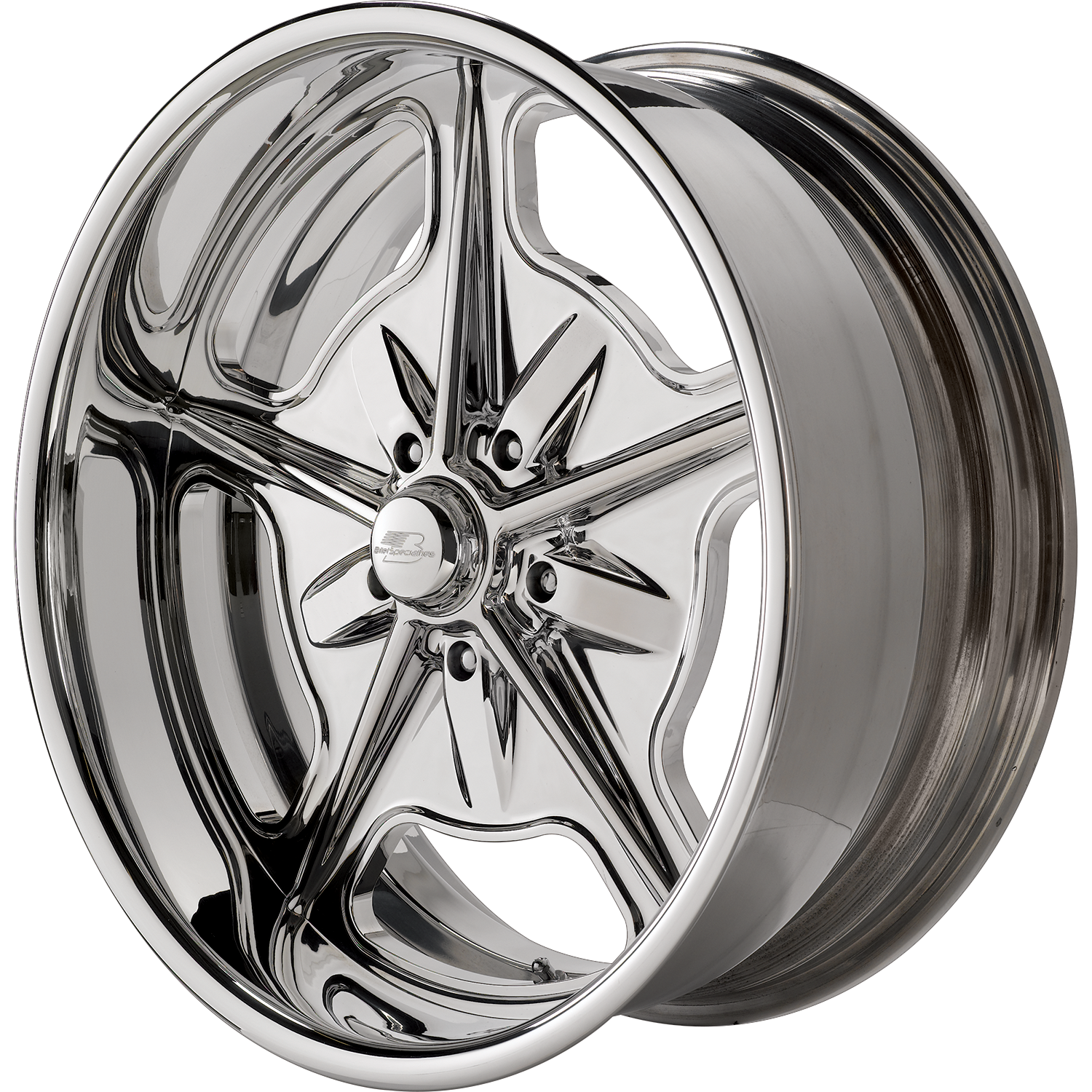

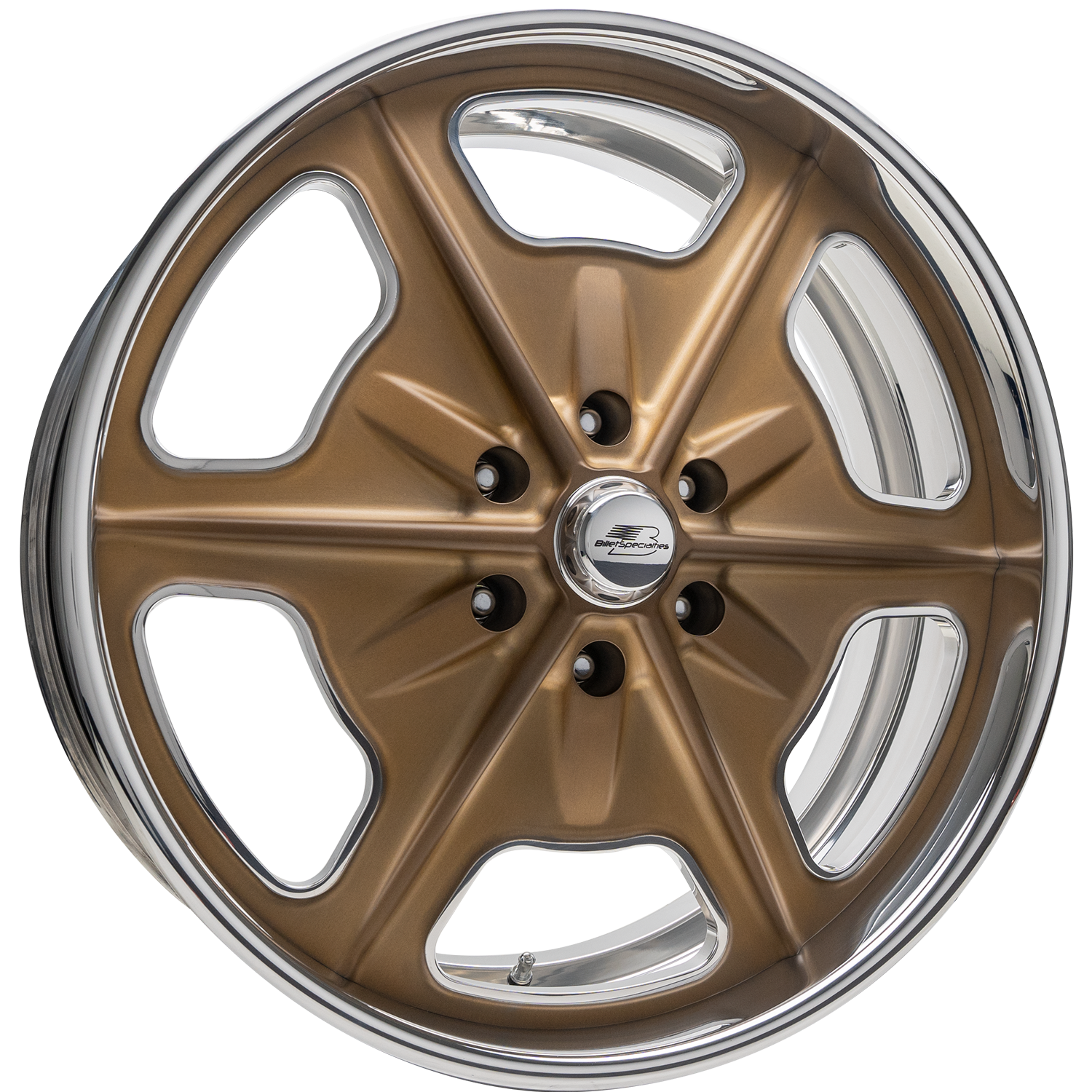

Bonneville

VS35
Select Your Wheel Size
Select Your Finish
Select Your Forging Profile
Description

 Each wheel is precision machined with multi-axis technology and hand-finished to an unrivaled polished or powder-coated finish. 17,18, 20, 22, 24 & 26 available with extra caliper clearance up to 1-3/4".








7/8" Caliper Clearance

1-1/4"  Caliper Clearance

    1-1/2" Caliper Clearance

  1-3/4" Caliper Clearance

Backspace
 Backspace Backspace Backspace
SizeMin BackspaceMax Backspace Min BackspaceMax Backspace Min BackspaceMax Backspace Min BackspaceMax Backspace
17X74.005.50 N/AN/A N/AN/A N/AN/A
17X84.006.50 N/AN/A N/AN/A N/AN/A
17X104.008.50 N/AN/A N/AN/A N/AN/A
18x73.8755.50 3.505.125 3.254.875 3.3754.625
18x83.8756.50 3.506.125 3.255.875 3.3755.625
18x93.8757.50 3.507.125 3.256.875 3.3756.625
18x103.8758.50 3.508.125 3.257.875 3.3757.625
18x113.8759.50 3.509.125 3.258.875 3.3757.625
18x123.87510.50 3.5010.125 3.259.875 3.3759.625
19x83.8756.50 3.506.125 3.255.875 3.005.625
19x93.8757.50 3.507.125 3.256.875 3.006.625
19x103.8758.50 3.508.125 3.257.875 3.007.625
19x113.8759.50 3.509.125 3.258.875 3.008.625
19x123.87510.50 3.5010.125 3.259.875 3.009.625
20x8.53.8757.00 3.506.625 3.256.375 3..006.125
20x93.8757.50 3.507.125 3.256.875 3.006.625
20x103.8758.50 3.508.125 3.257.875 3.007.625
20x10.53.8759.00 3.508.625 3.258.375 3.008.125
20x123.87510.50 3.5010.125 3.259.875 3.009.625
20x153.87513.50 3.5013.125 3.2512.875 3.0012.625
22x8.54.1257.25 3.756.875 3.506.625 3.3755.00
22x94.1257.75 3.757.375 3.507.125 3.3755.00
22x104.1258.75 3.758.375 3.508.125 3.3756.375
22x10.54.1259.25 3.758.875 3.508.625 3.3756.375
22x124.12510.75 3.7510.375 3.5010.125 3.3756.875
24X9N/AN/A 3.8757.125 3.6256.875 3.3756.625
24X10N/AN/A 3.8758.125 3.6257.875 3.3757.625
24X12N/AN/A 3.87510.125 3.6259.875 3.3759.625
24X14N/AN/A 3.87512.125 3.62511.875 3.37511.625
24X15N/AN/A 3.87513.125 3.62512.875 3.37512.625
26X9N/AN/A 3.8757.125 3.6256.875 3.3756.625
26X10N/AN/A 3.8758.125 3.6257.875 3.3757.625
26X12N/AN/A 3.87510.125 3.6259.875 3.3759.625
26X14N/AN/A 3.87512.125 3.62511.875 3.37511.625
26X16N/AN/A 4.12514.125 3.87513.875 3.62513.625






Finish Options

Description
Center(ea)
Rim(ea)
Solid ColorSTD$ 100.00
PolishedSTDSTD

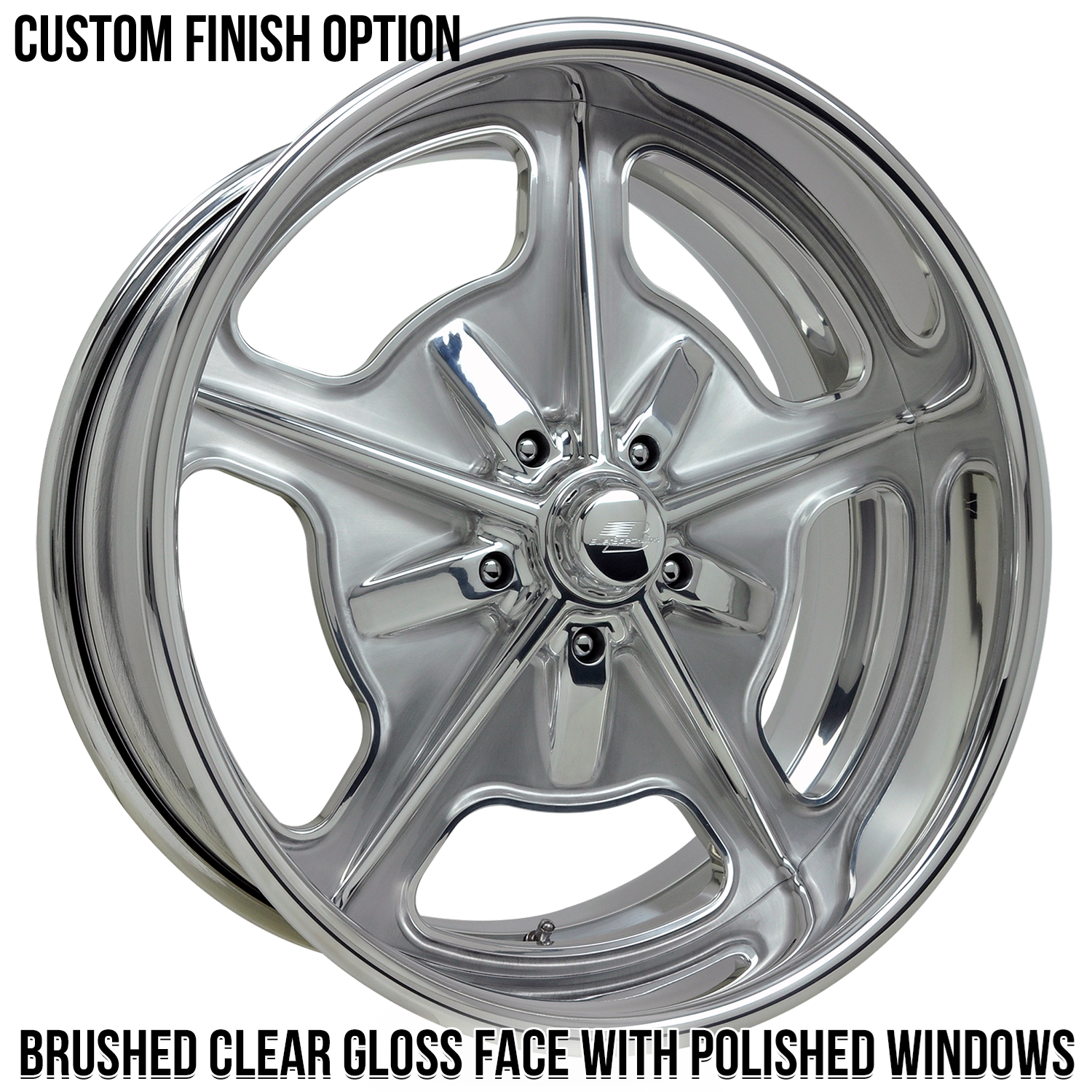

Brushed with Clear$ 100.00$ 125.00
Polished with Clear$ 100.00N/A
Polished Windows with Solid Color$ 105.00N/A
Brushed with Transparent Color$ 125.00$ 125.00
Polished with Transparent Color$ 125.00$ 125.00
Polished Windows with Transparent Color$ 125.00N/A
Brushed/Polished with Transparent Color$ 150.00N/A
Available powder coat options listed below.
